5925-01-641-9448
Circuit Breaker
5925016419448 016419448 MIL-PRF-55629/21 M55629C21NMNM
A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER. View more Circuit Breaker
May 2023
3
Marketplace 5925-01-641-9448
Request a Quotation from participating marketplace vendors
Related Documents 5925-01-641-9448 5+ Documents (More...)
United States (US) 4. 5925-01-641-9448 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5925-01-641-9448 RQST NE Updated Every Day 5925-01-641-9448 RQST
Circuit Breaker 5925016419448 016419448 $1 a day Upgrade your Account Upgrade 5925-01-641-9448Circuit
Breaker5925016419448 016419448 MIL-PRF-55629/21 Documents 5925-01-641-9448 5+ Documents ( More... https
Circuit Breaker 5925016419448 016419448 $1 a day Upgrade your Account Upgrade 5925-01-641-9448Circuit
Breaker5925016419448 016419448 MIL-PRF-55629/21 www.nsnlookup.com /fsg-59/fsc-5925/us 5925-01-546-7914
MIL-PRF-55629/21 CIRCUITZBREAKERZZZZ 67 EA NS Request Quotation Updated Every Day 5925-01-485-1442
https//www.nsnlookup.com /fsg-59/fsc-5925/us 5925-01-641-9448 Circuit Breaker 5925016419448 016419448
Breaker5925016419448 016419448 MIL-PRF-55629/21 day Upgrade your Account Upgrade 5925-01-550-42062.5
MIL-PRF-55629/21 CIRCUIT BREAKER 67 EA NS Request Quotation Updated Every Day 5925-01-414-4671 RQST
Restrictions 5925-01-641-9448
5925-01-641-9448 is a Circuit Breaker that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5925-01-641-9448
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5925-01-641-9448
- US Navy (N9BN)
- Effective Date:
- 1 Feb 2015
- Supplementary Collaborators:
- HD
Approved Sources 5925-01-641-9448
- Part Number
- Manufacturer
- Status
- M55629C21NMNM
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-PRF-55629/21
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5925-01-641-9448
- Characteristic
- Specifications
- FIIG
- Specifications
- A030A0

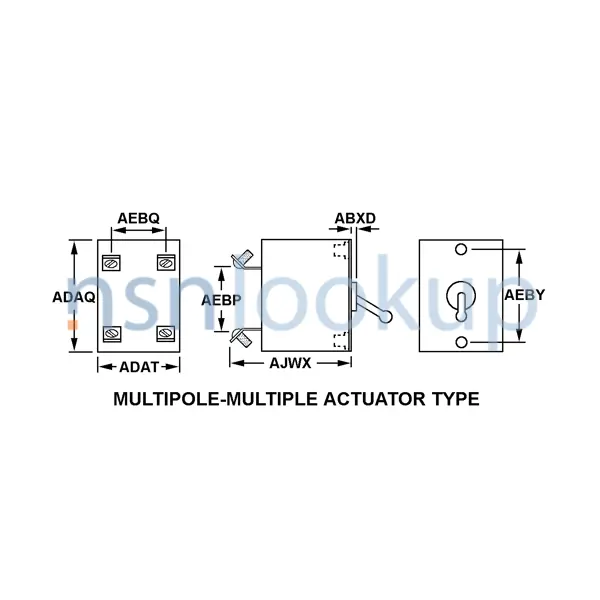

- Body Length [ADAQ]
- 51.59 Millimeters Maximum
- Body Style [AAQL]
- Multipole-Multiple Actuator Type
- Body Width [ADAT]
- 38.48 Millimeters Maximum
- Bushing Length [ABXD]
- 16.66 Millimeters Maximum
- Case Material [ADTV]
- Plastic
- Center To Center Distance Between Terminals Parallel To Length [AEBP]
- 39.65 Millimeters Maximum
- Center To Center Distance Between Terminals Parallel To Width [AEBQ]
- 19.43 Millimeters Maximum
- Circuit Protection Type [CPRH]
- Overcurrent All Locations
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Length [AEBY]
- 39.65 Millimeters Maximum
- Frequency In Hertz [FREQ]
- 60.0 All Locations
- Maximum Continuous Load Current Rating Per Pole [CPLM]
- 10.0 Amperes Ac All Locations
- Mounting Facility Type And Quantity [AXHR]
- 1 Threaded Bushing W/Panel Seal
- Mounting Surface To Terminal End Distance [AJWX]
- 56.69 Millimeters Maximum
- Nominal Thread Size [CQJX]
- 4.0 Inches
- Main Contact Tripping Mechanism Type [CPRR]
- Trip Free
- Pole Quantity [AKPX]
- 2
- Reset Method [CPRQ]
- Manual
- Operating Voltage Type And Rating Per Pole In Volts [CPRF]
- 240.0 Ac All Locations
- Thread Series Designator [THSD]
- Unf
- Trip Release Characteristic [CPRL]
- Instantaneous All Locations
- Trip Release Method [CPRJ]
- Magnetic All Locations
- Terminal Type And Quantity [TTQY]
- 4 Tab W/Screw
