5925-01-483-1592
Circuit Breaker
5925014831592 014831592 EA2-B0-24-6602DA-DC 60002-018
A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER. View more Circuit Breaker
May 2023
2
Marketplace 5925-01-483-1592
Request a Quotation from participating marketplace vendors
Related Documents 5925-01-483-1592 2+ Documents (More...)
United States (US) 4. 5925-01-483-1592 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 5925-01-483-1592
Circuit Breaker 5925014831592 014831592 Datasheet 5925-01-483-1592 CharacteristicSpecificationsFIIGA030A0End
Restrictions 5925-01-483-1592
5925-01-483-1592 is a Circuit Breaker that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5925-01-483-1592
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5925-01-483-1592
- US Air Force (FGGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FGTX
- Canada (ZC01)
- Effective Date:
- 1 Apr 2015
Approved Sources 5925-01-483-1592
- Part Number
- Manufacturer
- Status
- EA2-B0-24-6602DA-DC
- Manufacturer
- 73559 - Carling Technologies, Inc (Active)
- Primary Buy
- Primary Buy
- 60002-018
- 21439 - Curtiss-Wright Flow Control Service, (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5925-01-483-1592
- Characteristic
- Specifications
- FIIG
- Specifications
- A030A0
- End Item Identification [AGAV]
- 1710-01-421-0080
- Body Height [ADAU]
- 2.610 Inches Nominal
- Body Length [ADAQ]
- 5.125 Inches Nominal
- Body Style [AAQL]

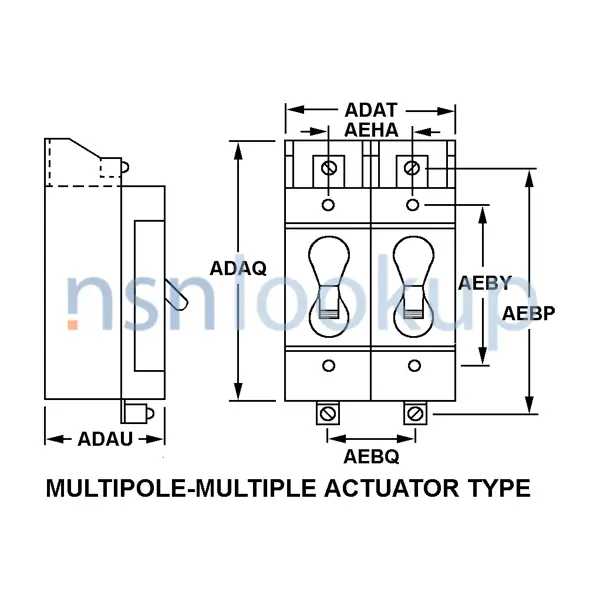

- Multipole-Multiple Actuator Type
- Body Width [ADAT]
- 2.114 Inches Nominal
- Case Material [ADTV]
- Plastic
- Center To Center Distance Between Terminals Parallel To Width [AEBQ]
- 1.026 Inches Nominal
- Center To Center Distance Between Terminals Parallel To Length [AEBP]
- 3.550 Inches Nominal
- Circuit Protection Type [CPRH]
- Overcurrent All Locations
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Length [AEBY]
- 2.750 Inches Nominal
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 2.750 Inches Nominal
- Frequency In Hertz [FREQ]
- 50.0 All Locations Or 60.0 All Locations
- Maximum Continuous Load Current Rating Per Pole [CPLM]
- 100.0 Amperes Ac All Locations
- Operating Voltage Type And Rating Per Pole In Volts [CPRF]
- 240.0 Ac All Locations
- Internal Trip Release Configuration [CPSM]
- Series Trip All Locations
- Main Contact Tripping Mechanism Type [CPRR]
- Trip Free
- Pole Quantity [AKPX]
- 2
- Reset Method [CPRQ]
- Manual
- Special Features [FEAT]
- Coil Rating - Current Coil 60 Amperes
- Trip Release Characteristic [CPRL]
- Time Delay All Locations
- Trip Release Method [CPRJ]
- Magnetic-Hydraulic All Locations
- Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent [CPRN]
- 150.0 All Locations
- Terminal Type And Quantity [TTQY]
- 2 Threaded Stud
