5925-00-556-5666
Circuit Breaker
5925005565666 005565666 7974398 PDA-30 10011377
A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER. View more Circuit Breaker
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
September 2024
September 2024
NATO Update Count
34
34
NATO Data Quality
Marketplace 5925-00-556-5666
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5925-00-556-5666 5+ Documents (More...)
7974398 PDA-30 10011377 A device with means other than fuses for automatically opening the circuit in

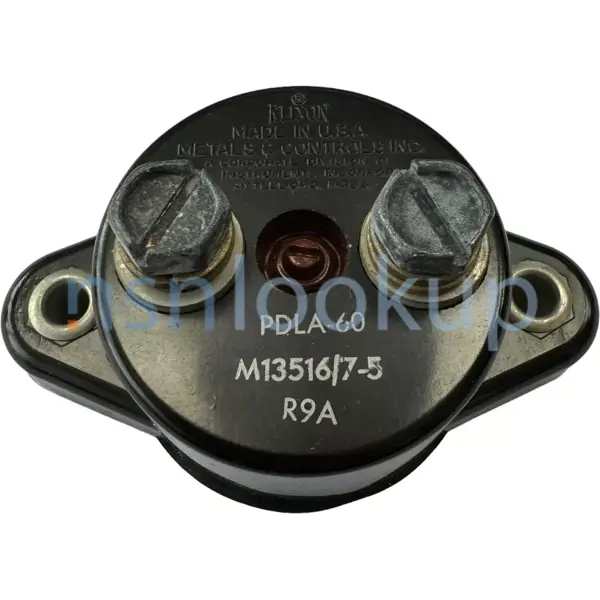

Photo 1/2 NSN 5925-00-556-5666 (Identification) 2/2 - - 1.
PDA-30 CIRCUIT BREAKER 2 EA NS Request Quotation Subscribe to View Vendor Details...
Photo 1/2 NSN 5925-00-556-5666 (Identification) 2/2 - - 1.
PDA-30 CIRCUIT BREAKER 2 EA NS Request Quotation Subscribe to View Vendor Details...
browser . 5925-00-786-6371Circuit Breaker5925007866371 007866371 Cancelled - Replaced by NSN 5925-00-556-5666
Documents 5925-00-786-6371 2+ Documents ( More https//www.nsnlookup.com /fsg-59/fsc-5925/us 5925-00-556-5666
Circuit Breaker 5925005565666 005565666 Request Quotation Subscribe to View Vendor Details... https
Documents 5925-00-786-6371 2+ Documents ( More https//www.nsnlookup.com /fsg-59/fsc-5925/us 5925-00-556-5666
Circuit Breaker 5925005565666 005565666 Request Quotation Subscribe to View Vendor Details... https
Documents 5925-00-615-8837 2+ Documents ( More https//www.nsnlookup.com /fsg-59/fsc-5925/us 5925-00-556-5666
Circuit Breaker 5925005565666 005565666 https//www.nsnlookup.com /fsg-43/fsc-4320/us 4320- https
Circuit Breaker 5925005565666 005565666 https//www.nsnlookup.com /fsg-43/fsc-4320/us 4320- https
www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-249-1081 Radio Frequency Power Divider 5985012491081 PDA-30
www.nsnlookup.com /fsg-43/fsc-4320/us 4320-01-451-7869 Reciprocating Pump Parts Kit 4320014517869 5925/us 5925-00-556-5666
Circuit Breaker 5925005565666 https//www.nsnlookup.com /fsg-59/fsc-5925/us 5925-00-556-5666 Circuit
www.nsnlookup.com /fsg-43/fsc-4320/us 4320-01-451-7869 Reciprocating Pump Parts Kit 4320014517869 5925/us 5925-00-556-5666
Circuit Breaker 5925005565666 https//www.nsnlookup.com /fsg-59/fsc-5925/us 5925-00-556-5666 Circuit
Upgrade your Account Upgrade 5985-01-249-1081Radio Frequency Power Divider5985012491081 012491081 PDA-30
PDA-30-17/52079 DIVIDER,POWER,RADIO FREQUENCY 3 EA NS Request Quotation FedMall Updated Every 15 Minutes
www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-249-1081 Radio Frequency Power Divider 5985012491081 PDA-30
PDA-30-17/52079 DIVIDER,POWER,RADIO FREQUENCY 3 EA NS Request Quotation FedMall Updated Every 15 Minutes
www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-249-1081 Radio Frequency Power Divider 5985012491081 PDA-30
Restrictions 5925-00-556-5666
5925-00-556-5666 is a Circuit Breaker that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5925-00-556-5666
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5925-00-556-5666
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZCLBF
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Mar 2004
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Jan 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Jan 2000
Approved Sources 5925-00-556-5666
- Part Number
- Manufacturer
- Status
- PDA-30
- Manufacturer
- 82647 - Sensata Technologies, Inc. (Active)
- Primary Buy
- Primary Buy
- 7974398
- 19207 - U S Army Tank Automotive Command (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 10011377
- 18876 - Us Army Aviation And Missile Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5925-00-556-5666
- Characteristic
- Specifications
- FIIG
- Specifications
- A030A0
- Actuator Function [CPRW]
- Trip-Reset
- Body Style [AAQL]
- Single Pole Type
- Body Width [ADAT]
- 1.250 Inches Nominal
- Case Material [ADTV]
- Plastic
- Center To Center Distance Between Terminals Parallel To Length [AEBP]
- 0.906 Inches Nominal
- Circuit Protection Type [CPRH]
- Overcurrent Single Location
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Length [AEBY]
- 1.574 Inches Nominal
- Maximum Continuous Load Current Rating Per Pole [CPLM]
- 30.0 Amperes Dc Single Location
- Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps [CPRG]
- 600.0 Dc Single Location
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole
- Mounting Surface To Terminal End Distance [AJWX]
- 1.266 Inches Maximum
- Operating Voltage Type And Rating Per Pole In Volts [CPRF]
- 30.0 Dc Single Location
- Inclosure Protection Type For Which Designed [CQXF]
- Watertight
- Internal Trip Release Configuration [CPSM]
- Series Trip Single Location
- Pole Quantity [AKPX]
- 1
- Reset Method [CPRQ]
- Automatic
- Overall Length [ABHP]
- 2.000 Inches Nominal
- Trip Delay Time In Seconds Per Rated Continuous Current [CQWN]
- 7.000 Minimum At 200 Pct Single Location And 60.000 Maximum At 200 Pct Single Location
- Trip Release Ambient Temp Rating [CRCF]
- 25.0 Deg Celsius Nominal Single Location
- Trip Release Characteristic [CPRL]
- Time Delay Single Location
- Trip Release Method [CPRJ]
- Thermal Single Location
- Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent [CPRN]
- 125.0 Single Location
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.190 Inches Nominal
- Storage Type [BBRG]
- General Purpose Warehouse
- Terminal Type And Quantity [TTQY]
- 2 Screw
Weapon Systems (WSDC) 5925-00-556-5666
