5920-01-519-2399
Open Link Fuse
5920015192399 015192399 44-2493-2 97-1796 ITEM 200 44-2493
A fuse in which the element is not inclosed. It does not contain an alarm indication of the element being severed. See also FUSE LINK, ELECTRICAL and FUSE, INCLOSED LINK. View more Open Link Fuse
November 2023
1
Marketplace 5920-01-519-2399
Request a Quotation from participating marketplace vendors
Related Documents 5920-01-519-2399 2+ Documents (More...)
/fsg-59/fsc-5920/us
BUY NE FedMall Updated Every Day 5920-01-519-2399 RQST NE Updated Every Day 5920-01-519-2399 RQST
Updated Every Day 5920-01-519-2399 RQST NE Related Documents 5920-01-519-2399 2+ Documents ( More...
/fsg-59/fsc-5920/us
vendors Request Updated Every Day 5920-01-477-4449 https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-519-2399
Open Link Fuse 5920015192399 015192399 for $1 a day Upgrade your Account Upgrade 5920-01-519-2399Open
Restrictions 5920-01-519-2399
5920-01-519-2399 is a Open Link Fuse that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5920-01-519-2399
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-01-519-2399
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTJBHD
Approved Sources 5920-01-519-2399
- Part Number
- Manufacturer
- Status
- 44-2493-2
- Manufacturer
- 27192 - Drs Naval Power Systems Inc (Active)
- Source Control
- Source Control
- 97-1796 ITEM 200
- 27192 - Drs Naval Power Systems Inc (Active)
- Primary Buy
- Primary Buy
- 44-2493
- 27192 - Drs Naval Power Systems Inc (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5920-01-519-2399
- Characteristic
- Specifications
- FIIG
- Specifications
- A01700
- End Item Identification [AGAV]
- Mfg Name: Fuse Link, High Speed, 1000 Volts Dc, Size 00; Wsd: Seawolf Class Ssn
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 4.172 Inches Minimum And 4.332 Inches Maximum
- Circuit Over-Current Interruption Type [AFXF]
- Normal Instantaneous
- Continuous Current Rating In Amps [AEBJ]
- 16.000

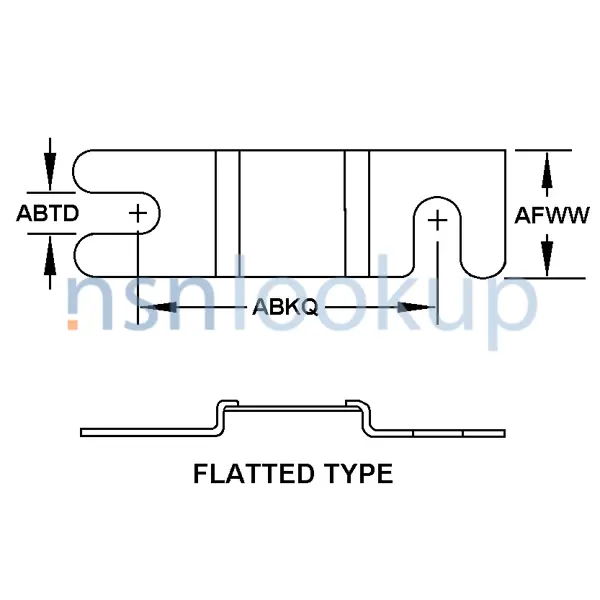

- Body Style [AAQL]
- Flatted Type
- Maximum Voltage Rating In Volts [AFXE]
- 1000.0 Dc
- Mounting Slot Width [ABTD]
- 0.314 Inches Minimum And 0.474 Inches Maximum
- Special Features [FEAT]
- Breaking Capacity: 300Ka; Body Material: Seatite Ker 221; Blade Type: Blades Bolt In; Ambient Temperature: -20 To +85 Deg Celsius; Power Loss At Rated Current: 4 Watts
- Terminal Surface Treatment [ABDN]
- Copper Alloy
- Terminal Width [AFWW]
- 1.101 Inches Minimum And 1.261 Inches Maximum
Weapon Systems (WSDC) 5920-01-519-2399
DLA Procurement Analysis 5920-01-519-2399
- Last Stock Position:
- 17 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5920-01-519-2399
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5920-01-519-2399
Freight Information 5920-01-519-2399
5920-01-519-2399 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062060. A Sub NMFC of Z. It has a NMFC Description of FUSES NOI IN BOXES. 5920-01-519-2399 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34740 which rates the freight between FCL and LCL. 5920-01-519-2399 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5920-01-519-2399 is not classified as a special type of cargo when transported by water. 5920-01-519-2399 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5920-01-519-2399 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
