5920-01-515-8947
Block Fuseholder
5920015158947 015158947 60308R 161K0010 REV L ITEM 7 161K0022
A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE. View more Block Fuseholder
November 2023
6
Marketplace 5920-01-515-8947
Request a Quotation from participating marketplace vendors
Related Documents 5920-01-515-8947 3+ Documents (More...)
(Identification) 1/2 NSN 5920-01-515-8947 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5920-01-515-8947 RQST NE Updated Every Day 5920-01-515-8947 RQST
/fsg-61/fsc-6110/us
Block Fuseholder 5920015158947 015158947 day Upgrade your Account Upgrade 5920-01-515-8947Block
Fuseholder5920015158947 015158947 60308R 161K0010 REV L RQST NE Updated Every Day 5920-01-515-8947 RQST
Block Fuseholder 5920015158947 015158947 day Upgrade your Account Upgrade 5920-01-515-8947Block
Fuseholder5920015158947 015158947 60308R 161K0010 REV L 015158962161K0010 REV L https//www.nsnlookup.com
Restrictions 5920-01-515-8947
5920-01-515-8947 is a Block Fuseholder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5920-01-515-8947
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-01-515-8947
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5920-01-515-8947
- Part Number
- Manufacturer
- Status
- 60308R
- Manufacturer
- 71424 - Mersen Usa Ep Corp. (Active)
- Primary Buy
- Primary Buy
- 161K0010 REV L ITEM 7
- 92878 - Hdt Expeditionary Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- 161K0022
- 92878 - Hdt Expeditionary Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- 161K0010 REV L ITEM 7
- 94833 - Keco Industries, Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 161K0010 REV L ITEM 7
- 5RQL2 - Drs Environmental Systems Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 161K0022
- 5RQL2 - Drs Environmental Systems Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 161K0022
- 94833 - Keco Industries, Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5920-01-515-8947
- Characteristic
- Specifications
- FIIG
- Specifications
- A014A0
- Fuse Accommodation Quantity [AGUE]
- 3
- Current Carrying Rating In Amps [CQJL]
- 30.000
- Voltage In Volts [ELEC]
- 600.0
- Fuse Terminal Type Accommodated [CSNM]
- Knife Blade
- Terminal Type And Quantity [TTQY]
- 6 Compression
- Contact Material [AFRG]
- Copper
- Contact Surface Treatment [AFRH]
- Tin Plated
- Body Style [AAQL]
- Clip Connected Type
- Overall Length [ABHP]
- 7.000 Inches Nominal
- Overall Height [ABKW]
- 2.000 Inches Nominal
- Overall Width [ABMK]
- 4.550 Inches Nominal
- Base Thickness [ACYB]
- 0.530 Inches Nominal

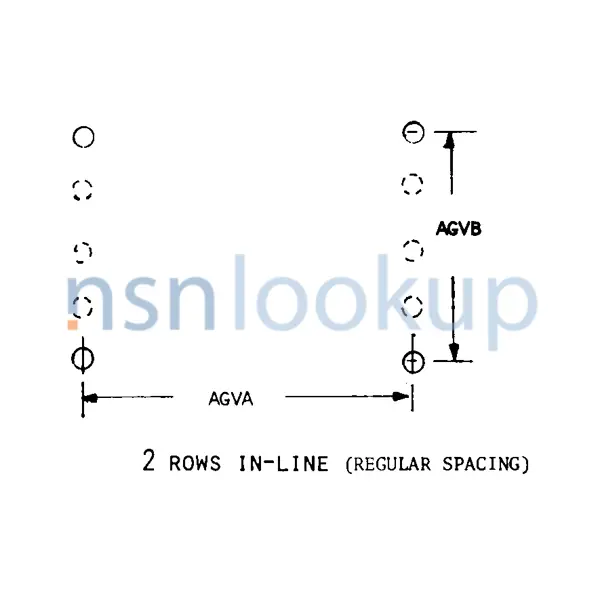

- Mounting Hole Style [AEVB]
- 2 Rows In-Line
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 3.130 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 3.870 Inches Nominal
- Mounting Hole Quantity [ABTJ]
- 6
- Mounting Hole Diameter [ABTB]
- 0.250 Inches Nominal
- Accommodated Fuse Length [AGUJ]
- 5.000 Inches Nominal
- Accommodated Ferrule Diameter [AGUK]
- 0.812 Inches Nominal
- Internal Circuit Configuration And Pole Quantity [CSDX]
- 3 Pole, Mainline, Fused
- End Item Identification [AGAV]
- Control Panel 161K0009-1
Weapon Systems (WSDC) 5920-01-515-8947
DLA Procurement Analysis 5920-01-515-8947
- Last Stock Position:
- 32 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5920-01-515-8947
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5920-01-515-8947
Freight Information 5920-01-515-8947
5920-01-515-8947 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062060. A Sub NMFC of Z. It has a NMFC Description of FUSES NOI IN BOXES. 5920-01-515-8947 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34740 which rates the freight between FCL and LCL. 5920-01-515-8947 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5920-01-515-8947 is not classified as a special type of cargo when transported by water. 5920-01-515-8947 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5920-01-515-8947
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
