5920-01-510-2784

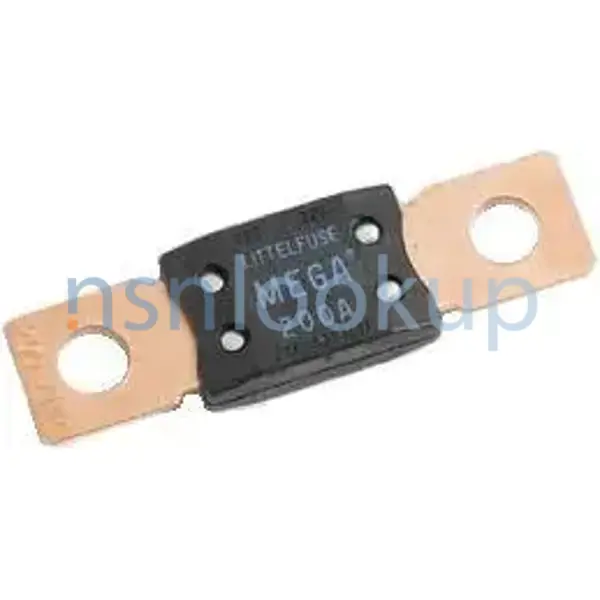

Cartridge Fuse
5920015102784 015102784 298150 M2486-843287
A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK. View more Cartridge Fuse
October 2023
12
Marketplace 5920-01-510-2784
Request a Quotation from participating marketplace vendors
Related Documents 5920-01-510-2784 5+ Documents (More...)
RQST NE Updated Every Day 5920-01-510-2784 RQST Updated Every Day 5920-01-510-2784 RQST NE Related Documents
5920-01-510-2784 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-510-2784
Cartridge Fuse 5920015102784 015102784,298150 day Upgrade your Account Upgrade 5920-01-510-2784Cartridge
Fuse5920015102784 015102784 298150 M2486-843287 www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-510-2784
/fsg-66/fsc-6685/fr
Cartridge Fuse 5920015102784 015102784,298150 Upgrade for $1 a day Upgrade your Account Upgrade
5920-01-510-2784Cartridge Fuse5920015102784 015102784 298150 298150 Cartridge Fuse 5920015102784 015102784,298150
Cartridge Fuse 5920015102784 015102784,298150 Type Circular Saw3220010725731 010725731113-298150
6685-14-574-1820 Bimetallic Self-Indicating Thermometer Table Type Circular Saw 3220010725731 113-298150
/fsg-99/fsc-9999/uk
Restrictions 5920-01-510-2784
5920-01-510-2784 is a Cartridge Fuse that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5920-01-510-2784
- Canada (ZC01)
- Effective Date:
- 1 Jul 2005
- France (ZF01)
- Effective Date:
- 1 Sep 2005
- Germany (ZG01)
- Effective Date:
- 1 Jul 2003
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 2005
- Netherlands (ZN01)
- Effective Date:
- 1 Feb 2010
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 2005
Approved Sources 5920-01-510-2784
- Part Number
- Manufacturer
- Status
- 298150
- Manufacturer
- 75915 - Littelfuse, Inc. (Active)
- Primary Buy
- Primary Buy
- M2486-843287
- A196N - Forsvarets Materielverk (Active)
- NATO Reference
- NATO Reference
Datasheet 5920-01-510-2784
- Characteristic
- Specifications
- FIIG
- Specifications
- A01700
- Body Style [AAQL]
- Hole Type
- Overall Length [ABHP]
- 68.600 Millimeters Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 50.800 Millimeters Nominal
- Terminal Width [AFWW]
- 19.100 Millimeters Nominal
- Continuous Current Rating In Amps [AEBJ]
- 150.000
- Maximum Voltage Rating In Volts [AFXE]
- 32.000 Dc
- Special Features [FEAT]
- 2000A At 32.0 Vdc Interrupting Rating;0.35 Nominal Cold Resistance;92Mvtyp Voltage Drop At Rated Current
- End Item Identification [AGAV]
- Counter Battery Radar,Cobra
Similar Supply Items to 5920-01-510-2784
Freight Information 5920-01-510-2784
5920-01-510-2784 has freight characteristics.. 5920-01-510-2784 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
