5920-01-477-1018
Extractor Post Fuseholder
5920014771018 014771018 MIL-PRF-19207/23 FHL34W-002
A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified). View more Extractor Post Fuseholder
November 2023
1
Marketplace 5920-01-477-1018
Request a Quotation from participating marketplace vendors
Related Documents 5920-01-477-1018 5+ Documents (More...)
5920-01-477-1018 BUY NE FedMall Updated Every Day 5920-01-477-1018 RQST NE Updated Every Day 5920-01
-477-1018 RQST Updated Every Day 5920-01-477-1018 RQST NE Related Documents 5920-01-477-1018 5+ Documents
MIL-PRF-19207/23 FHL34W https//www.nsnlookup.com Receptacle Fuseholder 5920016102611016102611 $1 a day
FHL34W Cartridge https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-477-1018 Extractor Post Fuseholder
Extractor Post Fuseholder 5920014771018 www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-477-1018
5920016492846 us 5920-01-669-1960 Cartridge Fuse 5920016691960 016691960 Extractor Post Fuseholder 5920014771018
MIL-PRF-19207/23 FUSEHOLDER,EXTRACTOR POST 149 EA NS Request Quotation FedMall Updated Every 15 Minutes
Extractor Post Fuseholder 5920014771018 5920014784067 Account Upgrade 5920-01-478-4067Extractor
FHL34W Cartridge Fuse 5920016691960 Fuseholder5920014771018 014771018 MIL-PRF-19207 MIL-PRF-19207
Extractor Post Fuseholder 5920014771018 MIL-PRF-19207/23 FUSEHOLDER,EXTRACTOR POST 149 EA NS Request
Restrictions 5920-01-477-1018
5920-01-477-1018 is a Extractor Post Fuseholder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5920-01-477-1018
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-01-477-1018
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HX
Approved Sources 5920-01-477-1018
- Part Number
- Manufacturer
- Status
- FHL34W-002
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-PRF-19207/23
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5920-01-477-1018
- Characteristic
- Specifications
- FIIG
- Specifications
- A014A0
- Accommodated Ferrule Diameter [AGUK]
- 0.406 Inches Nominal
- Accommodated Fuse Length [AGUJ]
- 1.500 Inches Nominal

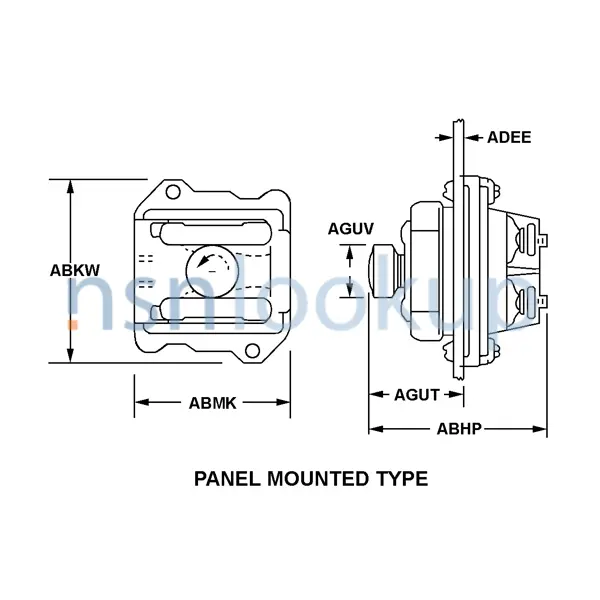

- Body Style [AAQL]
- Panel Mounted Type
- Cap Diameter [AGUV]
- 0.620 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 1.940 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 1.000 Inches Nominal
- Contact Material [AFRG]
- Any Acceptable
- Current Carrying Rating In Amps [CQJL]
- 30.0
- Fuse Terminal Type Accommodated [CSNM]
- Ferrule
- Environmental Protection [ADZC]
- Watertight
- Mounting Hole Diameter [ABTB]
- 0.152 Inches Nominal
- Mounting Hole Quantity [ABTJ]
- 2
- Mounting Hole Height [AGUW]
- 1.840 Inches Nominal
- Mounting Hole Width [AGUX]
- 1.560 Inches Nominal

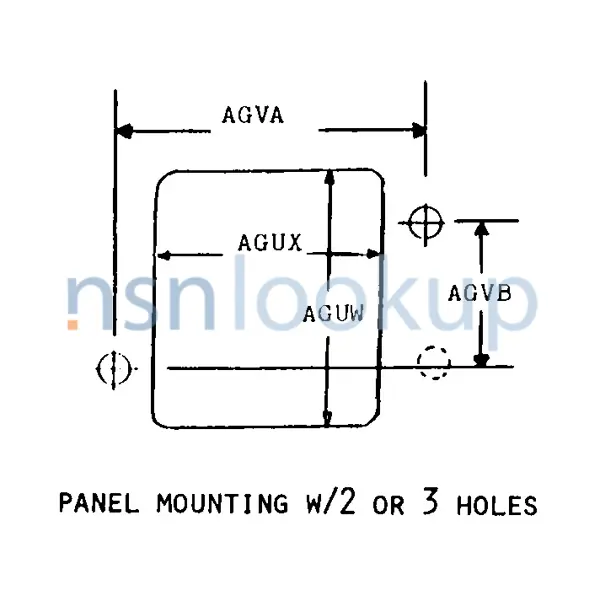

- Mounting Hole Style [AEVB]
