5920-01-433-1048
Fuseholder Subassembly
5920014331048 014331048 JP60030-3CR JP60030-3CR 3POLE 10990/05A/870 PN F1 - F2 BASE
The components of a fuseholder which together form the carrier to hold a fuse in position to provide electrical contact, but which in itself is not a complete functioning item and cannot be assigned a more definite item name. View more Fuseholder Subassembly
May 2023
5
Marketplace 5920-01-433-1048
Request a Quotation from participating marketplace vendors
Related Documents 5920-01-433-1048 1+ Documents (More...)
) https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-433-1048 Fuseholder Subassembly 5920014331048
E JP60030-3CR 3POLE SJ648 - Restrictions Restrictions 5920-01-433-1048 DEMIL: A | DEMILI : | CRITICALITY
Restrictions 5920-01-433-1048
5920-01-433-1048 is a Fuseholder Subassembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5920-01-433-1048
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-01-433-1048
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5920-01-433-1048
- Part Number
- Manufacturer
- Status
- JP60030-3CR
- Manufacturer
- 71400 - Cooper Bussmann, Llc (Active)
- Primary Buy
- Primary Buy
- JP60030-3CR 3POLE
- SJ648 - Tts Marine Ab Formerly Tts Ships (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- JP60030-3CR 3POLE
- 71400 - Cooper Bussmann, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10990/05A/870 PN F1 - F2 BASE
- S9886 - Hamworthy Kse Ab (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- JP60030-3CR 3POLE
- S9886 - Hamworthy Kse Ab (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 10990/05A/870 PN F1 - F2 BASE
- SJ648 - Tts Marine Ab Formerly Tts Ships (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5920-01-433-1048
- Characteristic
- Specifications
- FIIG
- Specifications
- A014A0
- Fuse Accommodation Quantity [AGUE]
- 3
- Current Carrying Rating In Amps [CQJL]
- 30.0
- Voltage In Volts [ELEC]
- 600.0
- Fuse Terminal Type Accommodated [CSNM]
- Ferrule
- Contact Material [AFRG]
- Aluminum

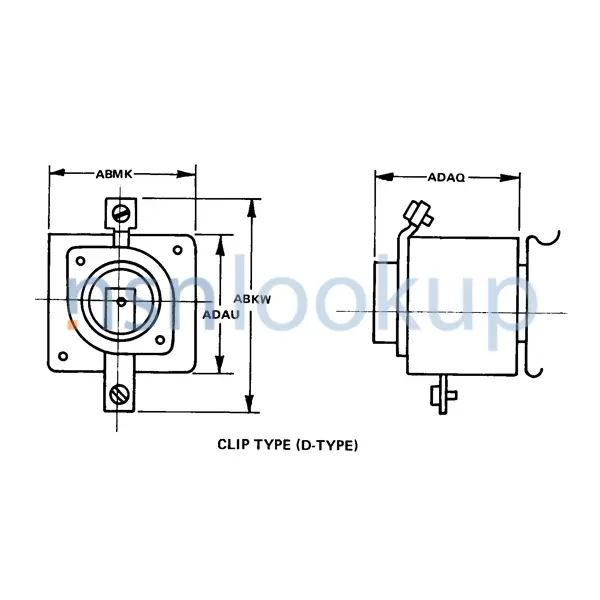

- Body Style [AAQL]
- Clip Type (D-Type)
- Overall Height [ABKW]
- 4.000 Inches Maximum
- Overall Width [ABMK]
- 3.290 Inches Nominal
- Body Length [ADAQ]
- 3.130 Inches Nominal
- Body Height [ADAU]
- 3.060 Inches Nominal
- Accommodated Fuse Length [AGUJ]
- 1.250 Inches Nominal
- Accommodated Ferrule Diameter [AGUK]
- 0.250 Inches Nominal
DLA Procurement Analysis 5920-01-433-1048
Management Data 5920-01-433-1048
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5920-01-433-1048
Freight Information 5920-01-433-1048
5920-01-433-1048 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062060. A Sub NMFC of Z. It has a NMFC Description of FUSES NOI IN BOXES. 5920-01-433-1048 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34740 which rates the freight between FCL and LCL. 5920-01-433-1048 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5920-01-433-1048 is not classified as a special type of cargo when transported by water. 5920-01-433-1048 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5920-01-433-1048
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5920-01-433-1048 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
