5920-01-368-3717
Block Fuseholder
5920013683717 013683717 A-A-55168 ED-00005-001 H25030-1S AA55168-001
A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE. View more Block Fuseholder
Managed by United States
NSN Created on 30 Nov 1992
Data Last Changed
August 2023
August 2023
NATO Update Count
5
5
NATO Data Quality
Marketplace 5920-01-368-3717
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5920-01-368-3717 5+ Documents (More...)
A-A-55168 ED-00005-001 H25030-1S AA55168-001 A fuseholder in which the fuseholder stud and/or clips
FedMall Updated Every 15 Minutes 5920-01-368-3717 BUY NE FedMall Updated Every Day 5920-01-368-3717
RQST NE Updated Every Day 5920-01-368-3717 RQST Updated Every Day 5920-01-368-3717 RQST NE Related Documents
FedMall Updated Every 15 Minutes 5920-01-368-3717 BUY NE FedMall Updated Every Day 5920-01-368-3717
RQST NE Updated Every Day 5920-01-368-3717 RQST Updated Every Day 5920-01-368-3717 RQST NE Related Documents
5920004174624 004174624 your Account Upgrade 5920-00-417-4624Block Fuseholder5920004174624 004174624 A-A-55168
5920012632781 012632781 Upgrade your Account Upgrade 5920-01-263-2781Block Fuseholder5920012632781 012632781 A-A-55168
5920004174624 004174624 your Account Upgrade 5920-00-417 https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-368-3717
5920012632781 012632781 Upgrade your Account Upgrade 5920-01-263-2781Block Fuseholder5920012632781 012632781 A-A-55168
5920004174624 004174624 your Account Upgrade 5920-00-417 https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-368-3717
www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-229-6104 https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-368-3717
Block Fuseholder 5920013683717 013683717 www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-368-3717
AssyUOMTechnical DocumentQuantative ExpressionDefense Logistics Agency (DS)IAConsolidated With 5920-01-368-3717
Block Fuseholder 5920013683717 013683717 www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-368-3717
AssyUOMTechnical DocumentQuantative ExpressionDefense Logistics Agency (DS)IAConsolidated With 5920-01-368-3717
for $1 a day Upgrade your Account Upgrade 5920-01-151-6479Block Fuseholder5920011516479 011516479 A-A-55168
for $1 a day Upgrade your Account Upgrade 5920-01-368-3717Block Fuseholder5920013683717 013683717 A-A
Block Fuseholder 5920013683717 013683717 for $1 a day Upgrade your Account Upgrade 5920-01-368-
for $1 a day Upgrade your Account Upgrade 5920-01-368-3717Block Fuseholder5920013683717 013683717 A-A
Block Fuseholder 5920013683717 013683717 for $1 a day Upgrade your Account Upgrade 5920-01-368-
for $1 a day Upgrade your Account Upgrade 5920-01-263-2781Block Fuseholder5920012632781 012632781 A-A-55168
Block Fuseholder 5920013683717 013683717 for $1 a day Upgrade your Account Upgrade 5920-01-368-
3717Block Fuseholder5920013683717 013683717 A-A-55168 RF30A2S AA55168 -263-2781Block Fuseholder5920012632781
Block Fuseholder 5920013683717 013683717 for $1 a day Upgrade your Account Upgrade 5920-01-368-
3717Block Fuseholder5920013683717 013683717 A-A-55168 RF30A2S AA55168 -263-2781Block Fuseholder5920012632781
Restrictions 5920-01-368-3717
5920-01-368-3717 is a Block Fuseholder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5920-01-368-3717
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-01-368-3717
- US Army (A918)
- Effective Date:
- 1 Oct 2011
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
Approved Sources 5920-01-368-3717
- Part Number
- Manufacturer
- Status
- AA55168-001
- Manufacturer
- 58536 - Federal Commercial Item Description (Active)
- Definitive Standard
- Definitive Standard
- A-A-55168
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
- ED-00005-001
- 33875 - Raytheon E-Systems, Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- H25030-1S
- 71400 - Cooper Bussmann, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5920-01-368-3717
- Characteristic
- Specifications
- FIIG
- Specifications
- A014A0
- Accommodated Ferrule Diameter [AGUK]
- 0.562 Inches Nominal
- Accommodated Fuse Length [AGUJ]
- 2.000 Inches Nominal
- Base Thickness [ACYB]
- 0.219 Inches Nominal
- Body Style [AAQL]
- Side Barrier Type
- Center To Center Distance Between Inside Mounting Holes Along Length [AGVD]
- 0.500 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 0.500 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 0.750 Inches Nominal
- Contact Material [AFRG]
- Copper
- Contact Surface Treatment [AFRH]
- Tin Plated
- Current Carrying Rating In Amps [CQJL]
- 30.0
- Fuse Terminal Type Accommodated [CSNM]
- Ferrule
- Mounting Hole Diameter [ABTB]
- 0.218 Inches Nominal
- Mounting Hole Quantity [ABTJ]
- 4
- Mounting Hole Style [AEVB]

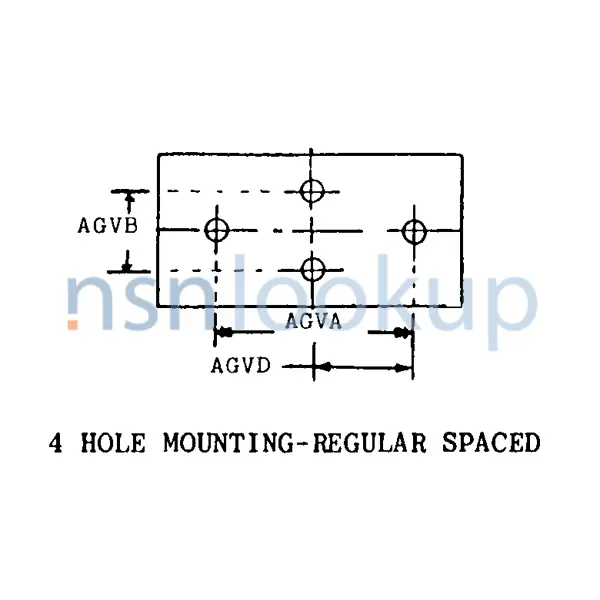

- 4 Hole Mounting-Regular Spaced
- Fuse Accommodation Quantity [AGUE]
- 1
- Internal Circuit Configuration And Pole Quantity [CSDX]
- 1 Pole, Mainline, Fused
- Overall Height [ABKW]
- 1.406 Inches Nominal
- Overall Length [ABHP]
- 3.030 Inches Nominal
- Overall Width [ABMK]
- 1.110 Inches Nominal
- Voltage In Volts [ELEC]
- 250.0
- Terminal Type And Quantity [TTQY]
- 2 Screw
