5920-01-336-9844
Block Fuseholder
5920013369844 013369844 A-A-55428 FUSEHOLDER BLOCK 60328 AA55428-014 1B0026 H60030-3SR
A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE. View more Block Fuseholder
Managed by United States
NSN Created on 7 Apr 1991
Data Last Changed
August 2023
August 2023
NATO Update Count
12
12
NATO Data Quality
Marketplace 5920-01-336-9844
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5920-01-336-9844 5+ Documents (More...)
A-A-55428 FUSEHOLDER BLOCK 60328 AA55428-014 1B0026 H60030-3SR A fuseholder in which the fuseholder
FUSEHOLDER,BLOCK 1 EA NS Request Quotation Subscribe to View Vendor Details... 60328 FUSEHOLDER,BLOCK
AA55428-014 FUSEHOLDER,BLOCK 7 EA NS Request Quotation Subscribe to View Vendor Details... 1B0026 FUSEHOLDER
FUSEHOLDER,BLOCK 1 EA NS Request Quotation Subscribe to View Vendor Details... 60328 FUSEHOLDER,BLOCK
AA55428-014 FUSEHOLDER,BLOCK 7 EA NS Request Quotation Subscribe to View Vendor Details... 1B0026 FUSEHOLDER
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 60328
FUSEHOLDER,BLOCK 1 EA NS Request Quotation Subscribe to View Vendor Details... 60328 FUSEHOLDER,BLOCK
99 EA NS Request Quotation Subscribe to View Vendor Details... 1B0026 FUSEHOLDER,BLOCK 3 EA NS Request
FUSEHOLDER,BLOCK 1 EA NS Request Quotation Subscribe to View Vendor Details... 60328 FUSEHOLDER,BLOCK
99 EA NS Request Quotation Subscribe to View Vendor Details... 1B0026 FUSEHOLDER,BLOCK 3 EA NS Request
H60030-2PR FUSEHOLDER,BLOCK 1 EA NS Request Quotation Subscribe to View Vendor Details...
A-A55428 FUSEHOLDER,BLOCK 70 EA NS Request Quotation Updated Every 15 Minutes 5920-01-433-4054 BUY NE
Block Fuseholder 5920013369844 013369844 for $1 a day Upgrade your Account Upgrade 5920-01-336-
A-A55428 FUSEHOLDER,BLOCK 70 EA NS Request Quotation Updated Every 15 Minutes 5920-01-433-4054 BUY NE
Block Fuseholder 5920013369844 013369844 for $1 a day Upgrade your Account Upgrade 5920-01-336-
for $1 a day Upgrade your Account Upgrade 5920-01-195-7252Block Fuseholder5920011957252 011957252 A-A-55428
A-A55428 FUSEHOLDER,BLOCK 70 EA NS Request Quotation Subscribe to View Vendor Details... 1B0031 FUSEHOLDER
Block Fuseholder 5920013369844 013369844 for $1 a day Upgrade your Account Upgrade 5920-01-336-
A-A55428 FUSEHOLDER,BLOCK 70 EA NS Request Quotation Subscribe to View Vendor Details... 1B0031 FUSEHOLDER
Block Fuseholder 5920013369844 013369844 for $1 a day Upgrade your Account Upgrade 5920-01-336-
for $1 a day Upgrade your Account Upgrade 5920-01-433-3773Block Fuseholder5920014333773 014333773 A-A-55428
A-A55428 FUSEHOLDER,BLOCK 70 EA NS Request Quotation Subscribe to View Vendor Details...
H60030-3PR FUSEHOLDER,BLOCK 3 EA NS Request Quotation Updated Every 15 Minutes 5920-01-433-3773 BUY NE
A-A55428 FUSEHOLDER,BLOCK 70 EA NS Request Quotation Subscribe to View Vendor Details...
H60030-3PR FUSEHOLDER,BLOCK 3 EA NS Request Quotation Updated Every 15 Minutes 5920-01-433-3773 BUY NE
Restrictions 5920-01-336-9844
5920-01-336-9844 is a Block Fuseholder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5920-01-336-9844
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-01-336-9844
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Supplementary Collaborators:
- HD
Approved Sources 5920-01-336-9844
- Part Number
- Manufacturer
- Status
- AA55428-014
- Manufacturer
- 58536 - Federal Commercial Item Description (Active)
- Definitive Standard
- Definitive Standard
- A-A-55428
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
- H60030-3SR
- 71400 - Cooper Bussmann, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- H60030-3SR
- 11873 - Mcgraw Edison Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- H60030-3SR
- 71424 - Mersen Usa Ep Corp. (Active)
- Advisory Reference
- Advisory Reference
- FUSEHOLDER BLOCK
- 71424 - Mersen Usa Ep Corp. (Active)
- Advisory Reference
- Advisory Reference
- 60328
- 21574 - Mersen Canada Toronto Inc (Active)
- Advisory Reference
- Advisory Reference
- 1B0026
- 71400 - Cooper Bussmann, Llc (Active)
- Transferred
- Transferred
Datasheet 5920-01-336-9844
- Characteristic
- Specifications
- FIIG
- Specifications
- A014A0
- Accommodated Ferrule Diameter [AGUK]
- 0.812 Inches Nominal
- Accommodated Fuse Length [AGUJ]
- 5.000 Inches Nominal
- Base Thickness [ACYB]
- 0.219 Inches Nominal
- Body Style [AAQL]
- Side Barrier Type

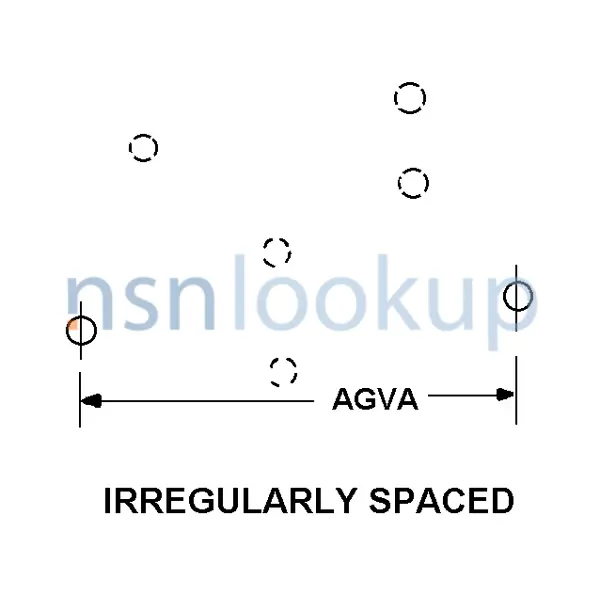

- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 3.125 Inches Nominal
- Contact Material [AFRG]
- Copper Alloy
- Current Carrying Rating In Amps [CQJL]
- 30.0
- Fuse Terminal Type Accommodated [CSNM]
- Ferrule
- Fragility Factor [AFJN]
- Moderately Rugged
- Mounting Hole Diameter [ABTB]
- 0.281 Inches Nominal
- Mounting Hole Quantity [ABTJ]
- 6
- Mounting Hole Style [AEVB]
- Irregularly Spaced
- Fuse Accommodation Quantity [AGUE]
- 3
- Internal Circuit Configuration And Pole Quantity [CSDX]
- 3 Pole, Mainline, Fused
- Overall Height [ABKW]
- 1.797 Inches Nominal
- Overall Length [ABHP]
- 6.750 Inches Nominal
- Overall Width [ABMK]
- 4.313 Inches Nominal
- Voltage In Volts [ELEC]
- 600.0
- Terminal Type And Quantity [TTQY]
- 6 Screw
Weapon Systems (WSDC) 5920-01-336-9844
DLA Procurement Analysis 5920-01-336-9844
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5920-01-336-9844
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- May 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Apr 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5920-01-336-9844
5920-12-333-6738 5920-17-111-8342 5920-12-385-2931 5920-19-002-1150 5920-12-199-3801 5920-37-509-5736 5920-12-346-5019 5920-66-117-7086 5920-99-444-4996 5920-21-894-7478 5920-14-567-6274 5920-23-114-3916 5920-99-993-5105 5920-99-839-0917 5920-66-046-0296 5920-12-198-4866 5920-22-607-3379 5920-66-016-9835
Freight Information 5920-01-336-9844
5920-01-336-9844 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062060. A Sub NMFC of Z. It has a NMFC Description of FUSES NOI IN BOXES. 5920-01-336-9844 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34740 which rates the freight between FCL and LCL. 5920-01-336-9844 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5920-01-336-9844 is not classified as a special type of cargo when transported by water. 5920-01-336-9844 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5920-01-336-9844
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
