5920-01-188-6293
Block Fuseholder
5920011886293 011886293 A-A-55426 H60060-3C AA55426-017 6F60A3B 4100035 1B0035
A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE. View more Block Fuseholder
Managed by United States
NSN Created on 6 Sep 1984
Data Last Changed
November 2023
November 2023
NATO Update Count
12
12
NATO Data Quality
Marketplace 5920-01-188-6293
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5920-01-188-6293 5+ Documents (More...)
A-A-55426 H60060-3C AA55426-017 6F60A3B 4100035 1B0035 A fuseholder in which the fuseholder stud and
H60060-3C FUSEHOLDER,BLOCK 13 EA NS Request Quotation Updated Every 15 Minutes 5920-01-188-6293 BUY NE
Updated Every Day 5920-01-188-6293 RQST NE Updated Every Day 5920-01-188-6293 RQST Updated Every Day
H60060-3C FUSEHOLDER,BLOCK 13 EA NS Request Quotation Updated Every 15 Minutes 5920-01-188-6293 BUY NE
Updated Every Day 5920-01-188-6293 RQST NE Updated Every Day 5920-01-188-6293 RQST Updated Every Day
for $1 a day Upgrade your Account Upgrade 5920-01-206-4178Block Fuseholder5920012064178 012064178 6F60A3B
https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-206-4178 Block Fuseholder 5920012064178012064178 6F60A3B
Day 5920-01-206-4178 RQST NE Related Documents https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-188-6293
https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-206-4178 Block Fuseholder 5920012064178012064178 6F60A3B
Day 5920-01-206-4178 RQST NE Related Documents https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-188-6293
in your web browser . 5820-12-371-0565Electronic Equipment Installation Kit5820123710565 123710565 4100035
https//www.nsnlookup.com /fsg-58/fsc-5820/de 5820-12-371-0565 Electronic Equipment Installation Kit 4100035
Day 5820-12-371-0565 RQST NE Related Documents https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-188-6293
https//www.nsnlookup.com /fsg-58/fsc-5820/de 5820-12-371-0565 Electronic Equipment Installation Kit 4100035
Day 5820-12-371-0565 RQST NE Related Documents https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-188-6293
www.nsnlookup.com /fsg-31/fsc-3120/uk 3120-99-746-6043 https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-188-6293
Block Fuseholder 5920011886293 011886293 www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-188-6293
Block Fuseholder 5920011886293 011886293 www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-188-6293
Documents 5920-00-584-4591 2+ Documents ( More https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-01-188-6293
Block Fuseholder 5920011886293 011886293 (DS)IZDiscontinued-Use 5920-01-188-6293 https// https/
Navy (DN)NZDiscontinued-Use 5920-01-188-6293Defense Logistics Agency (DS)IZDiscontinued-Use 5920-01-188-6293
Block Fuseholder 5920011886293 011886293 (DS)IZDiscontinued-Use 5920-01-188-6293 https// https/
Navy (DN)NZDiscontinued-Use 5920-01-188-6293Defense Logistics Agency (DS)IZDiscontinued-Use 5920-01-188-6293
Restrictions 5920-01-188-6293
5920-01-188-6293 is a Block Fuseholder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5920-01-188-6293
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-01-188-6293
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHD
- Poland (WP01)
- Effective Date:
- 1 May 2007
- Australia (ZA01)
- Effective Date:
- 1 May 2007
Approved Sources 5920-01-188-6293
- Part Number
- Manufacturer
- Status
- AA55426-017
- Manufacturer
- 58536 - Federal Commercial Item Description (Active)
- Definitive Standard
- Definitive Standard
- A-A-55426
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
- H60060-3C
- 71400 - Cooper Bussmann, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 1B0035
- 71400 - Cooper Bussmann, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6F60A3B
- 26405 - Regal Beloit America, Inc (Active)
- Transferred
- Transferred
- 4100035
- 26405 - Regal Beloit America, Inc (Active)
- Transferred
- Transferred
Datasheet 5920-01-188-6293
- Characteristic
- Specifications
- FIIG
- Specifications
- A014A0
- Accommodated Ferrule Diameter [AGUK]
- 0.406 Inches Nominal
- Accommodated Fuse Length [AGUJ]
- 1.500 Inches Nominal
- Base Thickness [ACYB]
- 0.750 Inches Nominal
- Body Material [AAFZ]
- Plastic, Phenolic, Moulded
- Body Style [AAQL]
- Side Barrier Type

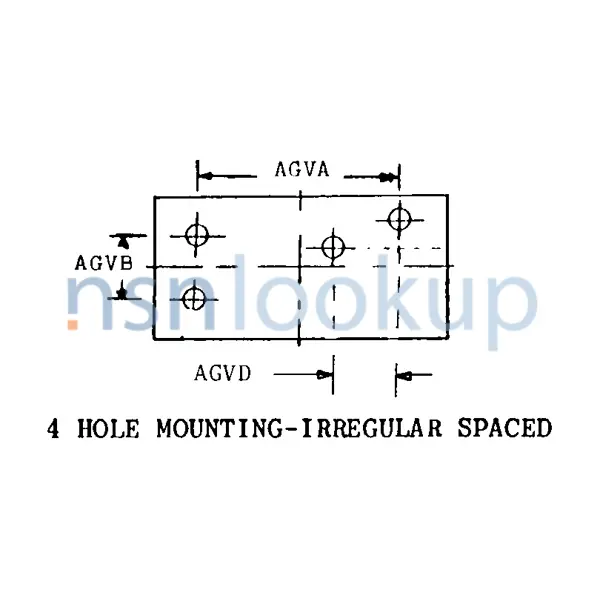

- Center To Center Distance Between Inside Mounting Holes Along Length [AGVD]
- 0.625 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 3.125 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 3.125 Inches Nominal
- Contact Material [AFRG]
- Copper
- Contact Surface Treatment [AFRH]
- Tin Plated
- Current Carrying Rating In Amps [CQJL]
- 60.0
- Fuse Terminal Type Accommodated [CSNM]
- Ferrule
- Mounting Hole Diameter [ABTB]
- 0.281 Inches Nominal
- Mounting Hole Style [AEVB]
- 4 Hole Mounting-Irregular Spaced
- Mounting Hole Quantity [ABTJ]
- 4
- Fuse Accommodation Quantity [AGUE]
- 3
- Internal Circuit Configuration And Pole Quantity [CSDX]
- 3 Pole, Mainline, Fused
- Overall Height [ABKW]
- 2.125 Inches Nominal
- Overall Length [ABHP]
- 6.750 Inches Nominal
- Overall Width [ABMK]
- 5.062 Inches Nominal
- Voltage In Volts [ELEC]
- 250.0
- Terminal Material [ABDM]
- Steel
- Terminal Surface Treatment [ABDN]
- Nickel Plated
- Terminal Type And Quantity [TTQY]
- 6 Compression
Weapon Systems (WSDC) 5920-01-188-6293
DLA Procurement Analysis 5920-01-188-6293
- Last Stock Position:
- 8 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5920-01-188-6293
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Feb 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5920-01-188-6293
5920-12-333-6738 5920-17-111-8342 5920-12-385-2931 5920-19-002-1150 5920-12-199-3801 5920-37-509-5736 5920-12-346-5019 5920-66-117-7086 5920-99-444-4996 5920-21-894-7478 5920-14-567-6274 5920-23-114-3916 5920-99-993-5105 5920-99-839-0917 5920-66-046-0296 5920-12-198-4866 5920-22-607-3379 5920-66-016-9835
Freight Information 5920-01-188-6293
5920-01-188-6293 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062060. A Sub NMFC of Z. It has a NMFC Description of FUSES NOI IN BOXES. 5920-01-188-6293 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34740 which rates the freight between FCL and LCL. 5920-01-188-6293 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5920-01-188-6293 is not classified as a special type of cargo when transported by water. 5920-01-188-6293 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
