5920-00-807-8774

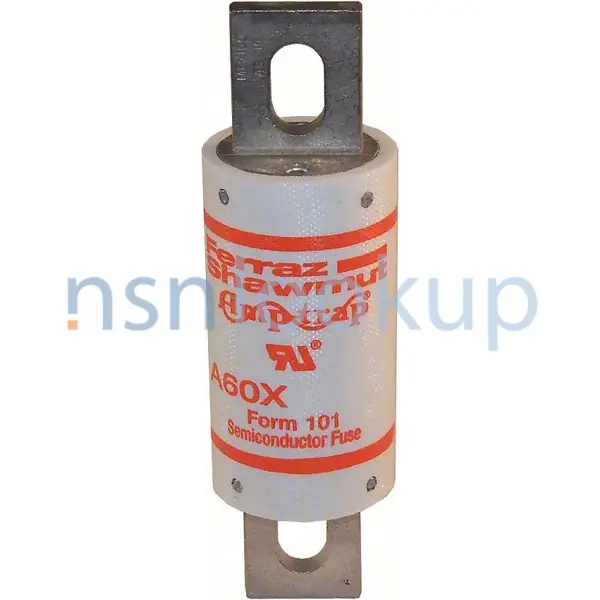

Cartridge Fuse
5920008078774 008078774 A13X350-4 9135782 A13X350
A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK. View more Cartridge Fuse
November 2023
15
Marketplace 5920-00-807-8774
Request a Quotation from participating marketplace vendors
Related Documents 5920-00-807-8774 5+ Documents (More...)
/fsg-59/fsc-5920/us
A13X350-4 130V 350A SEMICOND FUSE RQST NE Request Quotation Subscribe to View Vendor Details...
A13X350 FUSE,CARTRIDGE 7 EA NS Request Quotation Updated Every Day 5920-00-807-8774 RQST NE Updated Every
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
Restrictions 5920-00-807-8774
5920-00-807-8774 is a Cartridge Fuse that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
End Users 5920-00-807-8774
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHD
- MOE Rule:
- RGX1
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- R479
- Supplementary Collaborators:
- TR
- Bulgaria (WU01)
- Effective Date:
- 1 May 2015
- Brazil (YA01)
- Effective Date:
- 1 Jan 2017
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5920-00-807-8774
- Part Number
- Manufacturer
- Status
- A13X350-4
- Manufacturer
- 71424 - Mersen Usa Ep Corp. (Active)
- Primary Buy
- Primary Buy
- A13X350
- 71424 - Mersen Usa Ep Corp. (Active)
- Original Design
- Original Design
- 9135782
- 18876 - Us Army Aviation And Missile Command (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5920-00-807-8774
- Characteristic
- Specifications
- FIIG
- Specifications
- A01700

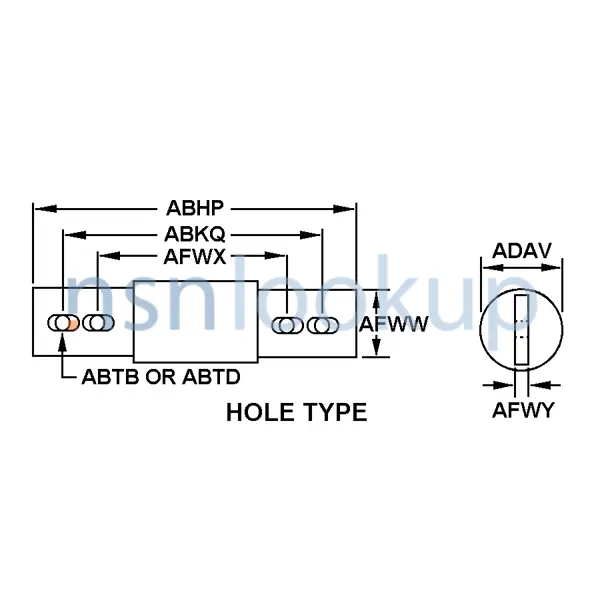

- Body Style [AAQL]
