5920-00-806-9475
Extractor Post Fuseholder
5920008069475 008069475 09P206434 265-1098-00 265-1098-000 340129
A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified). View more Extractor Post Fuseholder
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
26
26
NATO Data Quality
Marketplace 5920-00-806-9475
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
5920-00-806-9475 FUSEHOLDER,EXTRACTOR POST 33 EA NS
5920-00-806-9475 FUSEHOLDER,EXTRACTOR POST 33 EA NS
Updated Every Day 5920-00-806-9475 RQST NE
Updated Every Day 5920-00-806-9475 RQST
Updated Every Day 5920-00-806-9475 RQST NE
Related Documents 5920-00-806-9475 5+ Documents (More...)
09P206434 265-1098-00 340129 265-1098-000 A fuseholder in which the clips or contacts for electrical
-340129 Extractor Post Fuseholder 5920008069475 9092Power Transformer5950999549092 999549092P104-340129
Extractor Post Fuseholder 5920008069475 9092Power Transformer5950999549092 999549092P104-340129 https
-340129 Extractor Post Fuseholder 5920008069475 9092Power Transformer5950999549092 999549092P104-340129
Extractor Post Fuseholder 5920008069475 9092Power Transformer5950999549092 999549092P104-340129 https
enable JavaScript in your web browser . 4820-17-103-5294Ball Valve4820171035294 171035294 FFVAOE-340129
306-3571 Nose Landing Gear Door Mechanism Fitting 9092Power Transformer5950999549092 999549092P104-340129
806-9475 Extractor Post Fuseholder 5920008069475 9092Power https//www.nsnlookup.com /fsg-58/fsc-5826
306-3571 Nose Landing Gear Door Mechanism Fitting 9092Power Transformer5950999549092 999549092P104-340129
806-9475 Extractor Post Fuseholder 5920008069475 9092Power https//www.nsnlookup.com /fsg-58/fsc-5826
FILTER ELEMENT,FLUID 4 EA NS Request Quotation Subscribe to View Vendor Details... 340129 FILTER ELEMENT
https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-806-9475 Extractor Post Fuseholder 5920008069475
Subscribe to View Vendor Details... 09P206434 FUSEHOLDER,EXTRACTOR POST 1 EA NS Request Quotation 340129
https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-806-9475 Extractor Post Fuseholder 5920008069475
Subscribe to View Vendor Details... 09P206434 FUSEHOLDER,EXTRACTOR POST 1 EA NS Request Quotation 340129
your Account Upgrade 1560-00-306-3571Nose Landing Gear Door Mechanism Fitting1560003063571 003063571 340129
enable JavaScript in your web browser . 4820-17-103-5294Ball Valve4820171035294 171035294 FFVAOE-340129
806-9475 Extractor Post Fuseholder 5920008069475 9092Power Transformer5950999549092 999549092P104-340129
enable JavaScript in your web browser . 4820-17-103-5294Ball Valve4820171035294 171035294 FFVAOE-340129
806-9475 Extractor Post Fuseholder 5920008069475 9092Power Transformer5950999549092 999549092P104-340129
how to enable JavaScript in your web browser . 4930-99-316-3323Fuel Filter4930993163323 993163323 340129
your Account Upgrade 5826-01-020-2213Digital Display Indicator Assembly5826010202213 010202213 91-340129
your Account Upgrade 5826-01-020-2213Digital Display Indicator Assembly5826010202213 010202213 91-340129
your Account Upgrade 5826-01-020-2213Digital Display Indicator Assembly5826010202213 010202213 91-340129
your Account Upgrade 5826-01-020-2213Digital Display Indicator Assembly5826010202213 010202213 91-340129
Restrictions 5920-00-806-9475
5920-00-806-9475 is a Extractor Post Fuseholder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5920-00-806-9475
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-00-806-9475
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CLCT
- US Coast Guard (C911)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C007
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5920-00-806-9475
- Part Number
- Manufacturer
- Status
- 265-1098-000
- Manufacturer
- 94033 - Cardwell Condenser Corp (Active)
- Primary Buy
- Primary Buy
- 09P206434
- 98738 - Herley Chicago (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 340129
- 75915 - Littelfuse, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 265-1098-000
- 13499 - Rockwell Collins, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 265-1098-00
- 13499 - Rockwell Collins, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5920-00-806-9475
- Characteristic
- Specifications
- FIIG
- Specifications
- A014A0
- Accommodated Ferrule Diameter [AGUK]
- 0.250 Inches Nominal
- Accommodated Fuse Length [AGUJ]
- 1.250 Inches Nominal
- Body Material [AAFZ]
- Plastic, Phenolic, Mil-M-14, Type Mfe

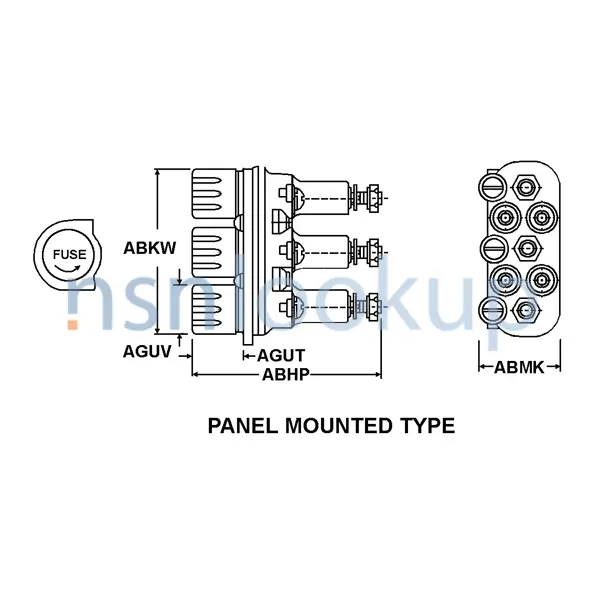

- Body Style [AAQL]
- Panel Mounted Type
- Cap Diameter [AGUV]
- 0.375 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 0.937 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 0.812 Inches Nominal
- Contact Material [AFRG]
- Brass
- Contact Surface Treatment [AFRH]
- Copper And Tin Plated And Zinc Plated
- Current Carrying Rating In Amps [CQJL]
- 30.0
- Fuse Terminal Type Accommodated [CSNM]
- Ferrule
- Environmental Protection [ADZC]
- Dripproof And Shock Proof
- Mounting Hole Diameter [ABTB]
- 0.140 Inches Nominal

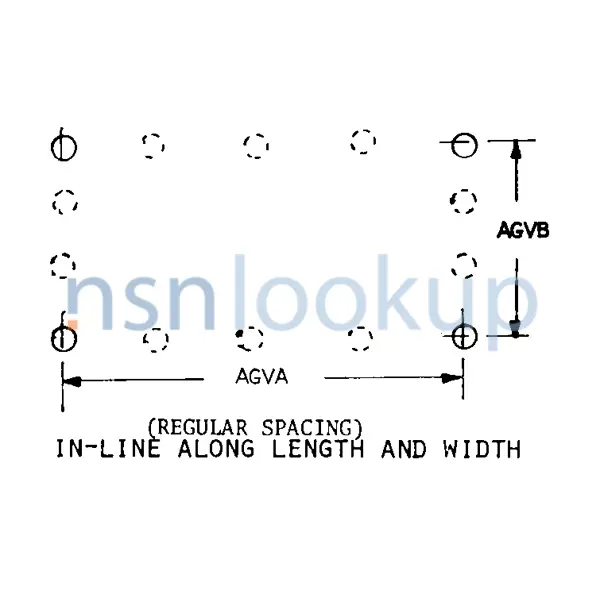

- Mounting Hole Style [AEVB]
- In-Line Along Length And Width
- Mounting Hole Quantity [ABTJ]
- 4
- Fuse Accommodation Quantity [AGUE]
- 4
- Interruption Indicator Method [AFXH]
- Test Hole
- Length From Front Protrusion To Mounting Surface [AGUT]
- 0.343 Inches Nominal
- Overall Height [ABKW]
- 2.187 Inches Nominal
- Overall Length [ABHP]
- 2.241 Inches Nominal
- Overall Width [ABMK]
- 1.125 Inches Nominal
- Voltage In Volts [ELEC]
- 300.0
- Terminal Material [ABDM]
- Brass
- Terminal Surface Treatment [ABDN]
- Solder Dip
- Terminal Type And Quantity [TTQY]
- 8 Tab, Solder Lug
Weapon Systems (WSDC) 5920-00-806-9475
DLA Procurement Analysis 5920-00-806-9475
- Last Stock Position:
- 9 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5920-00-806-9475
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5920-00-806-9475
Freight Information 5920-00-806-9475
5920-00-806-9475 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063160. A Sub NMFC of Z. It has a NMFC Description of SWITCH BOXES/ELEC ENCLOSURES. 5920-00-806-9475 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35205 which rates the freight between FCL and LCL. 5920-00-806-9475 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5920-00-806-9475 is not classified as a special type of cargo when transported by water. 5920-00-806-9475 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5920-00-806-9475
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5920-00-806-9475 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
