5920-00-802-0666
Extractor Post Fuseholder
5920008020666 008020666 8020666 303D13653-108 EL1-PM G-205889-1 EL1 G205889-1
A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified). View more Extractor Post Fuseholder
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
28
28
NATO Data Quality
Marketplace 5920-00-802-0666
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5920-00-802-0666 5+ Documents (More...)
8020666 303D13653-108 EL1-PM G-205889-1 EL1 G205889-1 A fuseholder in which the clips or contacts for
Extractor Post Fuseholder 5920008020666 Agency (DS)IAConsolidated With 5920-00-802-0666 https//
Extractor Post Fuseholder 5920008020666 DS)IAConsolidated With 5920-00-802-0666 https// https//
Extractor Post Fuseholder 5920008020666 Agency (DS)IAConsolidated With 5920-00-802-0666 https//
Extractor Post Fuseholder 5920008020666 DS)IAConsolidated With 5920-00-802-0666 https// https//
Related Documents 5920-00-758-7791 2+ Documents https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-802-0666
Extractor Post Fuseholder 5920008020666 Agency (DS)IAConsolidated With 5920-00-802-0666 https//
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NFWhen Exhausted Use 5920-00-802-0666
Extractor Post Fuseholder 5920008020666 Agency (DS)IAConsolidated With 5920-00-802-0666 https//
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NFWhen Exhausted Use 5920-00-802-0666
Documents ( More... ) https //www.nsnlookup.com https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-802-0666
Extractor Post Fuseholder 5920008020666 DS)IAConsolidated With 5920-00-802-0666 https// https//
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NAConsolidated With 5920-00-802-0666
Extractor Post Fuseholder 5920008020666 DS)IAConsolidated With 5920-00-802-0666 https// https//
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NAConsolidated With 5920-00-802-0666
Documents ( More... ) https //www.nsnlookup.com https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-802-0666
Extractor Post Fuseholder 5920008020666 the Navy (DN)NAConsolidated With 5920-00-802-0666 https
Navy (DN)NAConsolidated With 5920-00-802-0666Defense Logistics Agency (DS)IAConsolidated With 5920-00-802-0666
Extractor Post Fuseholder 5920008020666 the Navy (DN)NAConsolidated With 5920-00-802-0666 https
Navy (DN)NAConsolidated With 5920-00-802-0666Defense Logistics Agency (DS)IAConsolidated With 5920-00-802-0666
enable JavaScript in your web browser . 2530-14-366-1648Steering Tie Rod End2530143661648 143661648 8020666
JavaScript in your web browser . 3460-15-207-2924Rotary Wheel Fiber Brush3460152072924 152072924 8020666
Extractor Post Fuseholder 5920008020666 day Upgrade your Account Upgrade 5920-00-802-0666Extractor
JavaScript in your web browser . 3460-15-207-2924Rotary Wheel Fiber Brush3460152072924 152072924 8020666
Extractor Post Fuseholder 5920008020666 day Upgrade your Account Upgrade 5920-00-802-0666Extractor
Restrictions 5920-00-802-0666
5920-00-802-0666 is a Extractor Post Fuseholder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5920-00-802-0666
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-00-802-0666
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- BD
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Jun 1998
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5920-00-802-0666
- Part Number
- Manufacturer
- Status
- 8020666
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 303D13653-108
- 56289 - Sprague Electric Co World Hqs (Active)
- Secondary Buy
- Secondary Buy
- EL1-PM
- 84613 - Fic Corporation (Active)
- Secondary Buy
- Secondary Buy
- G-205889-1
- 84613 - Fic Corporation (Active)
- Secondary Buy
- Secondary Buy
- EL1
- 03538 - Lockheed Martin Corporation (Active)
- Secondary Buy
- Secondary Buy
- G205889-1
- 64959 - American Telephone And Telegraph Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5920-00-802-0666
- Characteristic
- Specifications
- FIIG
- Specifications
- A014A0
- Accommodated Ferrule Diameter [AGUK]
- 0.406 Inches Nominal
- Accommodated Fuse Length [AGUJ]
- 1.500 Inches Nominal
- Body Material [AAFZ]
- Plastic, Phenolic, Moulded

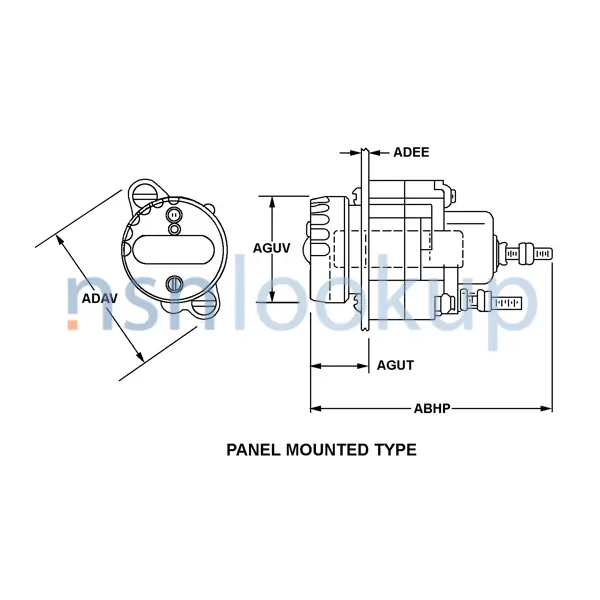

- Body Style [AAQL]
- Panel Mounted Type
- Bushing Hole Diameter [AGVF]
- 1.000 Inches Nominal
- Cap Diameter [AGUV]
- 0.683 Inches Nominal
- Center To Center Distance Between Keyway And Bushing Hole [AGVM]
- 0.562 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 1.124 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 1.125 Inches Nominal
- Contact Material [AFRG]
- Bronze
- Contact Surface Treatment [AFRH]
- Silver Plated
- Current Carrying Rating In Amps [CQJL]
- 20.0
- Fuse Terminal Type Accommodated [CSNM]
- Ferrule
- Environmental Protection [ADZC]
- Shock Proof And Vibration Proof
- Mounting Hole Diameter [ABTB]
- 0.166 Inches Minimum And 0.176 Inches Maximum
- Mounting Hole Quantity [ABTJ]
- 2
- Mounting Hole Style [AEVB]
- Bushing Mounting W/2 Holes And Keyway
- Fuse Accommodation Quantity [AGUE]
- 1
- Interruption Indicator Method [AFXH]
- Neon Lamp
- Length From Front Protrusion To Mounting Surface [AGUT]
- 1.001 Inches Nominal
- Screw Thread Diameter [AJYN]
- 0.164 Inches Nominal
- Screw Thread Quantity Per Inch [AJYQ]
- 36.0
- Overall Diameter [ADAV]
- 1.312 Inches Nominal
- Overall Length [ABHP]
- 3.938 Inches Nominal
- Voltage In Volts [ELEC]
- 125.0
- Terminal Type And Quantity [TTQY]
- 2 Threaded Stud
Weapon Systems (WSDC) 5920-00-802-0666
DLA Procurement Analysis 5920-00-802-0666
- Last Stock Position:
- 8 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5920-00-802-0666
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5920-00-802-0666
Freight Information 5920-00-802-0666
5920-00-802-0666 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063160. A Sub NMFC of Z. It has a NMFC Description of SWITCH BOXES/ELEC ENCLOSURES. 5920-00-802-0666 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35205 which rates the freight between FCL and LCL. 5920-00-802-0666 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5920-00-802-0666 is not classified as a special type of cargo when transported by water. 5920-00-802-0666 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5920-00-802-0666
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
