5920-00-722-2015
Electrical Fuse Link
5920007222015 007222015 A0149B 105-413-55
An item which forms the replaceable fusible element of an electrical fuse and is prefabricated to a specific size and rating. It may be inclosed. See also FUSE, INCLOSED LINK and FUSE, OPEN LINK. View more Electrical Fuse Link
May 2023
3
Marketplace 5920-00-722-2015
Request a Quotation from participating marketplace vendors
Related Documents 5920-00-722-2015 2+ Documents (More...)
BUY NE FedMall Updated Every Day 5920-00-722-2015 RQST NE Updated Every Day 5920-00-722-2015 RQST
Updated Every Day 5920-00-722-2015 RQST NE Related Documents 5920-00-722-2015 2+ Documents ( More...
www.nsnlookup.com /fsg-30/fsc-3040/de 3040-12-347-3892 https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-722-2015
Electrical Fuse Link 5920007222015 007222015 Documents 5920-00-722-2015 2+ Documents ( More...
Restrictions 5920-00-722-2015
5920-00-722-2015 is a Electrical Fuse Link that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5920-00-722-2015
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5920-00-722-2015
- Part Number
- Manufacturer
- Status
- A0149B
- Manufacturer
- 83008 - Staco Energy Products Co (Active)
- Primary Buy
- Primary Buy
- 105-413-55
- 63743 - Ward Leonard Ct Llc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5920-00-722-2015
- Characteristic
- Specifications
- FIIG
- Specifications
- A01700

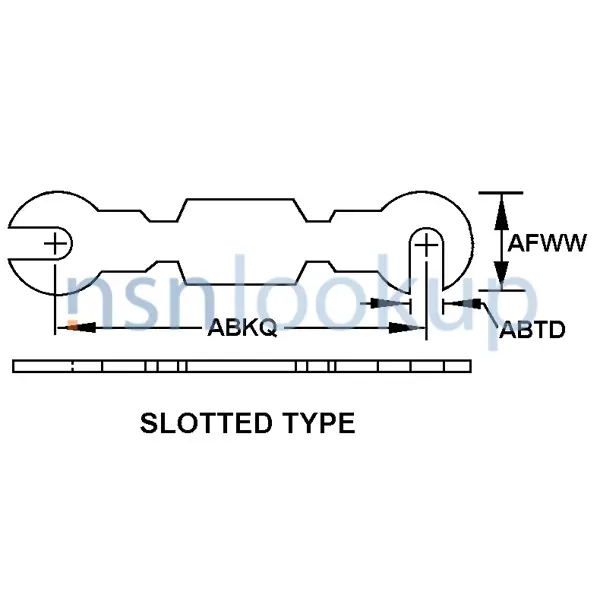

- Body Style [AAQL]
- Slotted Type
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 6.875 Inches Nominal
- Mounting Slot Width [ABTD]
- 0.375 Inches Nominal
- Terminal Width [AFWW]
- 1.000 Inches Nominal
- Continuous Current Rating In Amps [AEBJ]
- 15.000
- Maximum Voltage Rating In Volts [AFXE]
- 120.0 Ac
- Circuit Over-Current Interruption Type [AFXF]
- Normal Instantaneous
- Interruption Indicator Method [AFXH]
- Opaque Body
DLA Procurement Analysis 5920-00-722-2015
Management Data 5920-00-722-2015
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5920-00-722-2015
Freight Information 5920-00-722-2015
5920-00-722-2015 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062060. A Sub NMFC of Z. It has a NMFC Description of FUSES NOI IN BOXES. 5920-00-722-2015 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34740 which rates the freight between FCL and LCL. 5920-00-722-2015 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 743 for ocean manifesting and military sealift. 5920-00-722-2015 is not classified as a special type of cargo when transported by water. 5920-00-722-2015 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5920-00-722-2015
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Vendor's Setup or Folding Box
Contracting Technical Data File (CTDF) 5920-00-722-2015 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
