5920-00-636-4542
Extractor Post Fuseholder
5920006364542 006364542 4913335-43 1075A 50C7435 P3100 342001
A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified). View more Extractor Post Fuseholder
January 2023
33
Marketplace 5920-00-636-4542
Request a Quotation from participating marketplace vendors
Related Documents 5920-00-636-4542 5+ Documents (More...)
RQST NE Updated Every Day 5920-00-636-4542 RQST Updated Every Day 5920-00-636-4542 RQST NE Related
Updated Every Day 5920-00-636-4542 RQST NE Related Extractor Post Fuseholder 5920006364542 Documents
,EXTRACTOR POST 1 EA NS Request Quotation Subscribe to View Vendor Details... 342001 FUSEHOLDER,EXTRACTOR
POST 7 EA NS Request Quotation Subscribe to View Vendor Details... 342001 FUSEHOLDER,EXTRACTOR POST
JavaScript in your web browser . 6625-14-471-7152Coffret Transport6625144717152 144717152A3400000-01KO-1075A
www.nsnlookup.com /fsg-66/fsc-6625/fr 6625-14- https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-636-4542
6675-21-903-1534 Graphics Plotter 6675219031534219031534 Coffret7025144732536 1447325362023679ETK-1075A
https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-636-4542 Extractor Post Fuseholder 5920006364542
Users 5360-15-075-0628 Italy (ZR) Approved Sources 5360-15-075-0628 Part NumberManufacturerStatus1-6-1-1075A
Restrictions 5920-00-636-4542
5920-00-636-4542 is a Extractor Post Fuseholder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5920-00-636-4542
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-00-636-4542
- NASA (G600)
- Effective Date:
- 1 Apr 1991
- NASA (G900)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5920-00-636-4542
- Part Number
- Manufacturer
- Status
- 342001
- Manufacturer
- 75915 - Littelfuse, Inc. (Active)
- Incomplete Reference
- Incomplete Reference
- 4913335-43
- 90536 - Lockheed Martin Corp (Active)
- Secondary Buy
- Secondary Buy
- 1075A
- 75915 - Littelfuse, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 50C7435
- 79500 - Westinghouse Electric Corp (Active)
- Secondary Buy
- Secondary Buy
- P3100
- 90805 - Couse Mfg Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 342001
- 23705 - Fruehauf Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 342001
- 92333 - Fruehauf Corp Military Products Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5920-00-636-4542
- Characteristic
- Specifications
- FIIG
- Specifications
- A014A0
- Accommodated Ferrule Diameter [AGUK]
- 0.250 Inches Nominal
- Accommodated Fuse Length [AGUJ]
- 1.250 Inches Nominal

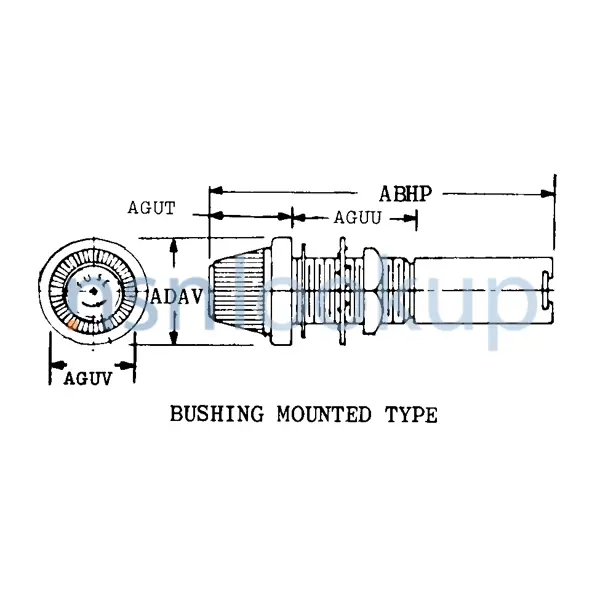

- Body Style [AAQL]
- Bushing Mounted Type
- Bushing Hole Diameter [AGVF]
- 0.502 Inches Minimum And 0.510 Inches Maximum
- Bushing Thread Length [AGUU]
- 0.500 Inches Nominal
- Cap Diameter [AGUV]
- 0.719 Inches Nominal
- Contact Material [AFRG]
- Beryllium Copper
- Contact Surface Treatment [AFRH]
- Silver Plated
- Current Carrying Rating In Amps [CQJL]
- 15.0
- Fuse Terminal Type Accommodated [CSNM]
- Ferrule
- Flatted Side Bushing Hole Length [AGVH]
- 0.475 Inches Minimum And 0.480 Inches Maximum
- Mounting Hole Style [AEVB]
- Bushing Mounting
- Fuse Accommodation Quantity [AGUE]
- 1
- Length From Front Protrusion To Mounting Surface [AGUT]
- 0.515 Inches Nominal
- Reference Number Differentiating Characteristics [ZZZY]
- As Differentiated By Contact Finish
- Overall Diameter [ADAV]
- 0.719 Inches Nominal
- Overall Length [ABHP]
- 2.219 Inches Nominal
- Voltage In Volts [ELEC]
- 250.0
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug
NATO Stock Numbers Related to 5920-00-636-4542
Freight Information 5920-00-636-4542
5920-00-636-4542 has freight characteristics.. 5920-00-636-4542 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
