5920-00-628-7792
Cartridge Fuse
5920006287792 006287792 LAN-F25 ETN5257 264-0613-000 313C743H02 LF5H100RE 264-0613-00
A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK. View more Cartridge Fuse
November 2023
18
Marketplace 5920-00-628-7792
Request a Quotation from participating marketplace vendors
Related Documents 5920-00-628-7792 4+ Documents (More...)
/fsg-59/fsc-5920/us
ETN5257 FUSE,CARTRIDGE 16 EA NS Request Quotation Updated Every Day 5920-00-628-7792 RQST NE Updated
Every Day 5920-00-628-7792 RQST Updated Every Day 5920-00-628-7792 RQST NE Related Documents 5920-00-
/fsg-59/fsc-5920/us
Documents 5920-00-975-7336 2+ Documents United https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-628-7792
Cartridge Fuse 5920006287792 006287792 www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-628-7792 https
/fsg-59/fsc-5920/us
,CARTRIDGE 1 EA NS Request Quotation Subscribe to View Vendor Details... 313C743H02 FUSE,CARTRIDGE 1
Fuse5920210080346 210080346313C743H02 007765529 https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-628-7792
/fsg-59/fsc-5920/ca
007765529 ETN-5257 FUSE,CARTRIDGE 1 EA NS Request Quotation Subscribe to View Vendor Details... 313C743H02
FUSE ,CARTRIDGE 1 EA NS Request Quotation Subscribe to View Vendor Details... 313C743H02 FUSE,CARTRIDGE
Restrictions 5920-00-628-7792
5920-00-628-7792 is a Cartridge Fuse that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5920-00-628-7792
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BN)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- GTHXHD
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 2005
Approved Sources 5920-00-628-7792
- Part Number
- Manufacturer
- Status
- LAN-F25
- Manufacturer
- 71400 - Cooper Bussmann, Llc (Active)
- Primary Buy
- Primary Buy
- ETN5257
- 30086 - L3harris Maritime Power & Energy (Active)
- Secondary Buy
- Secondary Buy
- 313C743H02
- 79500 - Westinghouse Electric Corp (Active)
- Secondary Buy
- Secondary Buy
- 264-0613-000
- 13499 - Rockwell Collins, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 313C743H02
- 65054 - Westinghouse Electric Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- LF5H100RE
- 91072 - Shawmut Mills Div Wyner R H (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 264-0613-00
- 13499 - Rockwell Collins, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5920-00-628-7792
- Characteristic
- Specifications
- FIIG
- Specifications
- A01700

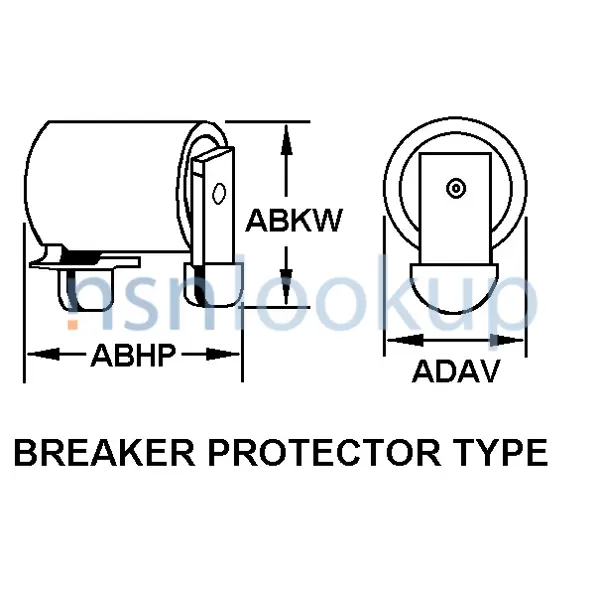

- Body Style [AAQL]
- Breaker Protector Type
- Circuit Over-Current Interruption Type [AFXF]
- Normal Instantaneous
- Continuous Current Rating In Amps [AEBJ]
- 5.000
- Criticality Code Justification [CRTL]
- Feat
- End Item Identification [AGAV]
- Submarine Interior Communication System. Iwo Jima Class Lhp, Supply Class Aoe, Nimitz Class Cvn, Forrestal Class Cv, Tarawa Class Lha, Austin Ship Class Lpd-4 Amphibious Transport Docks. Moored Training Ship.
- Features Provided [CBBL]
- Nonrenewable Fusible Element
- Maximum Voltage Rating In Volts [AFXE]
- 100.0 Ac And 100.0 Dc
- Interruption Indicator Method [AFXH]
- Opaque Body
- Short-Circuit/Interrupt Current Rating In Amps [CSQN]
- 30000.0
- Overall Diameter [ADAV]
- 1.219 Inches Nominal
- Overall Height [ABKW]
- 2.188 Inches Nominal
- Overall Length [ABHP]
- 2.876 Inches Maximum
- Special Features [FEAT]
- Weapon System Essential
- Terminal Surface Treatment [ABDN]
- Nickel
Weapon Systems (WSDC) 5920-00-628-7792
DLA Procurement Analysis 5920-00-628-7792
- Last Stock Position:
- 59 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5920-00-628-7792
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5920-00-628-7792
Freight Information 5920-00-628-7792
5920-00-628-7792 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062060. A Sub NMFC of Z. It has a NMFC Description of FUSES NOI IN BOXES. 5920-00-628-7792 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34740 which rates the freight between FCL and LCL. 5920-00-628-7792 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5920-00-628-7792 is not classified as a special type of cargo when transported by water. 5920-00-628-7792 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5920-00-628-7792
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Vendor's Setup or Folding Box
Contracting Technical Data File (CTDF) 5920-00-628-7792 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
