5920-00-538-6205
Cartridge Fuse
5920005386205 005386205 100203355 334005 0004583004 70D 215M 2486-217 175-14307-02 70D-5A AX70D
A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK. View more Cartridge Fuse
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
January 2024
January 2024
NATO Update Count
28
28
NATO Data Quality
Marketplace 5920-00-538-6205
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5920-00-538-6205 5+ Documents (More...)
https//www.nsnlookup.com
/fsg-59/fsc-5920/us
/fsg-59/fsc-5920/us
5920-00-538-6205 Cartridge Fuse 5920005386205 005386205
100203355 334005 0004583004 70D 215M 2486-217 175-14307-02 70D-5A AX70D A fuse in which the element
... 70D-5A FUSE,CARTRIDGE 10 EA NS Request Quotation 334-005 FUSE,CARTRIDGE 5 EA NS Request Quotation
334-005 FUSE,CARTRIDGE 5 EA NS Request Quotation NS Request ... 70D-5A FUSE,CARTRIDGE 10 EA NS Request
... 70D-5A FUSE,CARTRIDGE 10 EA NS Request Quotation 334-005 FUSE,CARTRIDGE 5 EA NS Request Quotation
334-005 FUSE,CARTRIDGE 5 EA NS Request Quotation NS Request ... 70D-5A FUSE,CARTRIDGE 10 EA NS Request
https//www.nsnlookup.com
/fsg-59/fsc-5920/us
/fsg-59/fsc-5920/us
5920-00-102-1372 Cartridge Fuse 5920001021372 001021372
FUSE,CARTRIDGE 2 EA NS Request Quotation 215M FUSE,CARTRIDGE 32 EA NS Request Quotation Subscribe to
View Vendor Details... 215M FUSE,CARTRIDGE 5 EA NS Request Quotation Subscribe to View Vendor Details
... 70D FUSE,CARTRIDGE 1 EA NS Request Quotation 70D FUSE,CARTRIDGE 1 EA NS Request Quotation Subscribe
View Vendor Details... 215M FUSE,CARTRIDGE 5 EA NS Request Quotation Subscribe to View Vendor Details
... 70D FUSE,CARTRIDGE 1 EA NS Request Quotation 70D FUSE,CARTRIDGE 1 EA NS Request Quotation Subscribe
https//www.nsnlookup.com
/fsg-59/fsc-5920/us
/fsg-59/fsc-5920/us
5920-00-067-6793 Cartridge Fuse 5920000676793 000676793
FUSE,CARTRIDGE 2 EA NS Request Quotation 215M FUSE,CARTRIDGE 32 EA NS Request Quotation Subscribe to
View Vendor Details... 215M FUSE,CARTRIDGE 5 EA NS Request Quotation Subscribe to View Vendor Details
... 70D FUSE,CARTRIDGE 1 EA NS Request Quotation 70D FUSE,CARTRIDGE 1 EA NS Request Quotation Subscribe
View Vendor Details... 215M FUSE,CARTRIDGE 5 EA NS Request Quotation Subscribe to View Vendor Details
... 70D FUSE,CARTRIDGE 1 EA NS Request Quotation 70D FUSE,CARTRIDGE 1 EA NS Request Quotation Subscribe
https//www.nsnlookup.com
/fsg-51/fsc-5120/us
/fsg-51/fsc-5120/us
5120-00-621-1973 Cartridge Fuse 5120006211973 006211973
FUSE,CARTRIDGE 2 EA NS Request Quotation 215M FUSE,CARTRIDGE 32 EA NS Request Quotation Subscribe to
View Vendor Details... 215M FUSE,CARTRIDGE 5 EA NS Request Quotation Subscribe to View Vendor Details
... 70D FUSE,CARTRIDGE 1 EA NS Request Quotation 70D FUSE,CARTRIDGE 1 EA NS Request Quotation Subscribe
View Vendor Details... 215M FUSE,CARTRIDGE 5 EA NS Request Quotation Subscribe to View Vendor Details
... 70D FUSE,CARTRIDGE 1 EA NS Request Quotation 70D FUSE,CARTRIDGE 1 EA NS Request Quotation Subscribe
Fuse 5920221172484221172484 4 5920-22-306-0080 https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-538-6205
Cartridge Fuse 5920005386205 005386205 FUSE,CARTRIDGE 1 EA NS Request Quotation Subscribe https
Cartridge Fuse 5920005386205 005386205 FUSE,CARTRIDGE 1 EA NS Request Quotation Subscribe https
Restrictions 5920-00-538-6205
5920-00-538-6205 is a Cartridge Fuse that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5920-00-538-6205
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-00-538-6205
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHD
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5920-00-538-6205
- Part Number
- Manufacturer
- Status
- 70D
- Manufacturer
- 3B4M0 - Lucent Technologies Inc (Active)
- Primary Buy
- Primary Buy
- 70D
- 64959 - American Telephone And Telegraph Co (Replaced)
- Original Design
- Original Design
- 215M
- 74006 - Reliance Comm/Tec Corp Lorain (Active)
- Secondary Buy
- Secondary Buy
- 2486-217
- 74006 - Reliance Comm/Tec Corp Lorain (Active)
- Secondary Buy
- Secondary Buy
- 175-14307-02
- 38215 - Prism Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- 70D-5A
- 71400 - Cooper Bussmann, Llc (Active)
- Secondary Buy
- Secondary Buy
- AX70D
- 61857 - San-O Industrial Corp (Active)
- Secondary Buy
- Secondary Buy
- 70D
- 71400 - Cooper Bussmann, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 70D
- 98997 - Sightmaster Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 100203355
- 06KW9 - Lucent Technologies Inc Dba Federal (Replaced)
- Advisory Reference
- Advisory Reference
- 100203355
- 09JX9 - Alcatel-Lucent Usa Inc. (Replaced)
- Advisory Reference
- Advisory Reference
- 100203355
- 0YL13 - Lucent Technologies Inc Advanced (Obsolete)
- Advisory Reference
- Advisory Reference
- 334005
- 0YL13 - Lucent Technologies Inc Advanced (Obsolete)
- Advisory Reference
- Advisory Reference
- 0004583004
- 93929 - Radiodetection, Llc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5920-00-538-6205
- Characteristic
- Specifications
- FIIG
- Specifications
- A01700

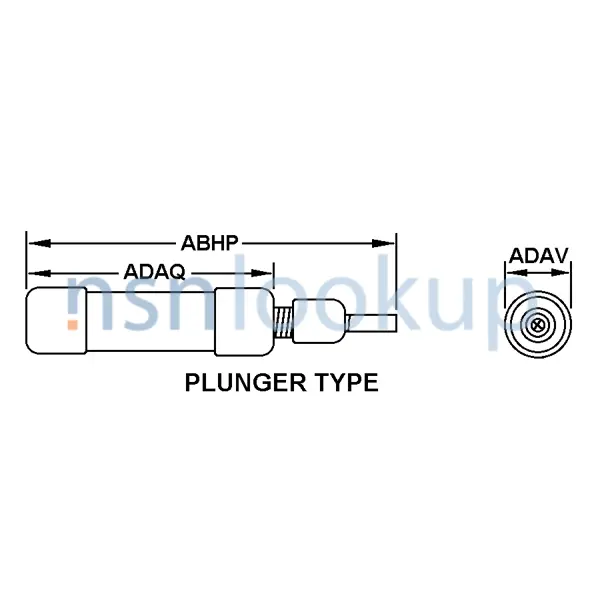

- Body Length [ADAQ]
- 1.266 Inches Nominal
- Body Style [AAQL]
- Plunger Type
- Case Material [ADTV]
- Glass
- Circuit Over-Current Interruption Type [AFXF]
- Normal Instantaneous
- Continuous Current Rating In Amps [AEBJ]
- 5.000
- Features Provided [CBBL]
- Nonrenewable Fusible Element
- Maximum Voltage Rating In Volts [AFXE]
- 300.0 Ac And 300.0 Dc
- Interruption Indicator Method [AFXH]
- Terminal-Visual Or Alarm
- Short-Circuit/Interrupt Current Rating In Amps [CSQN]
- 300.0
- Overall Diameter [ADAV]
- 0.267 Inches Nominal
- Overall Length [ABHP]
- 1.781 Inches Nominal
- Special Features [FEAT]
- Green Color-Coded Indicating Pin
- Terminal Material [ABDM]
- Copper
- Terminal Surface Treatment [ABDN]
- Nickel Plated
