5920-00-244-7007
Electrical Fuse Link
5920002447007 002447007 R304 R204
An item which forms the replaceable fusible element of an electrical fuse and is prefabricated to a specific size and rating. It may be inclosed. See also FUSE, INCLOSED LINK and FUSE, OPEN LINK. View more Electrical Fuse Link
January 2023
16
Marketplace 5920-00-244-7007
Request a Quotation from participating marketplace vendors
Related Documents 5920-00-244-7007 5+ Documents (More...)
R204 FUSE LINK,ELECTRICAL 285 EA NS Request Quotation R304 FUSE LINK,ELECTRICAL 70 EA NS Request Quotation
Updated Every Day 5920-00-244-7007 RQST NE Updated Every Day 5920-00-244-7007 RQST Updated Every Day
enable JavaScript in your web browser . 2940-15-193-2291Filtro (1) Fluido P2940151932291 151932291 R304
/www.nsnlookup.com /fsg-29/fsc-2940/it 2940-15-193-2291 Filtro (1) Fluido P 2940151932291151932291 R304
enable JavaScript in your web browser . 2940-15-193-2291Filtro (1) Fluido P2940151932291 151932291 R304
Electrical Fuse Link 5920002447007 002447007 $1 a day Upgrade your Account Upgrade 5920-00-244-
enable JavaScript in your web browser . 2940-15-193-2291Filtro (1) Fluido P2940151932291 151932291 R304
/www.nsnlookup.com /fsg-29/fsc-2940/it 2940-15-193-2291 Filtro (1) Fluido P 2940151932291151932291 R304
-130-8086 Incandescent https//www.nsnlookup.com https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-244-7007
Electrical Fuse Link 5920002447007 002447007 enable JavaScript in your web browser . 4720-99 -780
Restrictions 5920-00-244-7007
5920-00-244-7007 is a Electrical Fuse Link that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5920-00-244-7007
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-00-244-7007
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5920-00-244-7007
- Part Number
- Manufacturer
- Status
- R304
- Manufacturer
- 75346 - H.R. Kirkland Company, Inc. (Active)
- Primary Buy
- Primary Buy
- R204
- 72076 - Federal Pacific Electric Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5920-00-244-7007
- Characteristic
- Specifications
- FIIG
- Specifications
- A01700

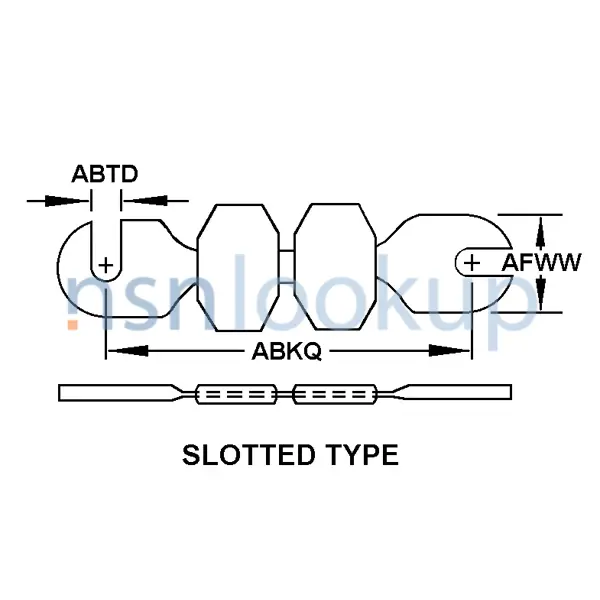

- Body Style [AAQL]
- Slotted Type
- Overall Length [ABHP]
- 2.250 Inches Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 3.250 Inches Nominal
- Mounting Slot Width [ABTD]
- 0.375 Inches Nominal
- Terminal Width [AFWW]
- 1.125 Inches Nominal
- Continuous Current Rating In Amps [AEBJ]
- 400.000
- Maximum Voltage Rating In Volts [AFXE]
- 600.0 Ac
- Circuit Over-Current Interruption Type [AFXF]
- Normal Instantaneous
- Interruption Indicator Method [AFXH]
- Opaque Body
- Case Material [ADTV]
- Fiber
- Precious Material [PRMT]
- Silver
- Precious Material And Location [PMLC]
- Terminal Surface Silver
NATO Stock Numbers Related to 5920-00-244-7007
Freight Information 5920-00-244-7007
5920-00-244-7007 has freight characteristics.. 5920-00-244-7007 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
