5920-00-228-7889
Open Link Fuse
5920002287889 002287889 24C 31M
A fuse in which the element is not inclosed. It does not contain an alarm indication of the element being severed. See also FUSE LINK, ELECTRICAL and FUSE, INCLOSED LINK. View more Open Link Fuse
January 2023
15
Marketplace 5920-00-228-7889
Request a Quotation from participating marketplace vendors
Related Documents 5920-00-228-7889 5+ Documents (More...)
218960513,4-GP-31M 4-GP-31M 7210218686584218686584 Hand Towel 7210218960513 218960513,4-GP-31M 4-GP-
31M 218960513,4-GP-31M 4-GP-31M https//www.nsnlookup.com /fsg-72/fsc-7210/ca https//www.nsnlookup.com
,A424-09 from Canada 4-GP-31M 218960513,4- GP -31M 4-GP-31M 7210218686584218686584 -31M 218960513,4-
GP- -31M 4-GP-31M 7210218686584218686584,A424-09 from 4-GP- 31M4-GP-31M 7210218686584218686584 https/
Hand Towel 7210218960513 218960513,4-GP-31M 4-GP-31M 218960513,4-GP-31M 4-GP-31M https//www.nsnlookup.com
GP-31M 218960513,4-GP-31M 4-GP-31M https//www.nsnlookup.com https//www.nsnlookup.com /fsg-53/fsc-5340
-21-896-0513 Hand Towel 7210218960513 218960513,4-GP-31M ,A424-09 from 4-GP- 31M 218960513,4-GP-31M 4
-72/fsc-7210 218960513,4-GP-31M 4-GP-31M 218960513,4 -GP-31M 4-GP-31M ( 4-GP-31M 218960513,4-GP-31M 4
Restrictions 5920-00-228-7889
5920-00-228-7889 is a Open Link Fuse that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5920-00-228-7889
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5920-00-228-7889
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5920-00-228-7889
- Part Number
- Manufacturer
- Status
- 31M
- Manufacturer
- 74006 - Reliance Comm/Tec Corp Lorain (Active)
- Primary Buy
- Primary Buy
- 24C
- 64959 - American Telephone And Telegraph Co (Replaced)
- Original Design
- Original Design
- 24C
- 06KW9 - Lucent Technologies Inc Dba Federal (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 24C
- 3B4M0 - Lucent Technologies Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5920-00-228-7889
- Characteristic
- Specifications
- FIIG
- Specifications
- A01700

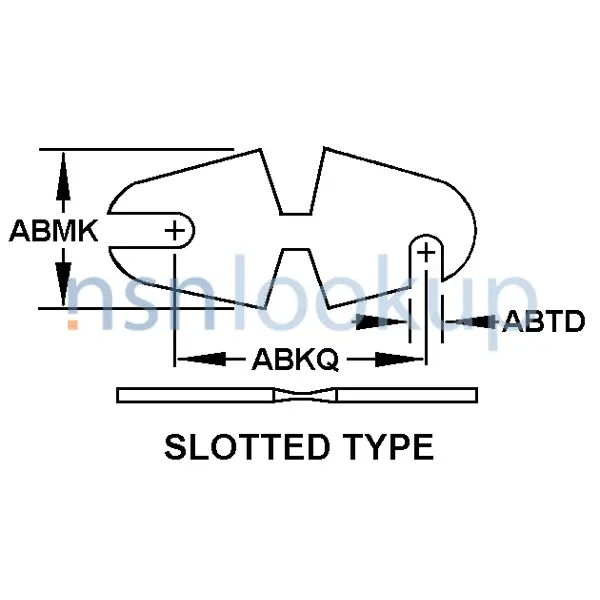

- Body Style [AAQL]
- Slotted Type
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 0.938 Inches Nominal
- Overall Width [ABMK]
- 0.406 Inches Nominal
- Mounting Slot Width [ABTD]
- 0.203 Inches Nominal
- Continuous Current Rating In Amps [AEBJ]
- 2.000
- Maximum Voltage Rating In Volts [AFXE]
- 240.0 Dc
- Circuit Over-Current Interruption Type [AFXF]
- Normal Instantaneous
- Interruption Indicator Method [AFXH]
- Visible Element
- Terminal Surface Treatment [ABDN]
- Nickel
NATO Stock Numbers Related to 5920-00-228-7889
Freight Information 5920-00-228-7889
5920-00-228-7889 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062060. A Sub NMFC of Z. It has a NMFC Description of FUSES NOI IN BOXES. 5920-00-228-7889 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5920-00-228-7889 is rated as class 100 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34740 which rates the freight between FCL and LCL. 5920-00-228-7889 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5920-00-228-7889 is not classified as a special type of cargo when transported by water. 5920-00-228-7889 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
