5915-01-386-8721
Radio Frequency Interference Filter
5915013868721 013868721 CDEFX400025B6
An item designed to suppress undesired (interfering) frequencies and have a minimal effect on the desired frequencies when inserted in an electrical power circuit. Excludes items which consist of a single capacitor, inductor, resistor, or devices consisting of only two or more circuit elements of the same basic name. Excludes FILTER, LOW PASS and SUPPRESSOR, IGNITION INTERFERENCE. For items designed to be inserted in a line which is primarily intended to carry high frequency waves modulated with signals, such as antenna lead-in, see FILTER, BAND SUPPRESSION and FILTER, BAND PASS. See also LIMITER, ELECTRICAL NOISE. View more Radio Frequency Interference Filter
January 2023
6
Marketplace 5915-01-386-8721
Request a Quotation from participating marketplace vendors
Related Documents 5915-01-386-8721 2+ Documents (More...)
5915-01-386-8721 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5915/us 5915-01-386-8721
5915-01-386-8721 RQST NE Related Documents 5915-01-386-8721 2+ Documents ( More... ) https//www.nsnlookup.com
Restrictions 5915-01-386-8721
5915-01-386-8721 is a Radio Frequency Interference Filter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal. This item is sensitive Electromagnetic Interference.
Import and Export 5915-01-386-8721
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5915-01-386-8721
- United Kingdom (ZK01)
- Effective Date:
- 1 Feb 1994
Approved Sources 5915-01-386-8721
- Part Number
- Manufacturer
- Status
- CDEFX400025B6
- Manufacturer
- 05245 - Te Connectivity Corporation (Active)
- Primary Buy
- Primary Buy
- CDEFX400025B6
- U4719 - Rainford Group Ltd (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5915-01-386-8721
- Characteristic
- Specifications
- FIIG
- Specifications
- A047B0

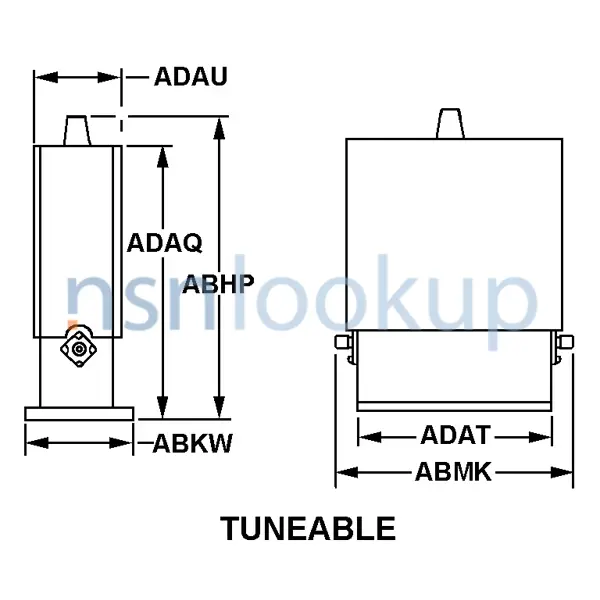

- Body Length [ADAQ]
- 26.000 Inches Nominal
- Body Width [ADAT]
- 22.500 Inches Nominal
- Full Load Insertion Loss Frequencies In Megahertz [AHCJ]
- 20.0
- Functional Terminal Type And Quantity [CQDW]
- 1 Tab, Solder Lug Input-Output/Ground
- Mounting Facility Type And Quantity [AXHR]
- 1 Bracket
- Operating Current Rating Per Function In Amps [AHBC]
- 100.0 Blank And 120.0 Blank
- Operating Voltage Rating And Type Per Function [CQGC]
- 480.0 Volts Ac Blank
- Inclosure Type [AKNA]
- Hermetically Sealed Or Encased
- Power Line Frequency Rating Per Function In Hertz [AHBB]
- 60.0 Blank
- Overall Height [ABKW]
- 7.000 Inches Nominal
- Overall Length [ABHP]
- 34.000 Inches Nominal
- Overall Width [ABMK]
- 24.500 Inches Nominal
- Unpackaged Unit Weight [PKWT]
- 205.000 Pounds
- Style Designator [STYL]
- Tuneable
Similar Supply Items to 5915-01-386-8721
Freight Information 5915-01-386-8721
5915-01-386-8721 has freight characteristics.. 5915-01-386-8721 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
