5915-01-373-6379
Band Pass Filter
5915013736379 013736379 A3098002 TE3180 369B1
An item designed to pass frequencies within a specified range (band) and to suppress frequencies outside the range (band). Excludes a single inductance, or a single capacitance, or a single resistance. See COIL (as modified); REACTOR; CAPACITOR (as modified); and RESISTOR (as modified). View more Band Pass Filter
May 2023
2
Marketplace 5915-01-373-6379
Request a Quotation from participating marketplace vendors
Related Documents 5915-01-373-6379 4+ Documents (More...)

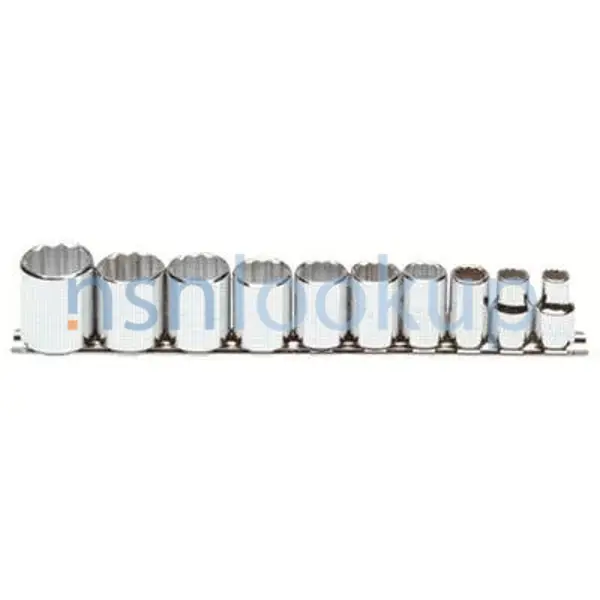

Photo 1/3 5915-01-373-6379 Photo 2/3 NSN 5915-01-373-6379 (Identification) 3/3 - - - 1.
BUY NE FedMall Updated Every Day 5915-01-373-6379 RQST NE Updated Every Day 5915-01-373-6379 RQST
/fsg-59/fsc-5915/us
5310006930622006930622,,7521643 . - High Performance (Active) https/ https//www.nsnlookup.com /fsg-59/fsc-5915/us 5915-01-373-6379
Band Pass Filter 5915013736379 013736379 Upgrade your Account Upgrade 5915-01-373-6379Band Pass
Restrictions 5915-01-373-6379
5915-01-373-6379 is a Band Pass Filter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5915-01-373-6379
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5915-01-373-6379
- US Army (A918)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
Approved Sources 5915-01-373-6379
- Part Number
- Manufacturer
- Status
- A3098002
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- TE3180
- 0B3G4 - Temex Electronics Inc. (Active)
- Secondary Buy
- Secondary Buy
- 369B1
- 00136 - Microsemi Corp. - High Performance (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5915-01-373-6379
- Characteristic
- Specifications
- FIIG
- Specifications
- A047B0
- End Item Identification [AGAV]
- 6625-01-276-5446 Test Set,Modem
- Body Height [ADAU]
- 0.500 Inches Nominal
- Body Length [ADAQ]
- 1.750 Inches Maximum
- Body Width [ADAT]
- 0.660 Inches Maximum
- Discrimination At Specified Frequencies Per Function In Decibels [CRBC]
- 20.0 Nominal Blank
- Frequency Band Width Per Function [CRBB]
- 34.73 Megahertz Blank And 35.27 Megahertz Blank
- Functional Terminal Type And Quantity [CQDW]
- 1 Pin Input 1St Function1 Pin Output 2Nd Function2 Pin Ground 3Rd Function
- Mounting Facility Type And Quantity [AXHR]
- 4 Pin
- Operating Temp Range [AFGA]
- +0.0/+85.0 Deg Celsius
- Inclosure Type [AKNA]
- Encased
- Insertion Loss At Reference Frequency Per Function In Decibels [CQDR]
- 4.0 Blank
- Load Impedance Per Function [AHAS]
- 50.0 Ohms Blank
- Reference Frequency Per Function [AHAJ]
- 35.0 Megahertz Blank
- Source Impedance Rating Per Function [AHAQ]
- 50.0 Ohms Blank
- Overall Height [ABKW]
- 9.720 Inches Nominal
- Voltage Standing Wave Ratio Per Function [AHBZ]
- 1.5 Single Band Pass
- Specified Frequencies Of Discrimination Per Function [CQFC]
- 34.50 Megahertz Blank And 35.50 Megahertz Blank
- Style Designator [STYL]
- Rectangular Terminal/Terminals On One Surface
DLA Procurement Analysis 5915-01-373-6379
Management Data 5915-01-373-6379
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5915-01-373-6379
Freight Information 5915-01-373-6379
5915-01-373-6379 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061990. A Sub NMFC of X. It has a NMFC Description of ELECTRICAL EQUIP:FILTERS. 5915-01-373-6379 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58500 which rates the freight between FCL and LCL. 5915-01-373-6379 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 5915-01-373-6379 is not classified as a special type of cargo when transported by water. 5915-01-373-6379 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5915-01-373-6379
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5915-01-373-6379 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
