5915-01-140-9207
Capacitor-Resistor
5915011409207 011409207 801909
An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist. View more Capacitor-Resistor
January 2023
4
Marketplace 5915-01-140-9207
Request a Quotation from participating marketplace vendors
Related Documents 5915-01-140-9207 5+ Documents (More...)
5915011409207011409207 Day 5915-01-140-9207 RQST Updated Every Day 5915-01-140-9207 RQST NE Related
Documents 5915-01-140-9207 5915011409207011409207 Day 5915-01-140-9207 RQST Updated Every Day 5915-01
5915-12-309-6248 5915-21-820-2229 5915-12-378-0385 https//www.nsnlookup.com /fsg-59/fsc-5915/us 5915-01-140-9207
Capacitor-Resistor 5915011409207 011409207 5915-01-140-9207 RQST Updated Every Day 5915-01 https
Capacitor-Resistor 5915011409207 011409207 9207 DEMIL: A | DEMILI : | CRITICALITY : X | HMIC https
320-3346 5915-12-188-0129 5915-12-309-6248 5915-21-820-2229 5915-12-378-0385 5915-12-346-6323 5915-01-140-9207
Capacitor-Resistor 2590992153053992153053 551-3579 5915-15-112-6291 https//www.nsnlookup.com / 5915-01-140-9207
https//www.nsnlookup.com /fsg- 992153053 188-0129 5915-12-309-6248 5915-21-820-2229 5915-12-378-0385 011409207
NE Related https 188-0129 5915-12-309-6248 5915-21-820-2229 5915-12-378-0385 5915-12-346-6323 5915-01-140-9207
5915151126291151126291 https 188-0129 5915-12-309-6248 5915-21-820-2229 5915-12-378-0385 5915-12-346-6323 5915-01-140-9207
Restrictions 5915-01-140-9207
5915-01-140-9207 is a Capacitor-Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5915-01-140-9207
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5915-01-140-9207
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5915-01-140-9207
- Part Number
- Manufacturer
- Status
- 801909
- Manufacturer
- 23598 - Ross Engineering Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5915-01-140-9207
- Characteristic
- Specifications
- FIIG
- Specifications
- A13500
- Electrical Resistance Per Function [CNQX]
- 1.2 Megohms Resistor R1 And 120.0 Megohms Resistor R2
- Assembly Form [ALPM]
- Molded Together
- Capacitance Value Per Function [CNQR]
- 6.2 Picofarads All Capacitors
- Mounting Facility Quantity [AKPV]
- 4
- Mounting Hole Diameter [ABTB]
- 0.250 Inches Nominal
- Mounting Method [AXGY]
- Unthreaded Hole

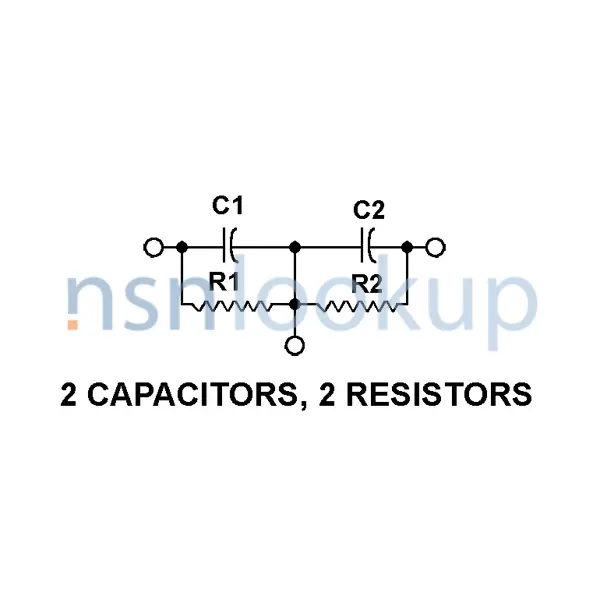

- Schematic Diagram Designator [AEBZ]
- 2 Capacitors, 2 Resistors
- Overall Diameter [ADAV]
- 6.000 Inches Nominal
- Overall Length [ABHP]
- 13.750 Inches Nominal
- Terminal Type And Quantity [CCFF]
- 1 Screw And 2 Wire Lead
NATO Stock Numbers Related to 5915-01-140-9207
Freight Information 5915-01-140-9207
5915-01-140-9207 has freight characteristics managed by Germany.It has a National Motor Freight Classification (NMFC) of 061400. A Sub NMFC of X. It has a NMFC Description of CONDENSERS/PARTS NOI/CAPACITORS. 5915-01-140-9207 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5915-01-140-9207 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34450 which rates the freight between FCL and LCL. 5915-01-140-9207 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5915-01-140-9207 is not classified as a special type of cargo when transported by water. 5915-01-140-9207 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
