5915-00-933-2638
Capacitor-Resistor
5915009332638 009332638 SMC523317 RC100-440A C523317
An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist. View more Capacitor-Resistor
January 2023
7
Marketplace 5915-00-933-2638
Request a Quotation from participating marketplace vendors
Related Documents 5915-00-933-2638 1+ Documents (More...)
United States (US) 4. 5915-00-933-2638 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5915-00-933-2638 RQST Updated Every Day 5915-00-933-2638 RQST NE Related Documents
Restrictions 5915-00-933-2638
5915-00-933-2638 is a Capacitor-Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5915-00-933-2638
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5915-00-933-2638
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5915-00-933-2638
- Part Number
- Manufacturer
- Status
- SMC523317
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- RC100-440A
- 58364 - Bycap Inc (Active)
- Secondary Buy
- Secondary Buy
- C523317
- 16758 - General Motors Corp Delco (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5915-00-933-2638
- Characteristic
- Specifications
- FIIG
- Specifications
- A13500
- Electrical Resistance Per Function [CNQX]
- 10.0 Kilohms All Resistors
- Assembly Form [ALPM]
- Encased
- Capacitance Tolerance Per Function In Percent [CNQS]
- -5.0/+5.0 All Capacitors
- Capacitance Value Per Function [CNQR]
- 220.0 Picofarads All Capacitors
- Case Material [ADTV]
- Plastic
- Case Surface Treatment [ADTY]
- Plastic, Phenolic
- Dc Voltage Rating Per Function In Volts [CNQT]
- 10.0 All Capacitors
- Mounting Facility Quantity [AKPV]
- 3
- Mounting Method [AXGY]
- Terminal
- Resistance Tolerance Per Function In Percent [CNQY]
- -10.0/+10.0 All Resistors
- Resistor Power Dissipation Rating Per Function In Watts [CNQZ]
- 0.125 All Resistors

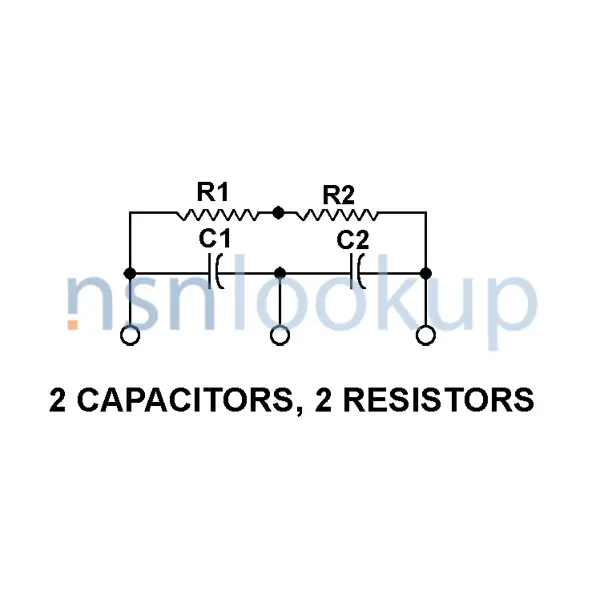

- Schematic Diagram Designator [AEBZ]
- 2 Capacitors, 2 Resistors
- Overall Height [ABKW]
- 0.140 Inches Nominal
- Overall Length [ABHP]
- 0.580 Inches Nominal
- Overall Width [ABMK]
- 0.350 Inches Nominal
- Terminal Type And Quantity [CCFF]
- 3 Wire Lead
