5915-00-933-2634
Capacitor-Resistor
5915009332634 009332634 SMC523311 C523311
An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist. View more Capacitor-Resistor
August 2023
8
Marketplace 5915-00-933-2634
Request a Quotation from participating marketplace vendors
Related Documents 5915-00-933-2634 1+ Documents (More...)
United States (US) 4. 5915-00-933-2634 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5915-00-933-2634 RQST Updated Every Day 5915-00-933-2634 RQST NE Related Documents
Restrictions 5915-00-933-2634
5915-00-933-2634 is a Capacitor-Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5915-00-933-2634
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5915-00-933-2634
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5915-00-933-2634
- Part Number
- Manufacturer
- Status
- SMC523311
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- C523311
- 16758 - General Motors Corp Delco (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5915-00-933-2634
- Characteristic
- Specifications
- FIIG
- Specifications
- A13500
- Electrical Resistance Per Function [CNQX]
- 1.8 Kilohms Resistor R1
- Electrical Resistance Per Function [CNQX]
- 12.0 Kilohms Resistor R2
- Electrical Resistance Per Function [CNQX]
- 270.0 Ohms Resistor R3
- Assembly Form [ALPM]
- Molded Together
- Capacitance Tolerance Per Function In Percent [CNQS]
- -5.0/+5.0 Capacitor C3
- Capacitance Tolerance Per Function In Percent [CNQS]
- -20.0/+20.0 Capacitor C1
- Capacitance Tolerance Per Function In Percent [CNQS]
- -20.0/+20.0 Capacitor C2
- Capacitance Value Per Function [CNQR]
- 1000.0 Picofarads Capacitor C1
- Capacitance Value Per Function [CNQR]
- 1000.0 Picofarads Capacitor C2
- Capacitance Value Per Function [CNQR]
- 68.0 Picofarads Capacitor C3
- Case Material [ADTV]
- Plastic
- Case Surface Treatment [ADTY]
- Plastic, Phenolic
- Dc Voltage Rating Per Function In Volts [CNQT]
- 20.0 All Capacitors
- Mounting Facility Quantity [AKPV]
- 6
- Mounting Method [AXGY]
- Terminal
- Resistance Tolerance Per Function In Percent [CNQY]
- -10.0/+10.0 All Resistors
- Resistor Power Dissipation Rating Per Function In Watts [CNQZ]
- 0.100 All Resistors
- Schematic Diagram Designator [AEBZ]

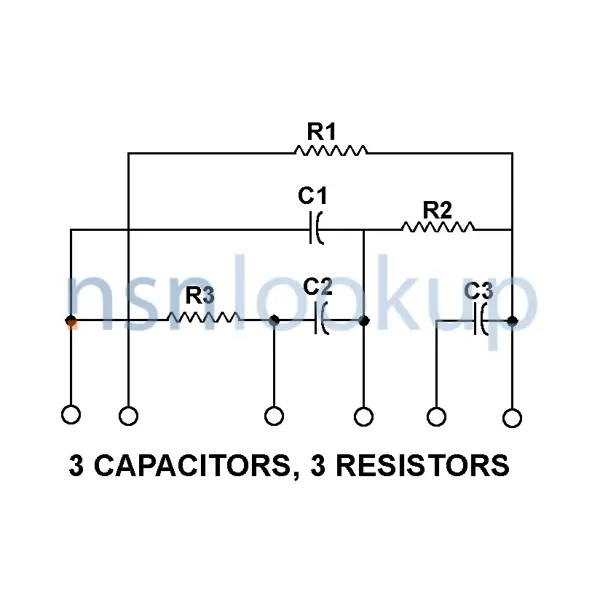

- 3 Capacitors, 3 Resistors
- Overall Height [ABKW]
- 0.160 Inches Maximum
- Overall Length [ABHP]
- 0.640 Inches Maximum
- Overall Width [ABMK]
- 0.525 Inches Maximum
- Terminal Type And Quantity [CCFF]
- 6 Wire Lead
