5915-00-660-9152
Capacitor-Resistor
5915006609152 006609152 PC50
An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist. View more Capacitor-Resistor
May 2023
4
Marketplace 5915-00-660-9152
Request a Quotation from participating marketplace vendors
Related Documents 5915-00-660-9152 5+ Documents (More...)
PC50 Every Day 5999 PC50 -HO - 006 Decal 7690661579217661579217,PC50-HO- Ltd ) ,PC50-HO- Ltd (Obsolete
HO- Ltd ,PC50-HO- Ltd (Obsolete) ,PC50-HO- Ltd (Obsolete PC50 -HO - 006 Decal PC50 -HO - 006 Decal 7690661579217661579217
Decal 7690661579217661579217,PC50-HO- Ltd ) ,PC50-HO- Ltd (Obsolete) Decal ,PC50-HO- Ltd (Obsolete)
,PC50-HO- Ltd (Obsolete) https//www.nsnlookup.com /fsg-59/fsc-5915/us 5915-00-660-9152 Capacitor-Resistor
Electrical Clip 5999981075605981075605,PC50 5999981075605981075605,PC50 Every Day 5999 PC50 -HO - 006
Decal 7690661579217661579217,PC50-HO- Ltd ) ,PC50-HO- Ltd (Obsolete) Decal ,PC50-HO- Ltd (Obsolete)
Jack Box 5935997608507997608507,PC50 -HO- Ltd (Obsolete) Primary Buy RNCC 3 RNVC 2 DAC 4 PC50 https/
-HO- Ltd ,PC50-HO- Ltd (Obsolete) ,PC50-HO- Ltd (Obsolete PC50 -HO - 006 Decal Jack Box 5935997608507997608507
-HO-006 Decal 7690661579217661579217,PC50-HO-006 Decal 7690661579217661579217,PC50-HO- Ltd (Obsolete)
Decal ,PC50-HO- Ltd (Obsolete) Primary Buy RNCC 3 RNVC 2 DAC 4 PC50-HO-006 https//www.nsnlookup.com
Restrictions 5915-00-660-9152
5915-00-660-9152 is a Capacitor-Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5915-00-660-9152
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5915-00-660-9152
- US Navy (N9BN)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5915-00-660-9152
- Part Number
- Manufacturer
- Status
- PC50
- Manufacturer
- 71590 - Crl Components Inc (Obsolete)
- Original Design
- Original Design
- PC50
- 25244 - Johnson Controls Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5915-00-660-9152
- Characteristic
- Specifications
- FIIG
- Specifications
- A13500
- Electrical Resistance Per Function [CNQX]
- 47.0 Kilohms Resistor R1
- Assembly Form [ALPM]
- Board Mounted
- Board Material [ABCV]
- Ceramic
- Capacitance Tolerance Per Function In Percent [CNQS]
- -20.0/+50.0 All Capacitors
- Capacitance Value Per Function [CNQR]
- 100.0 Picofarads All Capacitors
- Case Material [ADTV]
- Plastic, Phenolic
- Dc Voltage Rating Per Function In Volts [CNQT]
- 150.0 All Capacitors
- Mounting Method [AXGY]
- Terminal
- Resistance Tolerance Per Function In Percent [CNQY]
- -20.0/+20.0 Resistor R1
- Resistor Power Dissipation Rating Per Function In Watts [CNQZ]
- 0.200 Resistor R1
- Schematic Diagram Designator [AEBZ]

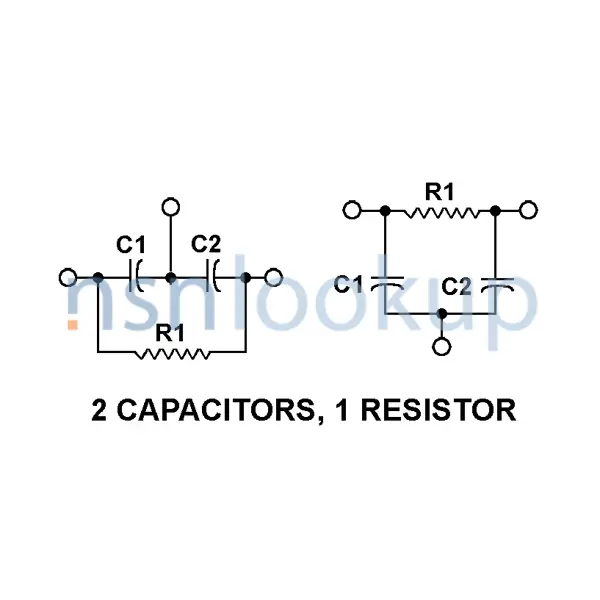

- 2 Capacitors, 1 Resistor
- Overall Height [ABKW]
- 0.125 Inches Nominal
- Overall Length [ABHP]
- 0.531 Inches Nominal
- Overall Width [ABMK]
- 0.219 Inches Nominal
- Terminal Type And Quantity [CCFF]
- 3 Wire Lead
