5915-00-186-0278
Capacitor-Resistor
5915001860278 001860278 NR690 905333-1 4736-653J
An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist. View more Capacitor-Resistor
May 2023
10
Marketplace 5915-00-186-0278
Request a Quotation from participating marketplace vendors
Related Documents 5915-00-186-0278 4+ Documents (More...)
RQST NE Updated Every Day 5915-00-186-0278 RQST Updated Every Day 5915-00-186-0278 RQST NE Related Documents
5915-00-186-0278 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5915/us 5915-00-186-0278
Capacitor-Resistor 5915001860278 001860278 your Account Upgrade 5915-00-186-0278Capacitor-Resistor5915001860278
001860278 NR690 905333-1 4736-653J www.nsnlookup.com /fsg-59/fsc-5915/us 5915-00-186-0278 Capacitor-Resistor
Capacitor-Resistor 5915001860278 001860278 day Upgrade your Account Upgrade 5915-00-186-0278Capacitor-Resistor5915001860278
001860278 NR690 905333 Pipe Locknut 4730015949740 015949740,905333 RNVC 2 DAC 5 905333-102 49956 - Raytheon
Capacitor-Resistor 5915001860278 001860278 day Upgrade your Account Upgrade 5915-00-186-0278Capacitor-Resistor5915001860278
001860278 NR690 905333-1 015949740,905333 Part NumberManufacturerStatus1855 https//www.nsnlookup.com
Restrictions 5915-00-186-0278
5915-00-186-0278 is a Capacitor-Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5915-00-186-0278
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5915-00-186-0278
- US Air Force (FXGX)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
Approved Sources 5915-00-186-0278
- Part Number
- Manufacturer
- Status
- NR690
- Manufacturer
- 54294 - Shallcross Inc (Active)
- Primary Buy
- Primary Buy
- 4736-653J
- 16546 - Mepco/Centralab A North American (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 905333-1
- 05257 - General Dynamics Land Systems - (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5915-00-186-0278
- Characteristic
- Specifications
- FIIG
- Specifications
- A13500
- Electrical Resistance Per Function [CNQX]
- 10.0 Kilohms Resistor R1
- Assembly Form [ALPM]
- Encased
- Capacitance Value Per Function [CNQR]
- 65200.0 Picofarads Capacitor C1
- Dc Voltage Rating Per Function In Volts [CNQT]
- 50.0 Capacitor C1
- Mounting Method [AXGY]
- Terminal
- Resistance Tolerance Per Function In Percent [CNQY]
- -5.0/+5.0 Resistor R1
- Resistor Power Dissipation Rating Per Function In Watts [CNQZ]
- 0.250 Resistor R1
- Schematic Diagram Designator [AEBZ]

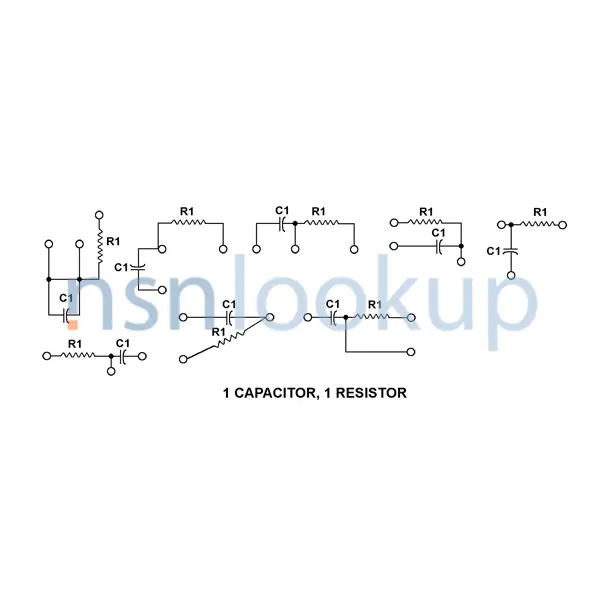

- 1 Capacitor, 1 Resistor
- Overall Height [ABKW]
- 0.437 Inches Maximum
- Overall Length [ABHP]
- 1.875 Inches Maximum
- Overall Width [ABMK]
- 0.938 Inches Maximum
- Terminal Type And Quantity [CCFF]
- 3 Pin
