5910-01-653-7694
Electrolytic Fixed Capacitor
5910016537694 016537694 BAS170WS-G
A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated. View more Electrolytic Fixed Capacitor
January 2023
2
Marketplace 5910-01-653-7694
Request a Quotation from participating marketplace vendors
Related Documents 5910-01-653-7694 1+ Documents (More...)
Electrolytic Fixed Capacitor 5910016537694 RQST NE Updated Every Day 5910-01-653-7694 RQST Updated Every
/fsg-59/fsc-5910/us 5910-01-653-7694 Electrolytic Fixed Capacitor 5910016537694 RQST NE Updated Every
Restrictions 5910-01-653-7694
5910-01-653-7694 is a Electrolytic Fixed Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5910-01-653-7694
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-01-653-7694
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2016
Approved Sources 5910-01-653-7694
- Part Number
- Manufacturer
- Status
- BAS170WS-G
- Manufacturer
- 3FYJ9 - Vishay Electric Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5910-01-653-7694
- Characteristic
- Specifications
- FIIG
- Specifications
- A010B0
- Body Height [ADAU]
- 1.25 Inches Nominal
- Body Length [ADAQ]
- 1.65 Inches Nominal

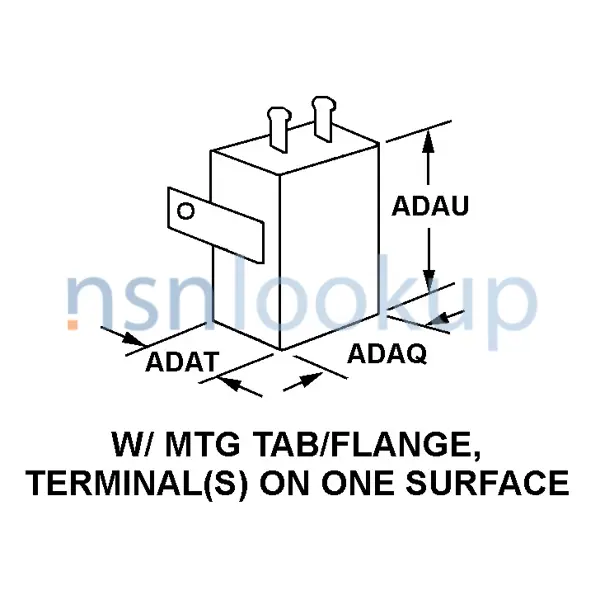

- Body Style [AAQL]
- W/Mtg Tabs/Flanges, Terminal(S) On One Surface
- Body Width [ADAT]
- 1.10 Inches Nominal
- Capacitance Value Per Section [CQBQ]
- 1.5 Picofarads All Sections
- Case Material [CWJK]
- Plastic
- Dissipation Factor At Reference Temp In Percent [CWPM]
- 25.0
- Nonderated Operating Temp [CQJJ]
- 125.0 Deg Celsius Maximum
- Terminal Type And Quantity [TTQY]
- 2 Wire Hook/Loop
Similar Supply Items to 5910-01-653-7694
Freight Information 5910-01-653-7694
5910-01-653-7694 has freight characteristics managed by the Republic of Korea.. 5910-01-653-7694 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
