5910-01-363-9122
Electrolytic Fixed Capacitor
5910013639122 013639122 UTCM33M25V
A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated. View more Electrolytic Fixed Capacitor
May 2023
3
Marketplace 5910-01-363-9122
Request a Quotation from participating marketplace vendors
Related Documents 5910-01-363-9122 1+ Documents (More...)
Updated Every Day 5910-01-363-9122 RQST NE Related Documents 5910-01-363-9122 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-59/fsc-5910/us 5910-01-363-9122 Electrolytic Fixed Capacitor 5910013639122
Restrictions 5910-01-363-9122
5910-01-363-9122 is a Electrolytic Fixed Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5910-01-363-9122
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-01-363-9122
- US Air Force (FXGX)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FXTX
Approved Sources 5910-01-363-9122
- Part Number
- Manufacturer
- Status
- UTCM33M25V
- Manufacturer
- 6L611 - Allen Robert G Inc (Obsolete)
- Original Design
- Original Design
Datasheet 5910-01-363-9122
- Characteristic
- Specifications
- FIIG
- Specifications
- A010B0
- Capacitance Value Per Section [CQBQ]
- 33.000 Microfarads Single Section
- Nonderated Continuous Voltage Rating And Type Per Section [CQWM]
- 25.0 Dc Single Section

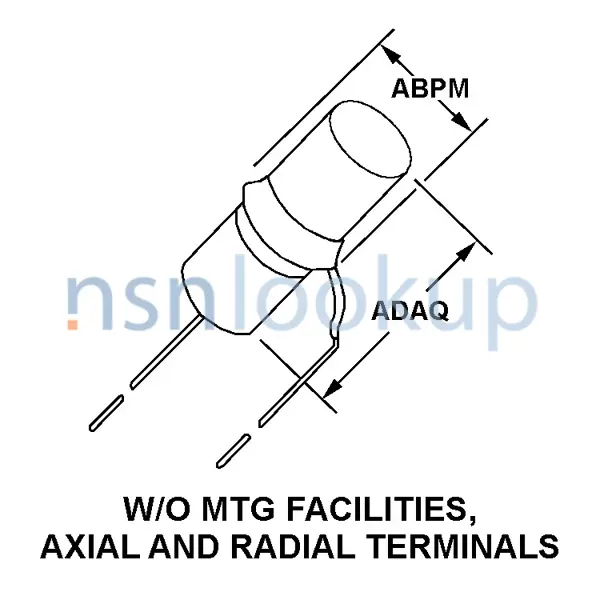

- Body Style [AAQL]
- W/O Mtg Facilities, Axial And Radial Terminals
- Body Diameter [ABPM]
- 6.3 Millimeters Nominal
- Body Length [ADAQ]
- 8.0 Millimeters Nominal
- Schematic Diagram Designator [AEBZ]
- No Common Or Grounded Electrode(S)
- Terminal Type And Quantity [TTQY]
- 2 Uninsulated Wire Lead
- Terminal Length [ABJT]
- 25.0 Millimeters Nominal
- Terminal Diameter [AEBT]
- 0.45 Millimeters Nominal
- Center To Center Distance Between Terminals Parallel To Length [AEBP]
- 2.5 Millimeters Nominal
- Case Insulation Material [CWSZ]
- Plastic
- Electrical Polarization [AECQ]
- Polarized
- Reliability Indicator [AARG]
- Not Established
- Terminal Surface Treatment [CWSG]
- Solder
DLA Procurement Analysis 5910-01-363-9122
Management Data 5910-01-363-9122
Similar Supply Items to 5910-01-363-9122
Freight Information 5910-01-363-9122
5910-01-363-9122 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061400. A Sub NMFC of X. It has a NMFC Description of CONDENSERS/PARTS NOI/CAPACITORS. 5910-01-363-9122 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34450 which rates the freight between FCL and LCL. 5910-01-363-9122 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5910-01-363-9122 is not classified as a special type of cargo when transported by water. 5910-01-363-9122 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
