5910-01-246-3514

Electrolytic Fixed Capacitor

5910012463514 012463514 1166178-1 37124

A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated. View more Electrolytic Fixed Capacitor

5910-01-246-3514 CAPACITOR,FIXED,ELECTROLYTIC 5910012463514 012463514

Managed by United States
NSN Created on 12 Dec 1986
Data Last Changed
May 2023
NATO Update Count
5
NATO Data Quality
AAQL Style 15A for 5910-01-246-3514 1/2
NSN 5910-01-246-3514 (Identification) 1/2
AEBZ Style 1C for 5910-01-246-3514 2/2
NSN 5910-01-246-3514 (Identification) 2/2

5910-01-246-3514 Stock and Availability Marketplace 5910-01-246-3514

Need Help?
Request a Quotation from participating marketplace vendors
FedMallFedMall.mil Updated Every 15 Minutes
5910-01-246-3514 BUY NE FedMallFedMall.mil
eBay Updated Every Day
5910-01-246-3514 RQST NE eBay
eBay Updated Every Day
5910-01-246-3514 RQST eBay
Amazon Updated Every Day
5910-01-246-3514 RQST NE Amazon

5910-01-246-3514 Related Documents Related Documents 5910-01-246-3514 5+ Documents (More...)

1166178-1 37124 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically
BUY NE FedMall Updated Every Day 5910-01-246-3514 RQST NE Updated Every Day 5910-01-246-3514 RQST
Updated Every Day 5910-01-246-3514 RQST NE Related Documents 5910-01-246-3514 5+ Documents ( More...
enable JavaScript in your web browser . 6810-21-866-1478Reag Dl-Iso-Leucine6810218661478 218661478 37124
day Upgrade your Account Upgrade 6340-01-707-8821Indicator Light6340017078821 017078821 LED-40-17-HE-37124
for $1 a day Upgrade your Account Upgrade 5310-01-241-7125Hexagon Plain Nut5310012417125 012417125 37124
Upgrade your Account Upgrade 6605-00-935-6904Display Set Computer6605009356904 009356904 40118-3 215-37124
01-241-7125 Hexagon Plain Nut 5310012417125 012417125 Incomplete Reference RNCC 3 RNVC 1 DAC 5 215-37124
Upgrade your Account Upgrade 6605-00-935-6904Display Set Computer6605009356904 00935690440118-3 215-37124
enable JavaScript in your web browser . 8010-01-681-5176Primer Coating8010016815176 016815176 AVIOX 37124
www.nsnlookup.com /fsg-80/fsc-8010/us 8010-01-681-5176 Primer Coating 8010016815176016815176 AVIOX 37124
enable JavaScript in your web browser . 8010-01-681-5176Primer Coating8010016815176 016815176 AVIOX 37124
JavaScript in your web browser . 8010-17-124-5831Primer Coating8010171245831 171245831 AVIOX CF PRIMER 37124
us 1680-01-483-2358 Spring 1680014832358 014832358,37124 512-7186 Part NumberManufacturerStatus6284-37124
5310-01-241-7125 Hexagon Plain Nut 5310012417125 012417125 Computer6605009356904 00935690440118-3 215-37124

5910-01-246-3514 Demil Restrictions 5910-01-246-3514

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: P | PMIC: A | EDC: | ADPEC:

5910-01-246-3514 is a Electrolytic Fixed Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

5910-01-246-3514 HTS and ScheduleB Import and Export 5910-01-246-3514

5910-01-246-3514 End Users End Users 5910-01-246-3514

US Navy (N9BN)
Effective Date:
1 Jul 2005
Former MOE Rule:
N9ND
Supplementary Collaborators:
KE

5910-01-246-3514 Manufacturers Approved Sources 5910-01-246-3514

5910-01-246-3514 Technical Data Datasheet 5910-01-246-3514

Characteristic
Specifications
FIIG
A010B0
Electrical Polarization [AECQ]
Polarized
Body Height [ADAU]
6.000 Inches Nominal
Body Length [ADAQ]
4.500 Inches Maximum
Body Style [AAQL]

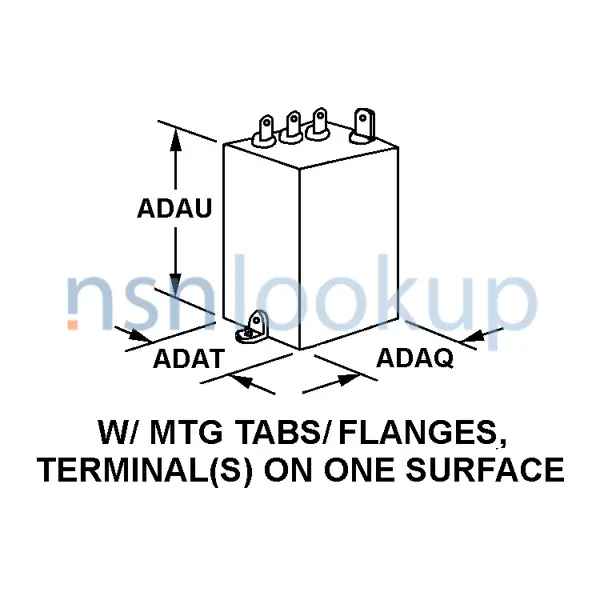

W/Mtg Tabs/Flanges, Terminal(S) On One Surface
Body Width [ADAT]
2.250 Inches Maximum
Capacitance Value Per Section [CQBQ]
80.000 Microfarads Single Section
Capacitive Electrode Material [CWNJ]
Aluminum
Case Material [CWJK]
Metal
Center To Center Distance Between Terminals Parallel To Length [AEBP]
2.500 Inches Nominal
Features Provided [CBBL]
Hermetically Sealed Case
Mounting Facility Type And Quantity [AXHR]
5 Unthreaded Mounting Holes
Nonderated Continuous Voltage Rating And Type Per Section [CQWM]
500.0 Dc Single Section
Nonderated Operating Temp [CQJJ]
-49.0 Deg Celsius Minimum And 85.0 Deg Celsius Maximum
Reliability Indicator [AARG]
Not Established
Schematic Diagram Designator [AEBZ]
No Common Or Grounded Electrode(S)
Tolerance Range Per Section [CRTP]
-0.00 To 50.00 Percent Single Section
Unthreaded Mounting Hole Diameter [AEBV]
3.500 Inches Nominal
Terminal Length [ABJT]
0.750 Inches Nominal
Terminal Diameter [AEBT]
0.190 Inches Nominal
Terminal Type And Quantity [TTQY]
2 Threaded Stud
