5910-01-237-5067
Capacitor Retainer
5910012375067 012375067 0180-1970
An item primarily designed to position and/or restrain the movement of one or more capacitors in their normal mounting position. Excludes CLIP, ELECTRICAL and CLAMP, LOOP. View more Capacitor Retainer
May 2023
6
Marketplace 5910-01-237-5067
Request a Quotation from participating marketplace vendors
Related Documents 5910-01-237-5067 1+ Documents (More...)
Request a Quotation from participating marketplace vendors Request Updated Every Day 5910-01-237-5067
RQST NE Updated Every Day 5910-01-237-5067 RQST Updated Every Day 5910-01-237-5067 RQST NE Related Documents
Restrictions 5910-01-237-5067
5910-01-237-5067 is a Capacitor Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5910-01-237-5067
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-01-237-5067
- National Security Agency (DGX1)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- DTX1
- Supplementary Receivers:
- TX
- Spain (YB01)
- Effective Date:
- 1 Aug 2003
Approved Sources 5910-01-237-5067
- Part Number
- Manufacturer
- Status
- 0180-1970
- Manufacturer
- 7ZXR5 - Keysight Technologies Inc (Active)
- Primary Buy
- Primary Buy
- 0180-1970
- 1LQK8 - Keysight Technologies, Inc. (Replaced)
- Original Design
- Original Design
- 0180-1970
- 28480 - Hewlett-Packard Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5910-01-237-5067
- Characteristic
- Specifications
- FIIG
- Specifications
- A062A0

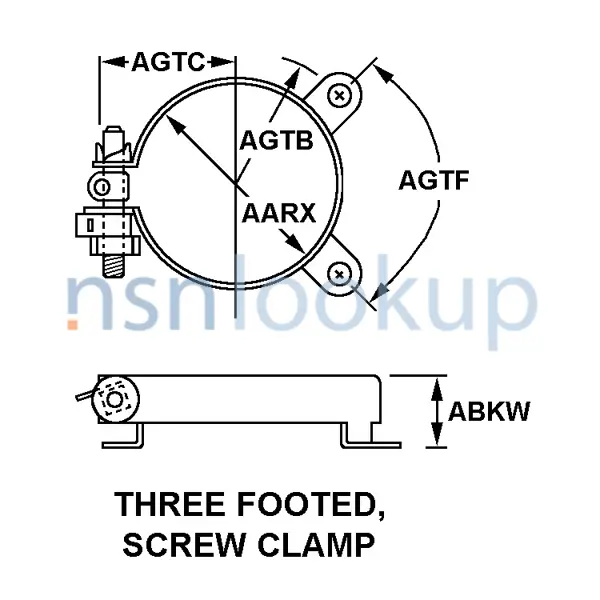

- Distance From Retainer Center To Centerline Of Mounting Facility [AGTB]
- 1.304 Inches Nominal
- Distance From Retainer Center To Mounting Facility Center At Loop Tightening Device [AGTG]
- 1.634 Inches Nominal
- Accommodated Item Securing Device Type [AGTM]
- Holes
- Angle Between Adjacent Mounting Facilities In Deg [AGTF]
- 30.0
- Distance Between Mounting Facility Centers [AEJN]
- 3.000 Inches Nominal Single Mounting Facility Single Center Group
- Material [MATT]
- Steel
- Mounting Facility Type And Quantity [AXHR]
- 3 Unthreaded Hole Single Mounting Facility
- Inside Diameter [AARX]
- 2.562 Inches Maximum
- Overall Height [ABKW]
- 1.125 Inches Nominal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.176 Inches Nominal Single Mounting Facility
- Style Designator [STYL]
- Three Footed, Screw Clamp
- Surface Treatment [SFTT]
- Chromate And Zinc
DLA Procurement Analysis 5910-01-237-5067
Management Data 5910-01-237-5067
Similar Supply Items to 5910-01-237-5067
Freight Information 5910-01-237-5067
5910-01-237-5067 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061400. A Sub NMFC of X. It has a NMFC Description of CONDENSERS/PARTS NOI/CAPACITORS. 5910-01-237-5067 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34450 which rates the freight between FCL and LCL. 5910-01-237-5067 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5910-01-237-5067 is not classified as a special type of cargo when transported by water. 5910-01-237-5067 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5910-01-237-5067
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5910-01-237-5067 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
