5910-01-096-8138
Glass Dielectric Variable Capacitor
5910010968138 010968138 952683-5 SF30A
A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable. View more Glass Dielectric Variable Capacitor
June 2023
14
Marketplace 5910-01-096-8138
Request a Quotation from participating marketplace vendors
Related Documents 5910-01-096-8138 2+ Documents (More...)
SF30A CAPACITOR,VARIABLE,GLASS DIELECTRIC 14 EA NS Request Quotation Updated Every Day 5910-01-096-8138
RQST NE Updated Every Day 5910-01-096-8138 RQST Updated Every Day 5910-01-096-8138 RQST NE Related Documents
Agency (DS)IZDiscontinued-Use 5330-01-124-1095 https//www.nsnlookup.com /fsg-59/fsc-5910/us 5910-01-096-8138
Capacitor Upgrade your Account Upgrade 5910-01-096-8138Glass Dielectric Variable Capacitor5910010968138 010968138
Restrictions 5910-01-096-8138
5910-01-096-8138 is a Glass Dielectric Variable Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5910-01-096-8138
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-01-096-8138
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Aug 2005
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5910-01-096-8138
- Part Number
- Manufacturer
- Status
- 952683-5
- Manufacturer
- 3B150 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 952683-5
- 54X10 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- SF30A
- 18736 - Voltronics Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 952683-5
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5910-01-096-8138
- Characteristic
- Specifications
- FIIG
- Specifications
- A096A0
- Adjustment Device Drive Type And Quantity [CTGR]
- 1 Slotted Screw
- Adjustment Device Rotation [AXGJ]
- 18.0 Turns Nominal Clockwise
- Adjustment Device Torque [AXGR]
- 0.500 Inch-Ounces Minimum And 5.000 Inch-Ounces Maximum

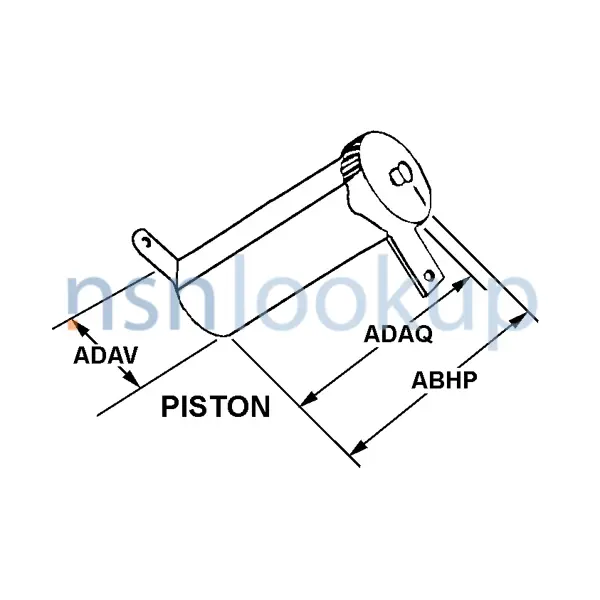

- Body Style [AAQL]
- Piston
- Capacitance Drift In Picofarads [CTGS]
- 0.15 Single Section
- Capacitance Range In Picofarads [CTGN]
- +1.5/+30.0 Single Section
- Mounting Facility Type And Quantity [AXHR]
- 2 Terminal
- Nonderated Operating Temp [CQJJ]
- -55.0 Deg Celsius Minimum And 125.0 Deg Celsius Maximum
- Nonderated Voltage Rating And Type [CTGP]
- 250.0 Dc Continuous Single Section
- Inclosure Type [AKNA]
- Encased
- Insulation Dc Resistance At 25 Deg Celsius [AXGT]
- 1000.0 Gigohms
- Insulation Dc Resistance At Max Operating Temp [AXGX]
- 100.0 Gigohms
- Quality Factor At 25 Deg Celsius [AECJ]
- 800.0
- Overall Diameter [ADAV]
- 0.312 Inches Nominal
- Overall Length [ABHP]
- 0.615 Inches Nominal
- Temp Coefficient Of Capacitance Range In Ppm Per Deg Celsius [AEBF]
- -150.0/+150.0 Single Section
- Terminal Type And Quantity [TTQY]
- 2 Printed Circuit
