5910-00-865-5647
Paper-Plastic Dielectric Metallized Fixed Capacitor
5910008655647 008655647 119F 2731-172
A capacitor whose capacitance value cannot be adjusted or varied having paper, plastic, or any combination of paper and plastic as the dielectric material with a metallic film deposited thereon. It may be a single unit or consist of two or more units which cannot be separated. View more Paper-Plastic Dielectric Metallized Fixed Capacitor
May 2023
5
Marketplace 5910-00-865-5647
Request a Quotation from participating marketplace vendors
Related Documents 5910-00-865-5647 5+ Documents (More...)
(Identification) 1/2 NSN 5910-00-865-5647 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5910-00-865-5647 RQST Updated Every Day 5910-00-865-5647 RQST NE Related Documents
5325-15-179-9646 Desticka Operna 5325151799646 151799646,119F Meter6625999435600 999435600 RL7003-119F
to enable JavaScript in your web browser . 7530-20 -006-0639Printed Form7530200060639 20006063983-119F
5325-15-179-9646 Desticka Operna 5325151799646 151799646,119F Meter6625999435600 999435600 RL7003-119F
JavaScript in your web browser . 6625-99-943-5600Arbitrary Scale Meter6625999435600 999435600RL7003-119F
fsg-49/fsc-4920/uk 4920-99-786-9827 Hydraulic S Trolley 4920997869827997869827 GM-D106200D035-5229AP 119F
Desticka Operna 5325151799646 151799646,119F 5905997723181997723181 EER10FM55G.T.S.609-119FGTS609-119F
www.nsnlookup.com /fsg-49/fsc-4920/uk 4920-99-212-2700 Oleo Leg Charging R 4920992122700992122700 20504G/1480781AP 119F
Distributor Buy Now Updated Every Day 4920-99-212-2700 https//www.nsnlookup.com /fsg-59/fsc-5910/us 5910-00-865-5647
Restrictions 5910-00-865-5647
5910-00-865-5647 is a Paper-Plastic Dielectric Metallized Fixed Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5910-00-865-5647
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-00-865-5647
- National Security Agency (DGX1)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- DTX1
- Supplementary Receivers:
- TX
Approved Sources 5910-00-865-5647
- Part Number
- Manufacturer
- Status
- 2731-172
- Manufacturer
- 74006 - Reliance Comm/Tec Corp Lorain (Active)
- Primary Buy
- Primary Buy
- 119F
- 74006 - Reliance Comm/Tec Corp Lorain (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5910-00-865-5647
- Characteristic
- Specifications
- FIIG
- Specifications
- A010B0
- Body Height [ADAU]
- 0.875 Inches Nominal
- Body Length [ADAQ]
- 1.750 Inches Nominal

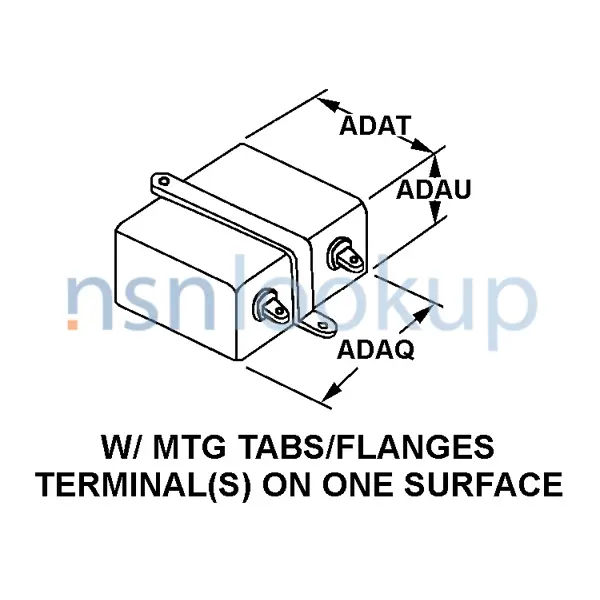

- Body Style [AAQL]
- W/Mtg Tabs/Flanges Terminal(S) On One Surface
- Body Width [ADAT]
- 1.000 Inches Nominal
- Capacitance Value Per Section [CQBQ]
- 5.000 Microfarads Single Section
- Case Material [CWJK]
- Metal
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Length [AEBY]
- 1.500 Inches Nominal
- Features Provided [CBBL]
- Hermetically Sealed Case
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Mounting Holes
- Nonderated Operating Temp [CQJJ]
- -65.0 Deg Celsius Minimum And 125.0 Deg Celsius Maximum
- Nonderated Continuous Voltage Rating And Type Per Section [CQWM]
- 150.0 Dc Single Section
- Insulation Resistance At Reference Temp [CWPK]
- 100000.0 Megohms
- Reliability Indicator [AARG]
- Not Established
- Schematic Diagram Designator [AEBZ]
- No Common Or Grounded Electrode(S)
- Tolerance Range Per Section [CRTP]
- -20.00/+20.00 Percent Single Section
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.188 Inches Nominal
- Terminal Height From Body [AEBU]
- 0.500 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 2 Standoff, Solder Lug
- Terminal Surface Treatment [CWSG]
- Solder
DLA Procurement Analysis 5910-00-865-5647
Management Data 5910-00-865-5647
NATO Stock Numbers Related to 5910-00-865-5647
Freight Information 5910-00-865-5647
5910-00-865-5647 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061400. A Sub NMFC of X. It has a NMFC Description of CONDENSERS/PARTS NOI/CAPACITORS. 5910-00-865-5647 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34450 which rates the freight between FCL and LCL. 5910-00-865-5647 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5910-00-865-5647 is not classified as a special type of cargo when transported by water. 5910-00-865-5647 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5910-00-865-5647
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- Special requirements
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
