5910-00-783-7825
Plastic Dielectric Fixed Capacitor
5910007837825 007837825 571K 571KCAPACIT0R
A capacitor whose capacitance value cannot be adjusted or varied, having a plastic, plastic film, plasticized (plastic impregnated) paper, or any combination of plastic and paper or plastic and paper films as the dielectric material. The plastic may be one or more types of synthetic compounds such as polyesters, polyfluorides, polycabonates, and the like. It may be a single unit, or consist of two or more fixed units which cannot be separated. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC. View more Plastic Dielectric Fixed Capacitor
May 2023
5
Marketplace 5910-00-783-7825
Request a Quotation from participating marketplace vendors
Related Documents 5910-00-783-7825 4+ Documents (More...)
BUY NE FedMall Updated Every Day 5910-00-783-7825 RQST NE Updated Every Day 5910-00-783-7825 RQST
Updated Every Day 5910-00-783-7825 RQST NE Related Documents 5910-00-783-7825 4+ Documents ( More...
Plastic Dielectric Fixed Capacitor 007837825 Upgrade your Account Upgrade 5910-00-783-7825Plastic
Dielectric Fixed Capacitor5910007837825 007837825 571K Pump Shaft Sleeve 4320142918277142918277 to enable
Details... 571K1-6SEC TIMER,SEQUENTIAL 3 EA NS Request Quotation Subscribe to View Vendor Details... 571K
for $1 a day Upgrade your Account Upgrade 6645-00-772- 0532Sequential Timer6645007720532 007720532 571K
Restrictions 5910-00-783-7825
5910-00-783-7825 is a Plastic Dielectric Fixed Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5910-00-783-7825
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-00-783-7825
- US Navy (N9BN)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5910-00-783-7825
- Part Number
- Manufacturer
- Status
- 571K
- Manufacturer
- 57712 - Telemechanics Inc (Active)
- Primary Buy
- Primary Buy
- 571KCAPACIT0R
- 64959 - American Telephone And Telegraph Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5910-00-783-7825
- Characteristic
- Specifications
- FIIG
- Specifications
- A010B0
- Body Height [ADAU]
- 3.438 Inches Nominal
- Body Length [ADAQ]
- 1.407 Inches Nominal

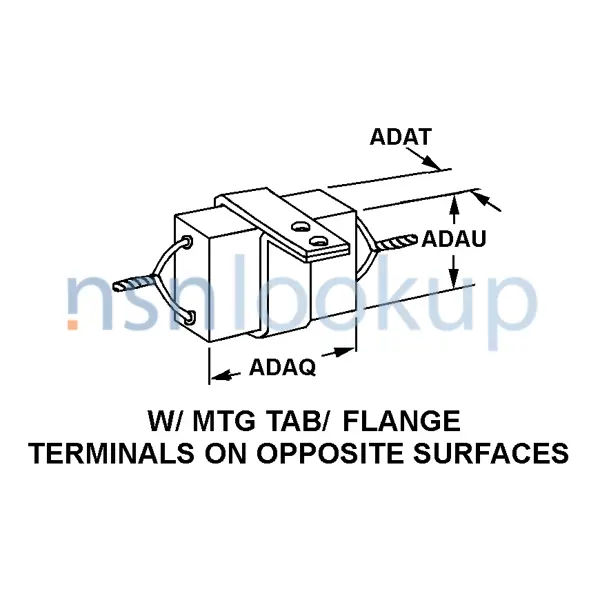

- Body Style [AAQL]
- W/Mtg Tab/Flange, Terminals On Opposite Surface
- Body Width [ADAT]
- 0.782 Inches Nominal
- Capacitance Value Per Section [CQBQ]
- 0.477 Microfarads 1St Section
- Capacitance Value Per Section [CQBQ]
- 15000.000 Picofarads 2Nd Section
- Case Material [CWJK]
- Metal
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 1.000 Inches Nominal
- Mounting Facility Screw Thread Series Designator [AKEJ]
- Unc
- Nominal Thread Size [CQJX]
- 0.138 Inches
- Nonderated Continuous Voltage Rating And Type Per Section [CQWM]
- 250.0 Dc All Sections
- Nonderated Operating Temp [CQJJ]
- -55.0 Deg Celsius Minimum And 85.0 Deg Celsius Maximum
- Terminal Surface Treatment [CWSG]
- Solder
- Reliability Indicator [AARG]
- Not Established
- Schematic Diagram Designator [AEBZ]
- No Common Or Grounded Electrode(S)
- Section Quantity [BWGP]
- 2
- Tolerance Range Per Section [CRTP]
- -1.00 To 1.00 Percent 2Nd Section
- Tolerance Range Per Section [CRTP]
- -10.00 To 10.00 Percent 1St Section
- Terminal Length [ABJT]
- 0.316 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 4 Tab, Solder Lug
DLA Procurement Analysis 5910-00-783-7825
Management Data 5910-00-783-7825
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5910-00-783-7825
Freight Information 5910-00-783-7825
5910-00-783-7825 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061400. A Sub NMFC of X. It has a NMFC Description of CONDENSERS/PARTS NOI/CAPACITORS. 5910-00-783-7825 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34450 which rates the freight between FCL and LCL. 5910-00-783-7825 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5910-00-783-7825 is not classified as a special type of cargo when transported by water. 5910-00-783-7825 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
