5910-00-456-0657
Capacitor Retainer
5910004560657 004560657 386-0253-00
An item primarily designed to position and/or restrain the movement of one or more capacitors in their normal mounting position. Excludes CLIP, ELECTRICAL and CLAMP, LOOP. View more Capacitor Retainer
January 2023
11
Marketplace 5910-00-456-0657
Request a Quotation from participating marketplace vendors
Related Documents 5910-00-456-0657 1+ Documents (More...)
,CAPACITOR 7 EA NS Request Quotation Updated Every Day 5910-00-456-0657 RQST NE Updated Every Day 5910
-00-456-0657 RQST Updated Every Day 5910-00-456-0657 RQST NE Related Documents 5910-00-456-0657 1+ Documents
Restrictions 5910-00-456-0657
5910-00-456-0657 is a Capacitor Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5910-00-456-0657
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-00-456-0657
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5910-00-456-0657
- Part Number
- Manufacturer
- Status
- 386-0253-00
- Manufacturer
- 80009 - Tektronix, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5910-00-456-0657
- Characteristic
- Specifications
- FIIG
- Specifications
- A062A0
- Material [MATT]
- Steel
- Surface Treatment [SFTT]
- Cadmium

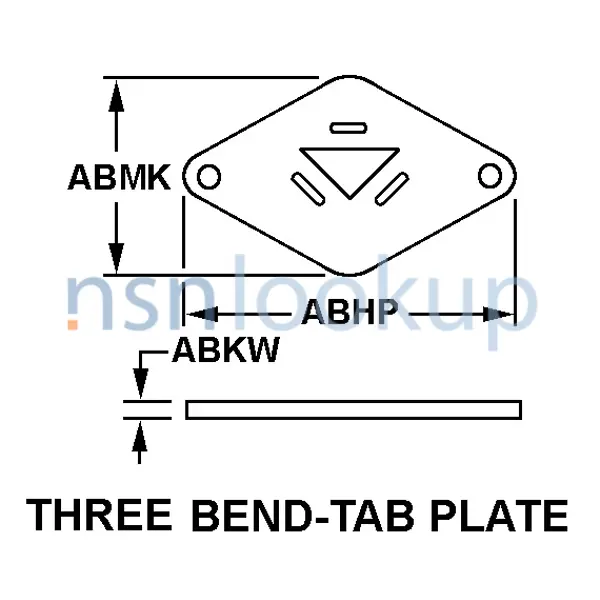

- Style Designator [STYL]
- Three Bend-Tab Plate
- Overall Length [ABHP]
- 1.875 Inches Nominal
- Overall Height [ABKW]
- 0.031 Inches Nominal
- Overall Width [ABMK]
- 1.344 Inches Nominal
- Accommodated Item Securing Device Type [AGTM]
- Twist Lock
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole Single Mounting Facility
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.156 Inches Nominal Single Mounting Facility
- Distance Between Mounting Facility Centers [AEJN]
- 1.500 Inches Nominal Single Mounting Facility Single Center Group
Similar Supply Items to 5910-00-456-0657
Freight Information 5910-00-456-0657
5910-00-456-0657 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061400. A Sub NMFC of X. It has a NMFC Description of CONDENSERS/PARTS NOI/CAPACITORS. 5910-00-456-0657 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5910-00-456-0657 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34450 which rates the freight between FCL and LCL. 5910-00-456-0657 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5910-00-456-0657 is not classified as a special type of cargo when transported by water. 5910-00-456-0657 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5910-00-456-0657
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
