5910-00-444-6681
Mica Dielectric Variable Capacitor
5910004446681 004446681 GMA70800 0121-0411 T51810-5
A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable. View more Mica Dielectric Variable Capacitor
May 2023
5
Marketplace 5910-00-444-6681
Request a Quotation from participating marketplace vendors
Related Documents 5910-00-444-6681 2+ Documents (More...)
United States (US) 4. 5910-00-444-6681 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5910-00-444-6681 RQST Updated Every Day 5910-00-444-6681 RQST NE Related Documents
Mica Dielectric Variable Capacitor 004446681 ) https//www.nsnlookup.com /fsg-59/fsc-5910/us https
Restrictions 5910-00-444-6681
5910-00-444-6681 is a Mica Dielectric Variable Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5910-00-444-6681
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-00-444-6681
- National Security Agency (DGX1)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- DTX1
- Supplementary Receivers:
- TX
Approved Sources 5910-00-444-6681
- Part Number
- Manufacturer
- Status
- 0121-0411
- Manufacturer
- 7ZXR5 - Keysight Technologies Inc (Active)
- Primary Buy
- Primary Buy
- 0121-0411
- 1LQK8 - Keysight Technologies, Inc. (Replaced)
- Original Design
- Original Design
- GMA70800
- 56289 - Sprague Electric Co World Hqs (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 0121-0411
- 28480 - Hewlett-Packard Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- T51810-5
- 72136 - Electro Motive Corp Subsidiary Of (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5910-00-444-6681
- Characteristic
- Specifications
- FIIG
- Specifications
- A096A0
- Adjustment Device Drive Type And Quantity [CTGR]
- 1 Slotted Screw
- Body Height [ADAU]
- 0.500 Inches Nominal
- Body Length [ADAQ]
- 0.375 Inches Nominal

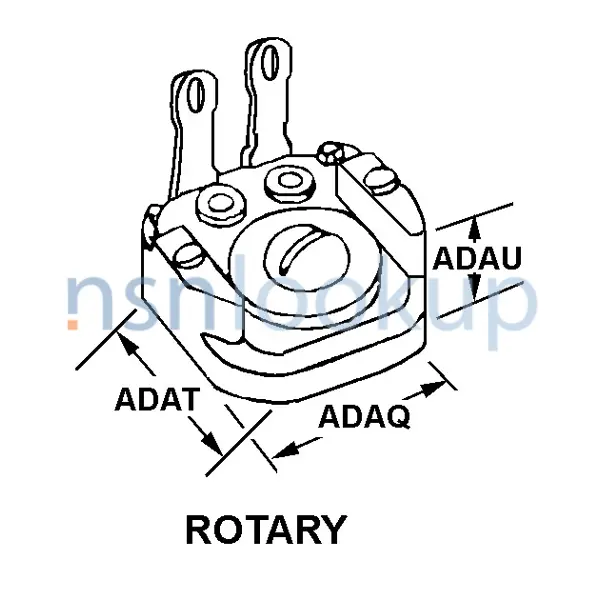

- Body Style [AAQL]
- Rotary
- Body Width [ADAT]
- 0.750 Inches Nominal
- Capacitance Range In Picofarads [CTGN]
- +70.0/+200.0 Single Section
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Length [AEBY]
- 0.315 Inches Nominal
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole
- Nonderated Voltage Rating And Type [CTGP]
- 250.0 Dc Continuous Single Section
- Inclosure Type [AKNA]
- Encased
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.078 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug
DLA Procurement Analysis 5910-00-444-6681
Management Data 5910-00-444-6681
Similar Supply Items to 5910-00-444-6681
Freight Information 5910-00-444-6681
5910-00-444-6681 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061400. A Sub NMFC of X. It has a NMFC Description of CONDENSERS/PARTS NOI/CAPACITORS. 5910-00-444-6681 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34450 which rates the freight between FCL and LCL. 5910-00-444-6681 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5910-00-444-6681 is not classified as a special type of cargo when transported by water. 5910-00-444-6681 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5910-00-444-6681
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5910-00-444-6681 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
