5910-00-248-4887
Paper Dielectric Fixed Capacitor
5910002484887 002484887 482037-10 609MSB4
A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC. View more Paper Dielectric Fixed Capacitor
January 2023
14
Marketplace 5910-00-248-4887
Request a Quotation from participating marketplace vendors
Related Documents 5910-00-248-4887 2+ Documents (More...)
(Identification) 1/2 NSN 5910-00-248-4887 (Identification) 2/2 - - 1.
United States (US) 4. 5910-00-248-4887 Marketplace Restrictions Approved Sources Datasheet Management
Paper Dielectric Fixed Capacitor 002484887 Upgrade your Account Upgrade 5910-00-248-4887Paper Dielectric
Fixed Capacitor5910002484887 002484887 482037 www.nsnlookup.com /fsg-59/fsc-5910/us 5910-00-248-4887
Restrictions 5910-00-248-4887
5910-00-248-4887 is a Paper Dielectric Fixed Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5910-00-248-4887
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-00-248-4887
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5910-00-248-4887
- Part Number
- Manufacturer
- Status
- 609MSB4
- Manufacturer
- 00656 - Aerovox Corp. (Obsolete)
- Original Design
- Original Design
- 482037-10
- 99993 - Department Of The Navy (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5910-00-248-4887
- Characteristic
- Specifications
- FIIG
- Specifications
- A010B0
- Body Height [ADAU]
- 3.250 Inches Nominal
- Body Length [ADAQ]
- 2.500 Inches Nominal

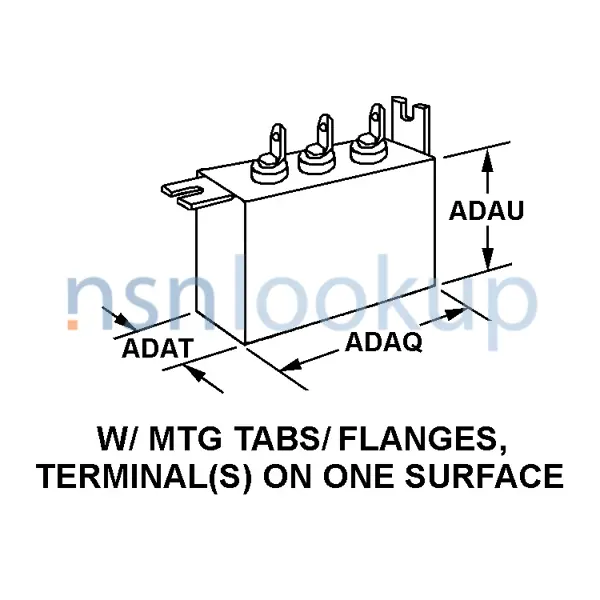

- Body Style [AAQL]
- W/Mtg Tabs/Flanges, Terminal(S) On One Surface
- Body Width [ADAT]
- 1.188 Inches Nominal
- Case Material [CWJK]
- Metal
- Center To Center Distance Between Terminals Parallel To Length [AEBP]
- 1.125 Inches Nominal
- Features Provided [CBBL]
- Mounting Hardware And Hermetically Sealed Case
- Capacitance Value Per Section [CQBQ]
- 4.000 Microfarads Single Section
- Mounting Facility Type And Quantity [AXHR]
- 2 Threaded Bushing
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Nonderated Continuous Voltage Rating And Type Per Section [CQWM]
- 600.0 Dc Single Section
- Nonderated Operating Temp [CQJJ]
- -55.0 Deg Celsius Minimum And 85.0 Deg Celsius Maximum
- Mounting Facility Screw Thread Series Designator [AKEJ]
- Unf
- Terminal Surface Treatment [CWSG]
- Solder
- Reliability Indicator [AARG]
- Not Established
- Schematic Diagram Designator [AEBZ]
- No Common Or Grounded Electrode(S)
- Terminal Height From Body [AEBU]
- 0.875 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 2 Solder Stud
- Tolerance Range Per Section [CRTP]
- -10.00 To 10.00 Percent Single Section
Similar Supply Items to 5910-00-248-4887
Freight Information 5910-00-248-4887
5910-00-248-4887 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061400. A Sub NMFC of X. It has a NMFC Description of CONDENSERS/PARTS NOI/CAPACITORS. 5910-00-248-4887 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34450 which rates the freight between FCL and LCL. 5910-00-248-4887 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5910-00-248-4887 is not classified as a special type of cargo when transported by water. 5910-00-248-4887 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5910-00-248-4887
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- A-A-1898, Grade II, Water Resistant Cellulosic Cushioning
- --
- PPP-B-566 or PPP-B-676, Folding or Setup Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
