5910-00-161-0193
Paper Dielectric Fixed Capacitor
5910001610193 001610193 ARA1242 A1242
A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC. View more Paper Dielectric Fixed Capacitor
May 2023
10
Marketplace 5910-00-161-0193
Request a Quotation from participating marketplace vendors
Related Documents 5910-00-161-0193 5+ Documents (More...)
A1242 CAPACITOR,FIXED,PAPER DIELECTRIC 202 EA NS Request Quotation Updated Every Day 5910-00-161-0193
Updated Every Day 5910-00-161-0193 5910-00-161-0193 5+ Documents ( More... ) https//www.nsnlookup.com
-STGL A1242-REFR An item so designed to have a portion or all of its body transparent to permit the
//www.nsnlookup.com /fsg-59/fsc-5910/us 5910-00-161-0193 Paper Dielectric Fixed Capacitor 001610193 your
Upgrade your Account Upgrade 6685-01-450-2980Indicating Temperature Control6685014502980 014502980 A1242
Paper Dielectric Fixed Capacitor 001610193 /us 5910-00-161-0193 Paper Dielectric Fixed Capacitor
//www.nsnlookup.com /fsg-47/fsc-4730/uk 4730-99-544-2010 Pipe Plug Assembly 4730995442010995442010 A1242
-STGL A1242-REFR An item so designed to have a portion or all of its body transparent to permit the
Documents 5945-01-450-2977 2+ Documents ( More... https//www.nsnlookup.com /fsg-59/fsc-5910/us 5910-00-161-0193
Paper Dielectric Fixed Capacitor 001610193 CAPACITOR,FIXED,PAPER DIELECTRIC 202 EA NS Request https
Restrictions 5910-00-161-0193
5910-00-161-0193 is a Paper Dielectric Fixed Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5910-00-161-0193
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-00-161-0193
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5910-00-161-0193
- Part Number
- Manufacturer
- Status
- ARA1242
- Manufacturer
- 25579 - Argent Industries, Inc. (Active)
- Primary Buy
- Primary Buy
- A1242
- 06650 - Bell And Howell Phillipsburg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5910-00-161-0193
- Characteristic
- Specifications
- FIIG
- Specifications
- A010B0
- Body Height [ADAU]
- 1.125 Inches Nominal
- Body Length [ADAQ]
- 3.312 Inches Nominal

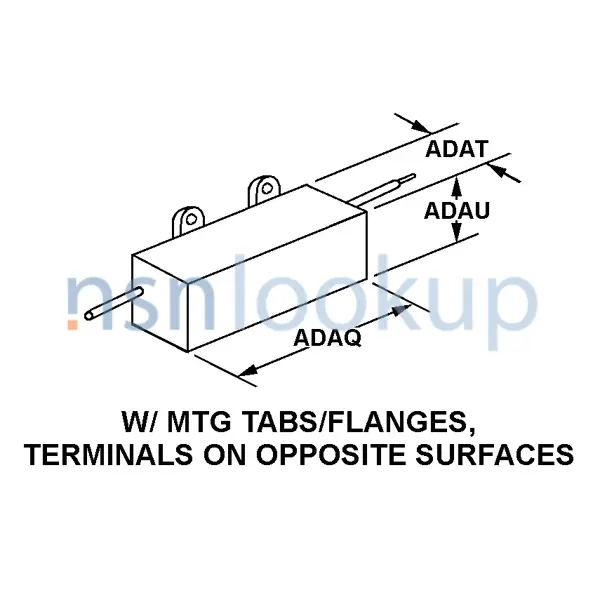

- Body Style [AAQL]
- W/Mtg Tabs/Flanges, Terminals On Opposite Surfaces
- Body Width [ADAT]
- 1.125 Inches Nominal
- Case Material [CWJK]
- Metal
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Length [AEBY]
- 3.000 Inches Nominal
- Features Provided [CBBL]
- Hermetically Sealed Case
- Capacitance Value Per Section [CQBQ]
- 0.100 Microfarads 3Rd Section
- Capacitance Value Per Section [CQBQ]
- 0.100 Microfarads 4Th Section
- Capacitance Value Per Section [CQBQ]
- 0.200 Microfarads 1St Section
- Capacitance Value Per Section [CQBQ]
- 0.500 Microfarads 2Nd Section
- Mounting Facility Type And Quantity [AXHR]
- 4 Unthreaded Mounting Holes
- Nonderated Continuous Voltage Rating And Type Per Section [CQWM]
- 150.0 Ac-Rms 2Nd Section
- Nonderated Continuous Voltage Rating And Type Per Section [CQWM]
- 150.0 Ac-Rms 1St Section
- Nonderated Continuous Voltage Rating And Type Per Section [CQWM]
- 400.0 Ac-Rms 4Th Section
- Nonderated Continuous Voltage Rating And Type Per Section [CQWM]
- 400.0 Ac-Rms 3Rd Section
- Nonderated Operating Temp [CQJJ]
- -55.0 Deg Celsius Minimum And 85.0 Deg Celsius Maximum
- Section Quantity [BWGP]
- 4
- Reliability Indicator [AARG]
- Not Established
- Schematic Diagram Designator [AEBZ]
- Quad, One Separate, Three W/Common Terminal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.104 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 6 Insulated Wire Lead
- Tolerance Range Per Section [CRTP]
- -10.00 To 40.00 Percent 1St Section
- Tolerance Range Per Section [CRTP]
- -10.00 To 40.00 Percent 2Nd Section
- Tolerance Range Per Section [CRTP]
- -10.00 To 40.00 Percent 3Rd Section
- Tolerance Range Per Section [CRTP]
- -10.00 To 40.00 Percent 4Th Section
Similar Supply Items to 5910-00-161-0193
Freight Information 5910-00-161-0193
5910-00-161-0193 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061400. A Sub NMFC of X. It has a NMFC Description of CONDENSERS/PARTS NOI/CAPACITORS. 5910-00-161-0193 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34450 which rates the freight between FCL and LCL. 5910-00-161-0193 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5910-00-161-0193 is not classified as a special type of cargo when transported by water. 5910-00-161-0193 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5910-00-161-0193
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
