5910-00-133-8594
Mica Dielectric Fixed Capacitor
5910001338594 001338594 2307-1 SMC502981 RE184-2 SM-C-502981
A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated. View more Mica Dielectric Fixed Capacitor
May 2023
24
Marketplace 5910-00-133-8594
Request a Quotation from participating marketplace vendors
Related Documents 5910-00-133-8594 3+ Documents (More...)
NE Updated Every Day 5910-00-133-8594 RQST Updated Every Day 5910-00-133-8594 RQST NE Related Documents
5910-00-133-8594 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5910/us 5910-00-133-8594
Mica Dielectric Fixed Capacitor 001338594 5910-00-133-8594Mica Dielectric Fixed Capacitor5910001338594
001338594 2307-1 SMC502981 RE184-2 SM-C-502981 fsc-5910/us 5910-00-133-8594 Mica Dielectric Fixed Capacitor
Mica Dielectric Fixed Capacitor 001338594 2307-1SMC502981RE184-2SM-C-502981 //www.nsnlookup.com
Restrictions 5910-00-133-8594
5910-00-133-8594 is a Mica Dielectric Fixed Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5910-00-133-8594
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-00-133-8594
- US Army (A918)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- BDCL
- US Air Force (FXGX)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FXTX
- Lithuania (WI01)
- Effective Date:
- 1 Jun 2001
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5910-00-133-8594
- Part Number
- Manufacturer
- Status
- SMC502981
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- RE184-2
- 93790 - Cornell-Dubilier Electronics, Inc. (Active)
- Secondary Buy
- Secondary Buy
- SM-C-502981
- 6Z990 - Applied Systems Research Inc (Active)
- Secondary Buy
- Secondary Buy
- 2307-1
- 18212 - American Trans-Coil Corp (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5910-00-133-8594
- Characteristic
- Specifications
- FIIG
- Specifications
- A010B0

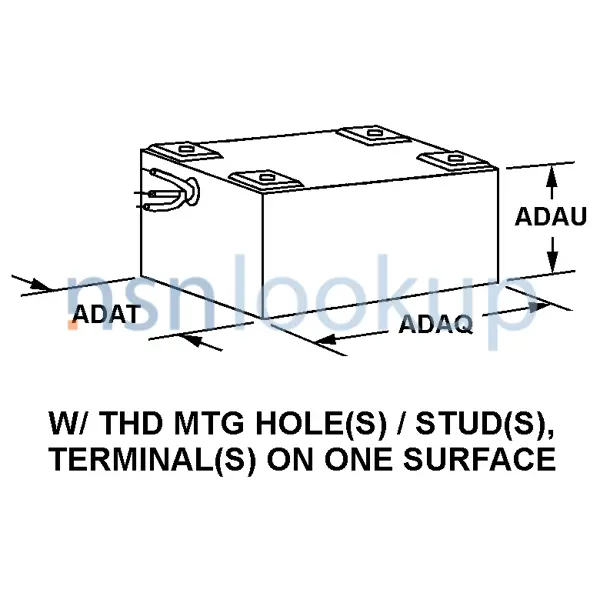

- Body Height [ADAU]
- 0.500 Inches Nominal
- Body Length [ADAQ]
- 2.251 Inches Nominal
- Body Style [AAQL]
- W/Thd Mtg Hole(S)/Stud(S) Terminals On One Surface
- Body Width [ADAT]
- 1.875 Inches Nominal
- Capacitance Value Per Section [CQBQ]
- 200.500 Microfarads 3Rd Section
- Case Material [CWJK]
- Metal
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Length [AEBY]
- 1.983 Inches Nominal
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 1.607 Inches Nominal
- Features Provided [CBBL]
- Hermetically Sealed Case
- Mounting Facility Screw Thread Series Designator [AKEJ]
- Unc
- Mounting Facility Type And Quantity [AXHR]
- 4 Threaded Mounting Holes
- Nominal Thread Size [CQJX]
- 0.086 Inches
- Nonderated Continuous Voltage Rating And Type Per Section [CQWM]
- 1500.0 Ac-Peak All Sections
- Nonderated Operating Temp [CQJJ]
- -55.0 Deg Celsius Minimum And 150.0 Deg Celsius Maximum
- Lowest Frequency At Which Rf Current Rating Applies In Kilohertz [AEBN]
- 12.0
- Highest Frequency At Which Rf Current Rating Applies In Kilohertz [AEBL]
- 30.0
- Maximum Rf Current Rating At Highest Rated Frequency In Rms Amps [AEBK]
- 7.15
- Maximum Rf Current Rating At Lowest Rated Frequency In Rms Amps [AEBM]
- 3.4
- Terminal Surface Treatment [CWSG]
- Solder
- Insulation Resistance At Reference Temp [CWPK]
- 10000.0 Megohms
- Quality Factor At Reference Temp [CWQF]
- 10000.0000
- Reliability Indicator [AARG]
- Not Established
- Schematic Diagram Designator [AEBZ]
- Electrode(S) Grounded To Case
- Section Quantity [BWGP]
- 4
- Temp Coefficient Of Capacitance Range Per Section In Ppm Per Deg Celsius [CRDN]
- -20.0 To 100.0 Single Section
- Terminal Diameter [AEBT]
- 0.064 Inches Nominal
- Terminal Length [ABJT]
- 2.000 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 4 Uninsulated Wire Lead
- Tolerance Range Per Section [CRTP]
- -2.00 To 2.00 Percent 1St Section
- Tolerance Range Per Section [CRTP]
- -2.00 To 2.00 Percent 2Nd Section
- Tolerance Range Per Section [CRTP]
- -1.00 To 1.00 Percent 3Rd Section
- Tolerance Range Per Section [CRTP]
- -1.00 To 1.00 Percent 4Th Section
