5910-00-129-9213
Paper Dielectric Fixed Capacitor
5910001299213 001299213 HC94 A8D5426 X5323 X5323-500000 8A38030
A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC. View more Paper Dielectric Fixed Capacitor
January 2023
16
Marketplace 5910-00-129-9213
Request a Quotation from participating marketplace vendors
Related Documents 5910-00-129-9213 5+ Documents (More...)
5910-00-129-9213 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5910/us 5910-00-129-9213
Paper Dielectric Fixed Capacitor 001299213 Assy3895000678995 000678995 2L2 X5323 Restrictions https
(241)AD050DCR-HC94 A single component specifically designed to convert visual images (either still or
(241)AD050DCR-HC94 A single component specifically designed to convert visual images (either 5821-15
5998-01-127-3349 Electronic Test Extender Card 5998011273349 Pump Assy 3895000678995 000678995,2L2,X5323
https//www.nsnlookup.com /fsg-59/fsc-5910/us 5910 -00-129-9213 Paper Dielectric Fixed Capacitor 001299213
Paper Dielectric Fixed Capacitor 001299213 59/fsc-5910/us 5910-00-129-9213 Paper Dielectric https
Special Purpose Cable Assembly 38/fsc-3895/us 3895-00-067-8995 Pump Assy 3895000678995 000678995,2L2,X5323
Assembly6150014595213 014595213 000678995,2L2,X5323 https//www.nsnlookup.com /fsg-59/fsc-5995/us 5995
9482Housed Encorder5995015819482 015819482VOE25-2048-A1-LD-24-2L2 Pump Assy 3895000678995 000678995,2L2,X5323
Restrictions 5910-00-129-9213
5910-00-129-9213 is a Paper Dielectric Fixed Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5910-00-129-9213
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-00-129-9213
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5910-00-129-9213
- Part Number
- Manufacturer
- Status
- HC94
- Manufacturer
- 92755 - Northrop Grumman Systems Corp (Active)
- Primary Buy
- Primary Buy
- A8D5426
- 3B150 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- A8D5426
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- X5323
- 72354 - Fast John E Div Of Victoreen (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- X5323-500000
- 72354 - Fast John E Div Of Victoreen (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 8A38030
- 94990 - Motorola Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 8A38030
- 1VPW8 - General Dynamics Mission Systems, (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5910-00-129-9213
- Characteristic
- Specifications
- FIIG
- Specifications
- A010B0
- Body Diameter [ABPM]
- 0.675 Inches Nominal
- Body Height [ADAU]
- 0.675 Inches Nominal
- Body Length [ADAQ]
- 1.812 Inches Nominal

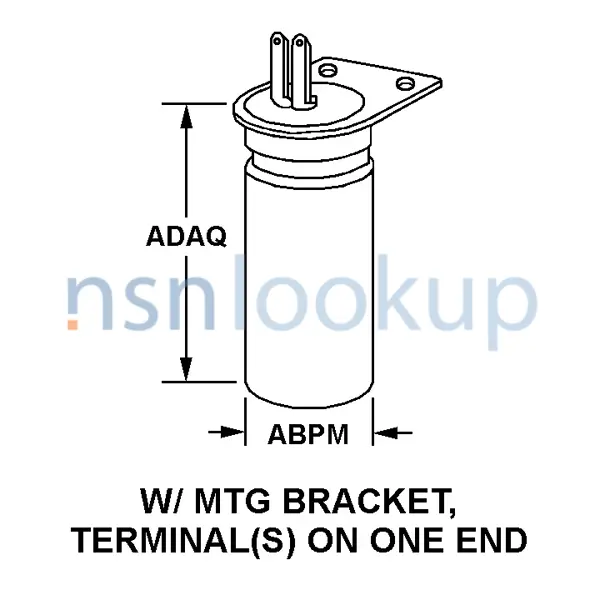

- Body Style [AAQL]
- W/Mtg Bracket, Terminal(S) On One End
- Case Material [CWJK]
- Metal
- Features Provided [CBBL]
- Hermetically Sealed Case
- Capacitance Value Per Section [CQBQ]
- 0.500 Microfarads Single Section
- Mounting Facility Type And Quantity [AXHR]
- 1 Unthreaded Mounting Holes
- Nonderated Continuous Voltage Rating And Type Per Section [CQWM]
- 100.0 Dc Single Section
- Nonderated Operating Temp [CQJJ]
- -55.0 Deg Celsius Minimum And 85.0 Deg Celsius Maximum
- Reliability Indicator [AARG]
- Not Established
- Schematic Diagram Designator [AEBZ]
- Electrode(S) Grounded To Case, W/Gnd Terminal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.188 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 2 Uninsulated Wire Lead
- Tolerance Range Per Section [CRTP]
- -5.00 To 20.00 Percent Single Section
Similar Supply Items to 5910-00-129-9213
Freight Information 5910-00-129-9213
5910-00-129-9213 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061400. A Sub NMFC of X. It has a NMFC Description of CONDENSERS/PARTS NOI/CAPACITORS. 5910-00-129-9213 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5910-00-129-9213 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34450 which rates the freight between FCL and LCL. 5910-00-129-9213 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5910-00-129-9213 is not classified as a special type of cargo when transported by water. 5910-00-129-9213 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
