5910-00-128-7771
Ceramic Dielectric Variable Capacitor
5910001287771 001287771 JANC81 CV12A620
A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable. View more Ceramic Dielectric Variable Capacitor
January 2023
15
Marketplace 5910-00-128-7771
Request a Quotation from participating marketplace vendors
Related Documents 5910-00-128-7771 5+ Documents (More...)
United States (US) 4. 5910-00-128-7771 Marketplace Restrictions Approved Sources Datasheet Management
CV12A620 CAPACITOR,VARIABLE,CERAMIC DIELECTRIC 150 EA NS Request Quotation Updated Every Day 5910-00-
your Account Upgrade 5910-00-649-3725Ceramic Dielectric Variable Capacitor5910006493725 006493725 JANC81
your Account Upgrade 5910-00-128-7771Ceramic Dielectric Variable Capacitor5910001287771 001287771 JANC81
your Account Upgrade 5910-00-752-4882Ceramic Dielectric Variable Capacitor5910007524882 007524882 JANC81
JANC81 your Account Upgrade 5910-00-228-6120Ceramic Dielectric Variable Capacitor5910002286120 002286120
Capacitor your Account Upgrade 5910-00-128-7771Ceramic Dielectric Variable Capacitor5910001287771 001287771
JANC81 your Account Upgrade 5910-00-752-4882Ceramic Dielectric Variable Capacitor5910007524882 007524882
Capacitor your Account Upgrade 5910-00-128-7771Ceramic Dielectric Variable Capacitor5910001287771 001287771
JANC81 your Account Upgrade 5910-00-228-6120Ceramic Dielectric Variable Capacitor5910002286120 002286120
Restrictions 5910-00-128-7771
5910-00-128-7771 is a Ceramic Dielectric Variable Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5910-00-128-7771
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-00-128-7771
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5910-00-128-7771
- Part Number
- Manufacturer
- Status
- CV12A620
- Manufacturer
- 81350 - Joint Army-Navy Specifications (Active)
- Definitive Standard
- Definitive Standard
- JANC81
- 81350 - Joint Army-Navy Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5910-00-128-7771
- Characteristic
- Specifications
- FIIG
- Specifications
- A096A0
- Adjustment Device Drive Type And Quantity [CTGR]
- 1 Slotted Screw
- Adjustment Device Rotation [AXGJ]
- 360.0 Degrees Nominal Clockwise
- Adjustment Device Torque [AXGR]
- 0.250 Inch-Pounds Minimum And 2.750 Inch-Pounds Maximum

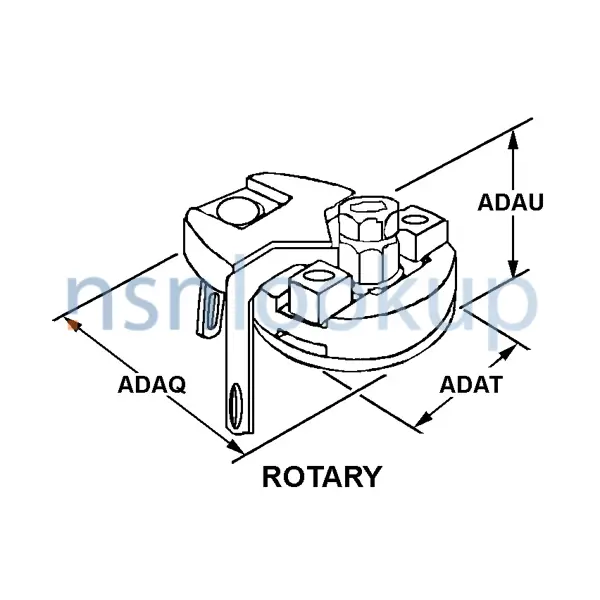

- Body Height [ADAU]
- 0.938 Inches Nominal
- Body Length [ADAQ]
- 1.219 Inches Nominal
- Body Style [AAQL]
- Rotary
- Body Width [ADAT]
- 0.703 Inches Nominal
- Capacitance Change In Percent At Operating Temp From 25 Deg Celsius [CTGQ]
- -4.50 To 2.00 Minimum And -2.50 To 2.00 Maximum Single Section
- Capacitance Range In Picofarads [CTGN]
- +12.0 To 62.0 Single Section
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 0.656 Inches Nominal
- Capacitance Drift In Picofarads [CTGS]
- 0.50 Single Section
- Dissipation Factor At 25 Deg Celsius In Percent [AECK]
- 0.2
- Mounting Facility Screw Thread Series Designator [AKEJ]
- Unc
- Mounting Facility Type And Quantity [AXHR]
- 2 Threaded Hole
- Nominal Thread Size [CQJX]
- 0.112 Inches
- Nonderated Operating Temp [CQJJ]
- -55.0 Deg Celsius Minimum And 85.0 Deg Celsius Maximum
- Nonderated Voltage Rating And Type [CTGP]
- 500.0 Dc Continuous Single Section
- Material [MATT]
- Ceramic Base
- Insulation Dc Resistance At 25 Deg Celsius [AXGT]
- 10000.0 Megohms
- Inclosure Type [AKNA]
- Encapsulated
- Special Features [FEAT]
- Mtg Holes Tapped 0.188 In.Deep
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.112 Inches Nominal And 0.112 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug
NATO Stock Numbers Related to 5910-00-128-7771
Freight Information 5910-00-128-7771
5910-00-128-7771 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061400. A Sub NMFC of X. It has a NMFC Description of CONDENSERS/PARTS NOI/CAPACITORS. 5910-00-128-7771 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5910-00-128-7771 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34450 which rates the freight between FCL and LCL. 5910-00-128-7771 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5910-00-128-7771 is not classified as a special type of cargo when transported by water. 5910-00-128-7771 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
