5910-00-128-7764
Ceramic Dielectric Variable Capacitor
5910001287764 001287764 820A 44A079
A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable. View more Ceramic Dielectric Variable Capacitor
May 2023
11
Marketplace 5910-00-128-7764
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5910-00-128-7764 5+ Documents (More...)
Every 820A Parker 820A https 820A Parker 820A Every https Parker 820A Parker 820A a Quotation 820A Parker
820A Parker https//www.nsnlookup.com /fsg-59/fsc-5910/us 5910-00-128-7764 https//www.nsnlookup.com /
Every 820A Parker 820A https 820A Parker 820A Every https Parker 820A Request a Quotation 820A Parker
820A Every 820A Parker 820A https 820A Parker 820A Every https Parker 820A Day Parker 820A Parker https
820A Parker 820A Every https Parker 820A Parker 820A / Parker 820A Parker https//www.nsnlookup.com /
Day Parker 820A Parker 820A Bolometer Parker 820A Parker 820A PHOTOMETER 820A Every 820A Parker 820A
Parker 820A https 820A Parker 820A Every https Parker 820A Parker 820A /fsg-66/fsc-6680/de Every 820A
Parker 820A https 820A Parker 820A Every https Parker 820A Request a Quotation 820A Parker Every 820A
Parker 820A Every 820A Parker 820A https 820A Parker 820A Every https Parker 820A Day Parker 820A Parker
/fsg-59/fsc-5910/us 5910-00-128-7764 Ceramic Dielectric Variable Capacitor,820A Every 820A Parker 820A
Restrictions 5910-00-128-7764
5910-00-128-7764 is a Ceramic Dielectric Variable Capacitor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5910-00-128-7764
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5910-00-128-7764
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5910-00-128-7764
- Part Number
- Manufacturer
- Status
- 44A079
- Manufacturer
- 26916 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
- 820A
- 25244 - Johnson Controls Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5910-00-128-7764
- Characteristic
- Specifications
- FIIG
- Specifications
- A096A0
- Adjustment Device Drive Type And Quantity [CTGR]
- 1 Slotted Screw

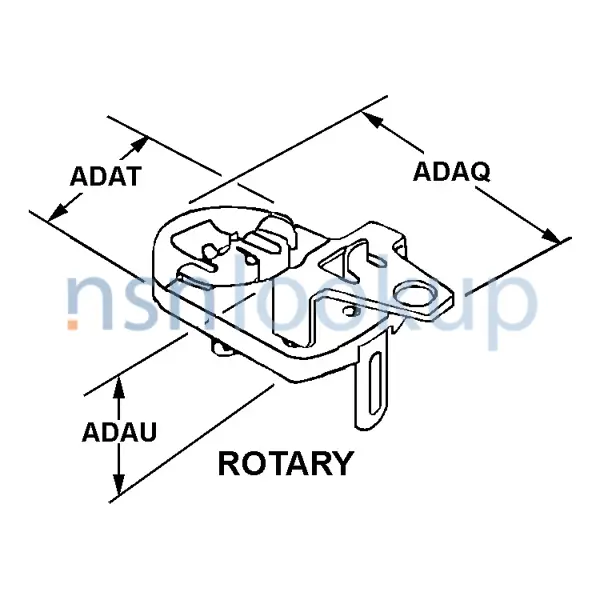

- Body Height [ADAU]
- 0.387 Inches Nominal
- Body Length [ADAQ]
- 0.610 Inches Nominal
- Body Style [AAQL]
- Rotary
- Body Width [ADAT]
- 1.201 Inches Nominal
- Capacitance Range In Picofarads [CTGN]
- +2.0 To 6.0 Single Section
- Mounting Facility Type And Quantity [AXHR]
- 2 Bracket
- Nonderated Voltage Rating And Type [CTGP]
- 500.0 Dc Continuous Single Section
- Inclosure Type [AKNA]
- Encased
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.149 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug
DLA Procurement Analysis 5910-00-128-7764
Management Data 5910-00-128-7764
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5910-00-128-7764
Freight Information 5910-00-128-7764
5910-00-128-7764 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061400. A Sub NMFC of X. It has a NMFC Description of CONDENSERS/PARTS NOI/CAPACITORS. 5910-00-128-7764 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34450 which rates the freight between FCL and LCL. 5910-00-128-7764 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5910-00-128-7764 is not classified as a special type of cargo when transported by water. 5910-00-128-7764 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5910-00-128-7764
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- --
- Special requirements
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
Contracting Technical Data File (CTDF) 5910-00-128-7764 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
