5905-01-660-1610
Thermal Resistor
5905016601610 016601610 NTCALUGE2C90169
A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL. View more Thermal Resistor
May 2023
1
Marketplace 5905-01-660-1610
Request a Quotation from participating marketplace vendors
Related Documents 5905-01-660-1610 1+ Documents (More...)
Updated Every Day 5905-01-660-1610 RQST NE Related Documents 5905-01-660-1610 1+ Documents ( More...
Every Day 5905-01-660-1610 RQST NE Related Documents 5905-01-660-1610 1+ Documents ( More...
Restrictions 5905-01-660-1610
5905-01-660-1610 is a Thermal Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-01-660-1610
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-660-1610
- US Navy (N9BN)
- Effective Date:
- 1 Jan 2017
- Supplementary Collaborators:
- KE
Approved Sources 5905-01-660-1610
- Part Number
- Manufacturer
- Status
- NTCALUGE2C90169
- Manufacturer
- 56DR0 - Vishay Americas (Active)
- Primary Buy
- Primary Buy
- NTCALUGE2C90169
- 12868 - Behlman Electronics, Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5905-01-660-1610
- Characteristic
- Specifications
- FIIG
- Specifications
- A086A0
- Body Length [ADAQ]
- 16.26 Millimeters Nominal
- Body Outside Diameter [ADAR]
- 7.14 Millimeters Nominal
- Body Width [ADAT]
- 1.0116 Millimeters Nominal
- Features Provided [CBBL]
- Rohs Directive Compliance
- Maximum Operating Temp [AEHZ]
- 150.0 Deg Celsius
- Maximum Power Dissipation Rating [AEHX]
- 23.0 Milliwatts
- Part Name Assigned By Controlling Agency [CXCY]
- Ntc Thermistor, Standard Lug Sensor
- Zero Power Resistance [CQWD]
- 10.0 Kilohms
- Inclosure Type [AKNA]
- Encased
- Reliability Indicator [AARG]
- Not Established
- Overall Diameter [ADAV]
- 7.14 Millimeters Nominal
- Overall Length [ABHP]
- 38.1 Millimeters Nominal
- Thermal Time Constant In Seconds [AEJA]
- 7.5
- Unthreaded Mounting Hole Diameter [AEBV]
- 3.68 Millimeters Nominal
- Zero Power Resistance Tolerance In Percent At Reference Temp [CRQJ]
- -5.0 To 5.0

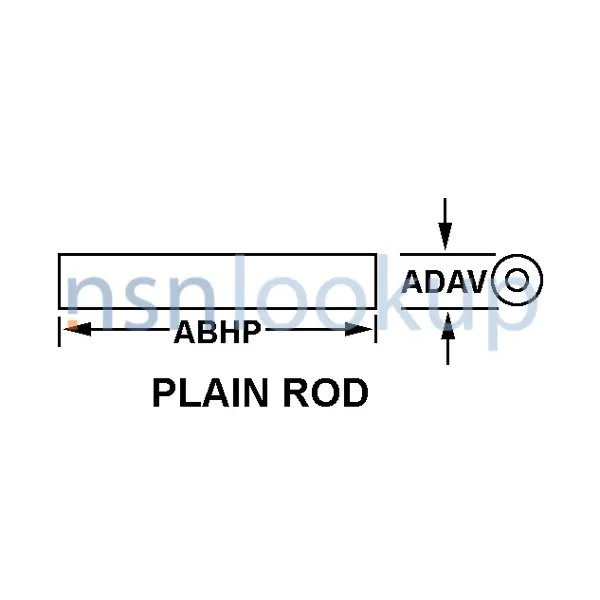

- Style Designator [STYL]
- Plain Rod
- Terminal Type And Quantity [TTQY]
- 1 Bonding Pad And 2 Wire Lead
DLA Procurement Analysis 5905-01-660-1610
Management Data 5905-01-660-1610
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5905-01-660-1610
Freight Information 5905-01-660-1610
5905-01-660-1610 has freight characteristics.. 5905-01-660-1610 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Contracting Technical Data File (CTDF) 5905-01-660-1610 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
