5905-01-650-8924

Film Fixed Resistor

5905016508924 016508924 CHP1/8-100-0R5-F CHP1/8-100-0R5-F-7

A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors. View more Film Fixed Resistor

5905-01-650-8924 RESISTOR,FIXED,FILM 5905016508924 016508924

Managed by United States
NSN Created on 18 Dec 2015
Data Last Changed
November 2023
NATO Update Count
1
NATO Data Quality

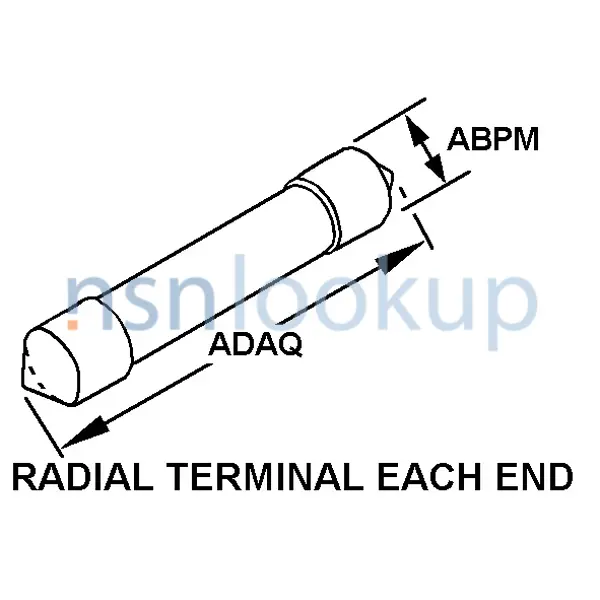

STYL Style 65 for 5905-01-650-8924 1/1
NSN 5905-01-650-8924 (Identification) 1/1

5905-01-650-8924 Stock and Availability Marketplace 5905-01-650-8924

Need Help?
Request a Quotation from participating marketplace vendors
FedMallFedMall.mil Updated Every 15 Minutes
5905-01-650-8924 BUY NE FedMallFedMall.mil
eBay Updated Every Day
5905-01-650-8924 RQST NE eBay
eBay Updated Every Day
5905-01-650-8924 RQST eBay
Amazon Updated Every Day
5905-01-650-8924 RQST NE Amazon

5905-01-650-8924 Related Documents Related Documents 5905-01-650-8924 4+ Documents (More...)

CHP1/8-100-0R5-F CHP1/8-100-0R5-F-7 A resistor whose ohmic value cannot be adjusted or varied.
BUY NE FedMall Updated Every Day 5905-01-650-8924 RQST NE Updated Every Day 5905-01-650-8924 RQST
Updated Every Day 5905-01-650-8924 RQST NE Related Documents 5905-01-650-8924 4+ Documents ( More...
Documents ( More... ) https//www.nsnlookup.com https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-01-650-8924
Film Fixed Resistor 5905016508924 016508924 Upgrade your Account Upgrade 5905-01-650-8924Film Fixed
Resistor5905016508924 016508924 CHP1/8-100-0R5 -F CHP1/8-100-0R5-F-7 A resistor whose ohmic value cannot
FB1613620R5-B-P 29990 - American Technical Ceramics Corp https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-01-650-8924
Film Fixed Resistor 5905016508924 016508924 Upgrade your Account Upgrade 5905-01-650-8924Film Fixed
Resistor5905016508924 016508924 CHP1/8-100-0R5 -F CHP1/8-100-0R5-F-7 A resistor whose ohmic value cannot
8924 Part NumberManufacturerStatusCHP1/8-100-0R5 https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-01-650-8924
Film Fixed Resistor 5905016508924 016508924 Upgrade your Account Upgrade 5905-01-650-8924Film Fixed
Resistor5905016508924 016508924 CHP1/8-100-0R5 -F CHP1/8-100-0R5-F-7 A resistor whose ohmic value cannot

5905-01-650-8924 Demil Restrictions 5905-01-650-8924

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: B | ADPEC: 0

5905-01-650-8924 is a Film Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.

5905-01-650-8924 HTS and ScheduleB Import and Export 5905-01-650-8924

5905-01-650-8924 End Users End Users 5905-01-650-8924

US Navy (N9BN)
Effective Date:
1 Dec 2015
Supplementary Collaborators:
KE

5905-01-650-8924 Manufacturers Approved Sources 5905-01-650-8924

5905-01-650-8924 Technical Data Datasheet 5905-01-650-8924

Characteristic
Specifications
FIIG
A001A0
Electrical Resistance [AAPP]
0.5 Ohms
Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
70.0
Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
150.0
Body Diameter [ABPM]
0.057 Inches Nominal
Body Length [ADAQ]
0.128 Inches Nominal
End Item Identification [AGAV]
V-22 Aircraft
Inclosure Method [AAQZ]
Encased
Power Dissipation Rating In Watts [AEFB]
0.25 Free Air
Resistance Tolerance In Percent [AAPQ]
-1.0 To 1.0
Reliability Indicator [AARG]
Not Established
Part Name Assigned By Controlling Agency [CXCY]
Resistor, Fixed, Film
Style Designator [STYL]
Radial Terminal Each End
Terminal Type [AARB]
Tapered Ferrule

5905-01-650-8924 Weapon Systems (WSDC) Weapon Systems (WSDC) 5905-01-650-8924

5905-01-650-8924 Stock, Inventory and Procurement DLA Procurement Analysis 5905-01-650-8924

Last Stock Position:
12 In Stock
DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

5905-01-650-8924 Management Data Management Data 5905-01-650-8924

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Jul 2023
Department of the Navy (DN)
EA
Subscribe
1
Jun 2023
Defense Logistics Agency (DS)
EA
Subscribe
1
Oct 2022
Defense Logistics Agency (DS)
EA
Subscribe
1
Oct 2021
Department of the Navy (DN)
EA
Subscribe
1
Oct 2020
Department of the Navy (DN)
EA
Subscribe
1
Feb 2020
Department of the Navy (DN)
EA
Subscribe
1

Navy Navy

Cognizance:
9B
Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

5905-01-650-8924 Related Items NATO Stock Numbers Related to 5905-01-650-8924

5905-01-650-8924 Freight Data Freight Information 5905-01-650-8924

5905-01-650-8924 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-01-650-8924 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-01-650-8924 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-01-650-8924 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5905-01-650-8924 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

5905-01-650-8924 Procurement History Procurement History 5905-01-650-8924 1 Records

Contract
Date
CAGE
Quantity
Net Price
Std Price
SPE7M516M4944
02 Mar 2016
Subscribe
164
Subscribe
Subscribe

5905-01-650-8924 Contracting Technical Data File (CTDF) Contracting Technical Data File (CTDF) 5905-01-650-8924 October 2021

Criticality and Quality

Critical Item Code:
X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):
F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
