5905-01-613-2994
Composition Fixed Resistor
5905016132994 016132994 T2530C302K-DS
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of a mixture of carbon, an insulating material, and suitable binders, either molded together or applied as a thin layer of conducting material on an insulated form. The opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the item itself. See also ATTENUATOR, FIXED; RESISTOR, FIXED, FILM; and RESISTOR, THERMAL. Excludes SUPPRESSOR, IGNITION INTERFERENCE. View more Composition Fixed Resistor
November 2023
2
Marketplace 5905-01-613-2994
Request a Quotation from participating marketplace vendors
Related Documents 5905-01-613-2994 1+ Documents (More...)
Updated Every Day 5905-01-613-2994 RQST NE Related Documents 5905-01-613-2994 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-01-613-2994 Composition Fixed Resistor 5905016132994
Restrictions 5905-01-613-2994
5905-01-613-2994 is a Composition Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5905-01-613-2994
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-613-2994
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2012
- Supplementary Collaborators:
- HD
Approved Sources 5905-01-613-2994
- Part Number
- Manufacturer
- Status
- T2530C302K-DS
- Manufacturer
- 1DFQ0 - Hvr Advanced Power Components, Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5905-01-613-2994
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 3.0 Kilohms
- Resistance Tolerance In Percent [AAPQ]
- -10.0 To 10.0
- Power Dissipation Rating In Watts [AEFB]
- 100.0 Free Air
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 50.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 200.0

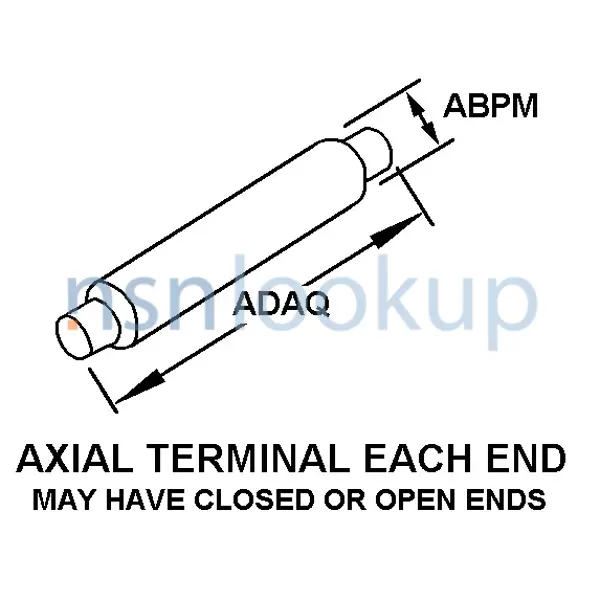

- Style Designator [STYL]
- Axial Terminal Each End
- Body Diameter [ABPM]
- 25.4 Millimeters Nominal
- Body Length [ADAQ]
- 300.0 Millimeters Nominal
- Mounting Bushing Diameter [AFYE]
- 25.4 Millimeters Nominal
- Terminal Type [AARB]
- Ferrule
- End Item Identification [AGAV]
- Frame And Bod
Weapon Systems (WSDC) 5905-01-613-2994
DLA Procurement Analysis 5905-01-613-2994
- Last Stock Position:
- 13 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5905-01-613-2994
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5905-01-613-2994
Freight Information 5905-01-613-2994
5905-01-613-2994 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-01-613-2994 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-01-613-2994 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-01-613-2994 is not classified as a special type of cargo when transported by water. 5905-01-613-2994 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
