5905-01-537-3185
Thermal Resistor
5905015373185 015373185 7104892-1 709SZ124-01
A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL. View more Thermal Resistor
November 2023
7
Marketplace 5905-01-537-3185
Request a Quotation from participating marketplace vendors
Related Documents 5905-01-537-3185 1+ Documents (More...)
RESISTOR,THERMAL 2 EA NS Request Quotation FedMall Updated Every 15 Minutes 5905-01-537-3185 BUY
NE FedMall Updated Every Day 5905-01-537-3185 RQST NE Updated Every Day 5905-01-537-3185 RQST Updated
Restrictions 5905-01-537-3185
5905-01-537-3185 is a Thermal Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5905-01-537-3185
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-537-3185
- US Navy (N9BN)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5905-01-537-3185
- Part Number
- Manufacturer
- Status
- 7104892-1
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 709SZ124-01
- 51398 - Atrenne Computing Solutions, Llc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5905-01-537-3185
- Characteristic
- Specifications
- FIIG
- Specifications
- A086A0

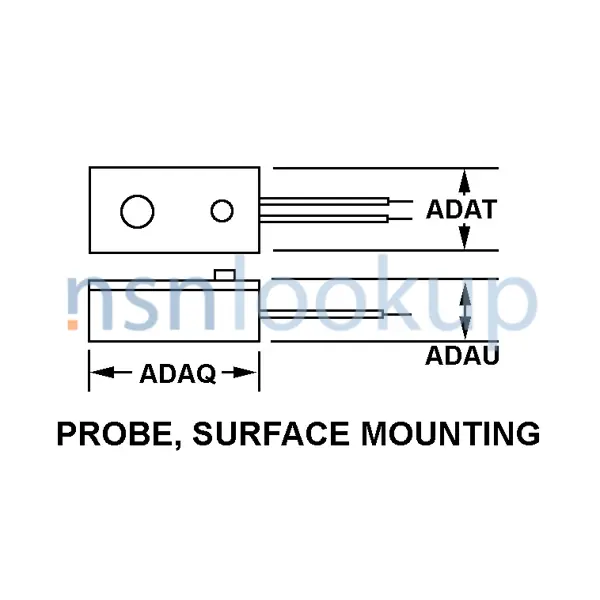

- Style Designator [STYL]
- Probe, Surface Mounting
- Body Length [ADAQ]
- 1.000 Inches Nominal
- Body Width [ADAT]
- 1.000 Inches Nominal
- Body Height [ADAU]
- 0.160 Inches Nominal
- Mounting Facility Screw Thread Series Designator [AKEJ]
- Unc
- Mounting Facility Nominal Screw Thread Diameter [CRYY]
- 0.138 Inches
- Mounting Thread Quantity [CGGK]
- 32 Per Inch
- Mounting Thread Tolerance Class [CWMS]
- 2A External
- Distance Between Mounting Facility Centers [AEJN]
- 0.601 Inches Nominal
- Inclosure Type [AKNA]
- Encapsulated
- Terminal Type And Quantity [TTQY]
- 3 Pin
- Reliability Indicator [AARG]
- Not Established
- Special Features [FEAT]
- Consists Of Z-Shaped Bracket (0.090 Thk Al Alloy 5052-H32 Iaw Qq-A-258/8 With Chem Film, Clear Chromate Iaw Mil-C-5541, Cl 3 Finish; Screws And Nuts - 300 Series Cres, Passivated Iaw Ams 2700; Has Brass Contacts With 20 Mil Tin Over 10 Mil Copper Finish; 3 Position Friction Lock Straightconnector Header (5935-01-016-86660, Nylon ; Printed Wiring Board (9349424-01 / 53711) Is Fastened To One Leg Of Bracket With Two .112-40Unc X .312 Lg Pan Head Screws; This Leg Is Approx. 2.00 In, Middle Section Is 1.00 In High, Other Leg Is 0.600 In And Has The 2 Mounting Screws Described In Mrcs.
- Supplementary Features [SUPP]
- Connector Interfacing: Pin 1 - Vcc - 5Vdc, Pin 2 - Temp Sense Output, Pin 3 - Ground; Electrical Characteristics: Dc Input Voltage 5Vdc, Dc Current 180 Microamps Max, Temp Sense Temp Range: M40 To P125 Deg. C, Temp Sense Output: 100 Millivolts At -40 Deg C, 1.75 Volts At 125 Deg C, Temp Semse Output Linearity: 10 Mv Per Degree C, Temp Sense Output Accuracy: +/-20 At 25 Deg C, Less Than Or Equal To +/-3 C At 0 Deg C And 55 Deg C
- End Item Identification [AGAV]
- Vertical Launching System; Ordalt 70019, Mk41 Mod0, Vls, Acim, Reprogrammed Cca
- Part Name Assigned By Controlling Agency [CXCY]
- Inavy: Snsr Assy, Tem A4-A5; Mfr: Temp Sensor Assy
Weapon Systems (WSDC) 5905-01-537-3185
DLA Procurement Analysis 5905-01-537-3185
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5905-01-537-3185
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5905-01-537-3185
Freight Information 5905-01-537-3185
5905-01-537-3185 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-01-537-3185 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-01-537-3185 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-01-537-3185 is not classified as a special type of cargo when transported by water. 5905-01-537-3185 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-01-537-3185
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- --
- Special requirements
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5905-01-537-3185 1 Records
Contracting Technical Data File (CTDF) 5905-01-537-3185 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
