5905-01-413-2905
Film Fixed Resistor Network
5905014132905 014132905 717787-2 313616
An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of a thin layer of conductive material deposited on or fused to an insulating base, usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED. View more Film Fixed Resistor Network
May 2023
1
Marketplace 5905-01-413-2905
Request a Quotation from participating marketplace vendors
Related Documents 5905-01-413-2905 5+ Documents (More...)

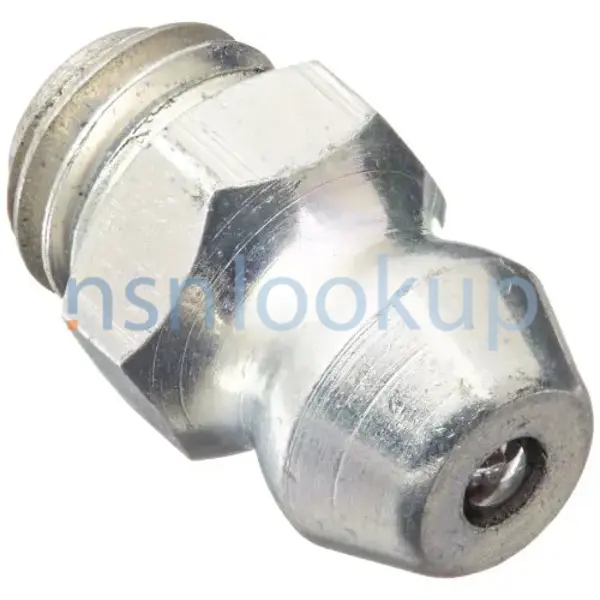

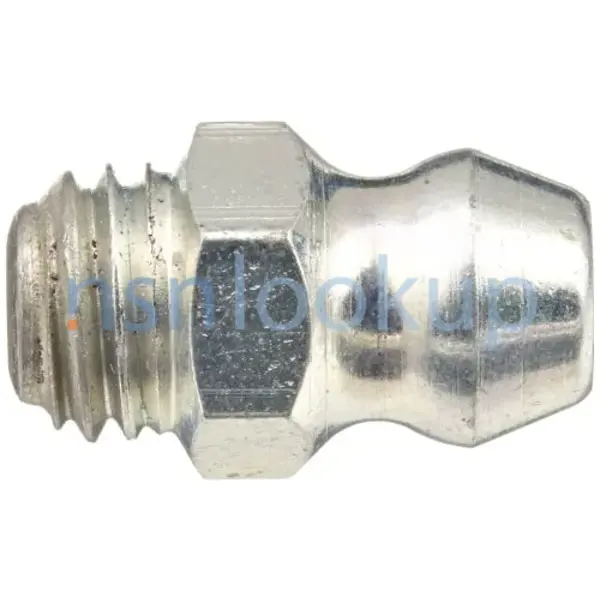

Photo 1/3 5905-01-413-2905 Photo 2/3 5905-01-413-2905 Photo 3/3 - - - 1.
FedMall Updated Every Day 5905-01-413-2905 RQST NE Updated Every Day 5905-01-413-2905 RQST Updated Every
web browser . 5935-99-972-8208Electrical Connector Backshell5935999728208 999728208 71-72-0827-00 313616
CA 4 EA NS Request Quotation Subscribe to View Vendor Details... 313616 ADAPTER,DIFFUSER CA 1 EA NS
Film Fixed Resistor Network 5905014132905 your Account Upgrade 5905-01-413-2905Film Fixed Resistor
Network5905014132905 014132905 717787-2 313616 CA 4 EA NS Request Quotation Subscribe to View Vendor
CA 4 EA NS Request Quotation Subscribe to View Vendor Details... 313616 ADAPTER,DIFFUSER CA 1 EA NS
CA 4 EA NS Request Quotation Subscribe to View Vendor Details... 313616 ADAPTER,DIFFUSER CA 1 EA NS
$1 a day Upgrade your Account Upgrade 5962-01-461-9968Memory Microcircuit5962014619968 014619968 313616
$1 a day Upgrade your Account Upgrade 5962-01-461-9968Memory Microcircuit5962014619968 014619968 313616
Restrictions 5905-01-413-2905
5905-01-413-2905 is a Film Fixed Resistor Network that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 5905-01-413-2905
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-413-2905
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDJB
Approved Sources 5905-01-413-2905
- Part Number
- Manufacturer
- Status
- 717787-2
- Manufacturer
- 05869 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 313616
- 18612 - Vishay Intertechnology, Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5905-01-413-2905
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 18.470 Kilohms
- Electrical Resistance [AAPP]
- 1.500 Kilohms
- Electrical Resistance [AAPP]
- 10.000 Kilohms
- Electrical Resistance [AAPP]
- 14.520 Kilohms
- Electrical Resistance [AAPP]
- 475.000 Ohms
- Electrical Resistance [AAPP]
- 49.850 Kilohms
- Electrical Resistance [AAPP]
- 7.866 Kilohms
- Electrical Resistance [AAPP]
- 29.050 Kilohms
- Electrical Resistance [AAPP]
- 4.640 Kilohms
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 70.0
- Identical Value Resistor Quantity [CQRD]
- 1 5Th Intermediate Resistance Value
- Identical Value Resistor Quantity [CQRD]
- 1 6Th Intermediate Resistance Value
- Identical Value Resistor Quantity [CQRD]
- 1 Highest Resistance Value
- Identical Value Resistor Quantity [CQRD]
- 1 1St Intermediate Resistance Value
- Identical Value Resistor Quantity [CQRD]
- 1 2Nd Intermediate Resistance Value
- Identical Value Resistor Quantity [CQRD]
- 1 3Rd Intermediate Resistance Value
- Identical Value Resistor Quantity [CQRD]
- 1 Lowest Resistance Value
- Identical Value Resistor Quantity [CQRD]
- 2 4Th Intermediate Resistance Value
- Identical Value Resistor Quantity [CQRD]
- 2 7Th Intermediate Resistance Value
- Power Dissipation Rating In Watts [AEFB]
- 1.800 Total Network
- Resistance Tolerance In Percent [AAPQ]
- -0.100/+0.100
- Resistance Tolerance In Percent [AAPQ]
- -1.000/+1.000
- Temp Coefficient Of Resistance In Ppm Per Deg Celsius [AAPE]
- -5.0/+5.0
- Temp Range Of Temp Coefficient In Deg Celsius [AAQH]
- -55.0/+125.0
DLA Procurement Analysis 5905-01-413-2905
Management Data 5905-01-413-2905
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5905-01-413-2905
Freight Information 5905-01-413-2905
5905-01-413-2905 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-01-413-2905 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-01-413-2905 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-01-413-2905 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5905-01-413-2905 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-01-413-2905
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5905-01-413-2905 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
