5905-01-372-6537
Thermal Resistor
5905013726537 013726537 RT-9-1
A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL. View more Thermal Resistor
November 2023
7
Marketplace 5905-01-372-6537
Request a Quotation from participating marketplace vendors
Related Documents 5905-01-372-6537 1+ Documents (More...)
Request a Quotation from participating marketplace vendors Request Updated Every Day 5905-01-372-6537
RQST NE Updated Every Day 5905-01-372-6537 RQST Updated Every Day 5905-01-372-6537 RQST NE Related Documents
Restrictions 5905-01-372-6537
5905-01-372-6537 is a Thermal Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5905-01-372-6537
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-372-6537
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Poland (WP01)
- Effective Date:
- 1 Oct 2004
- Spain (YB01)
- Effective Date:
- 1 Jun 2003
- Portugal (ZP01)
- Effective Date:
- 1 Aug 1997
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5905-01-372-6537
- Part Number
- Manufacturer
- Status
- RT-9-1
- Manufacturer
- 80164 - Keithley Instruments, Llc (Obsolete)
- Original Design
- Original Design
Datasheet 5905-01-372-6537
- Characteristic
- Specifications
- FIIG
- Specifications
- A086A0
- Body Height [ADAU]
- 0.100 Inches Maximum
- Body Length [ADAQ]
- 0.380 Inches Nominal
- Body Width [ADAT]
- 0.200 Inches Maximum
- Zero Power Resistance [CQWD]
- 4.150 Kilohms
- Inclosure Type [AKNA]
- Encapsulated
- Reliability Indicator [AARG]
- Not Established
- Overall Length [ABHP]
- 4.380 Inches Nominal
- Zero Power Resistance Tolerance In Percent At Reference Temp [CRQJ]
- -10.0/+10.0

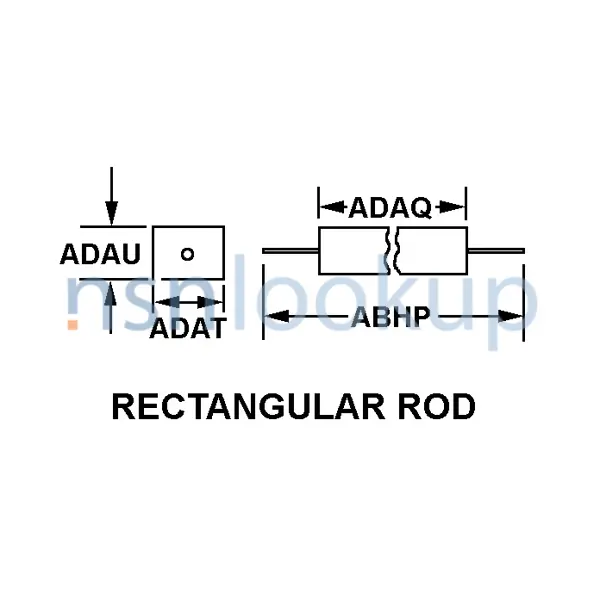

- Style Designator [STYL]
- Rectangular Rod
- Terminal Length [ABJT]
- 2.000 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 2 Wire Lead
Weapon Systems (WSDC) 5905-01-372-6537
DLA Procurement Analysis 5905-01-372-6537
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5905-01-372-6537
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5905-01-372-6537
Freight Information 5905-01-372-6537
5905-01-372-6537 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-01-372-6537 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-01-372-6537 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-01-372-6537 is not classified as a special type of cargo when transported by water. 5905-01-372-6537 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
