5905-01-335-8384
Motor Driven Variable Resistor
5905013358384 013358384 CB-1520-F U306236 CD-1520-F CB-1520-F-STYLE 1
A resistor, whose resistance value is controlled by an electric motor, which is coupled to the resistor shaft by a friction type clutch. View more Motor Driven Variable Resistor
November 2023
5
Marketplace 5905-01-335-8384
Request a Quotation from participating marketplace vendors
Related Documents 5905-01-335-8384 2+ Documents (More...)
BUY NE FedMall Updated Every Day 5905-01-335-8384 RQST NE Updated Every Day 5905-01-335-8384 RQST
) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-01-335-8384 Motor Driven Variable Resistor 5905013358384
Restrictions 5905-01-335-8384
5905-01-335-8384 is a Motor Driven Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Non-Critical Munitions List Item or a Non-Sensitive Commerce Control List Item and cannnot be in the possession of any party outside of the USA who is a not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 5905-01-335-8384
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-335-8384
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
Approved Sources 5905-01-335-8384
- Part Number
- Manufacturer
- Status
- CB-1520-F
- Manufacturer
- 61349 - Ametek, Inc. (Active)
- Primary Buy
- Primary Buy
- U306236
- 82686 - Transicoil Llc (Active)
- Secondary Buy
- Secondary Buy
- CD-1520-F
- 61349 - Ametek, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CB-1520-F-STYLE 1
- 61349 - Ametek, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-01-335-8384
- Characteristic
- Specifications
- FIIG
- Specifications
- A502H0
- Electrical Resistance Per Section [CQCC]
- 30.0 Kilohms Single Section
- End Item Identification [AGAV]
- 6685-01-244-1353 Indicator,Tempe
- Body Diameter [ABPM]
- 0.913 Inches Nominal
- Body Length [ADAQ]
- 1.381 Inches Maximum

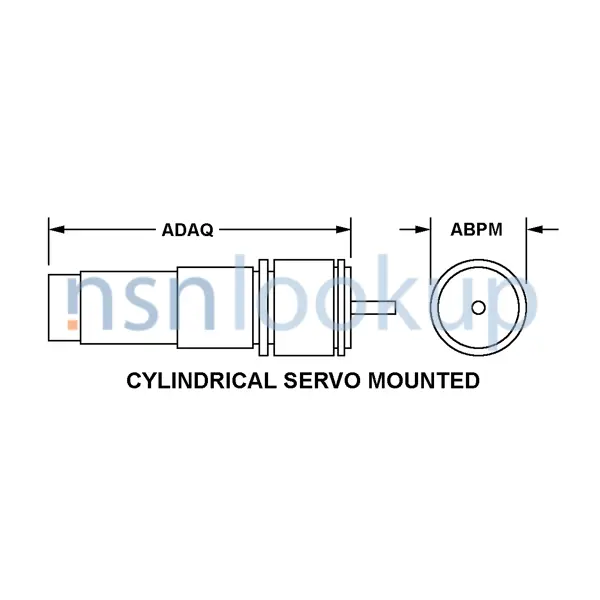

- Body Style [AAQL]
- Cylindrical Servo Mounted
- Function Characteristic Per Section [CSBX]
- Single Section Linear
- Function Conformity Per Section [CRGM]
- Single Section Independent Linearity
- Function Conformity Tolerance Per Section [CQFL]
- -0.25/+0.25 Single Section
- Motor Type [ANJN]
- Permanent Magnet
- Motor Voltage Type And Rating In Volts [CYEH]
- 7.0 Dc
- Mounting Facility Quantity [AKPV]
- 1
- Mounting Method [AXGY]
- Clamp Ring
- Section Quantity [AAPN]
- 1
- Resistance Element Type Per Section [CYEG]
- Single Section Conductive Plastic
- Resistance Tolerance Per Section In Percent [CRSS]
- -10.0/+10.0 Single Section
- Shaft Diameter [ABWV]
- 0.090 Inches Nominal
- Shaft Length [ABXF]
- 0.563 Inches Nominal
- Shaft Style [AEDX]
- Round
- Standard Taper Curve Per Section [CYEJ]
- Single Section Linear
- Terminal Type And Quantity [TTQY]
- 5 Wire Lead
Weapon Systems (WSDC) 5905-01-335-8384
DLA Procurement Analysis 5905-01-335-8384
- Last Stock Position:
- 11 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5905-01-335-8384
Similar Supply Items to 5905-01-335-8384
Freight Information 5905-01-335-8384
5905-01-335-8384 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-01-335-8384 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-01-335-8384 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-01-335-8384 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5905-01-335-8384 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-01-335-8384
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- 100
- Any Suitable Fiber Box
Procurement History 5905-01-335-8384 15 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M122P1405
- 17 Nov 2021
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPE7MC21V9468
- 05 Aug 2021
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M118P0341
- 17 Oct 2017
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M017VD364
- 29 Sep 2017
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M117VB849
- 31 Aug 2017
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M117VA916
- 28 Jul 2017
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M117V6757
- 13 Mar 2017
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M117V1190
- 07 Nov 2016
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M515V3279
- 29 May 2015
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPETA615M1098
- 22 May 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7MC15V5364
- 18 May 2015
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M115M5558
- 05 May 2015
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M114V1308
- 25 Oct 2013
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M113V4026
- 05 Jul 2013
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPM7M413M5417
- 14 May 2013
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5905-01-335-8384 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
