5905-01-290-5760

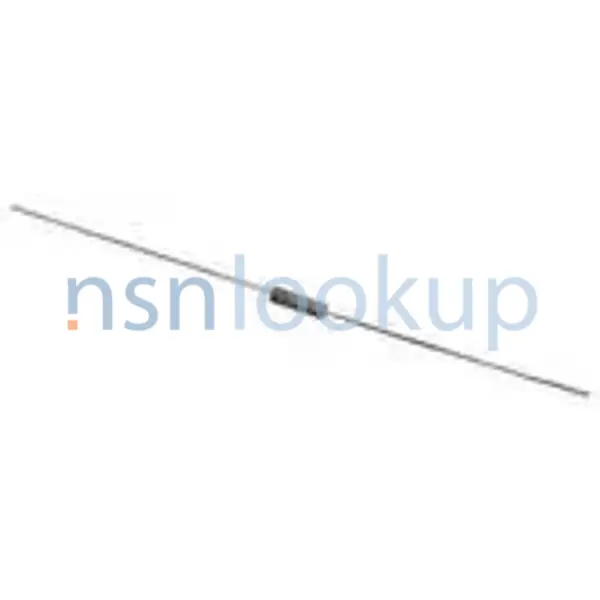

Wire Wound Fixed Resistor
5905012905760 012905760 MIL-R-39007/8 RWR82S1271FR
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. View more Wire Wound Fixed Resistor
May 2023
7
Marketplace 5905-01-290-5760
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5905-01-290-5760 5+ Documents (More...)
NE Updated Every Day 5905-01-290-5760 RQST Updated Every Day 5905-01-290-5760 RQST NE Related Documents
NE Updated Every Day 5905-01-290-5760 RQST Updated Every Day 5905-01-290-5760 RQST NE Related Documents
Wire Wound Fixed Resistor 5905012905760 NE Updated Every Day 5905-01-290-5760 RQST Updated Every
Day 5905-01-290-5760 RQST NE Related Documents 5905-01-290-5760 5+ Documents ( More... ) https//www.nsnlookup.com
/fsg-59/fsc-5905/us
-108-6111 Wire Wound Fixed Resistor 5905251086111 197-0477 5905-00-155-1393 5905-00-113-4985 5905-01-290-5760
-200-3908 Wire Wound Fixed Resistor 5905012003908 197-0477 5905-00-155-1393 5905-00-113-4985 5905-01-290-5760
/fsg-59/fsc-5905/us
fsc-5905/no 5905-25-108-6111 Wire Wound Fixed Resistor 5905251086111 155-1393 5905-00-113-4985 5905-01-290-5760
fsc-5905/us 5905-01-200-3908 Wire Wound Fixed Resistor 5905012003908 155-1393 5905-00-113-4985 5905-01-290-5760
Restrictions 5905-01-290-5760
5905-01-290-5760 is a Wire Wound Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-01-290-5760
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-290-5760
- MOE Rule:
- B471
- Effective Date:
- 1 Jan 2002
- MOE Rule:
- R47A
- Effective Date:
- 1 Mar 1995
Approved Sources 5905-01-290-5760
- Part Number
- Manufacturer
- Status
- RWR82S1271FR
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-R-39007/8
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5905-01-290-5760
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 1.270 Kilohms
- End Item Identification [AGAV]
- Next Generation Radar (Nexrad)
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 25.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 275.0
- Body Diameter [ABPM]
- 0.078 Inches Nominal
- Body Length [ADAQ]
- 0.512 Inches Nominal
- Inclosure Method [AAQZ]
- Encapsulated
- Power Dissipation Rating In Watts [AEFB]
- 1.500 Free Air
- Reliability Failure Rate Level In Percent [AARH]
- 0.010
- Reliability Indicator [AARG]
- Established
- Resistance Tolerance In Percent [AAPQ]
- -1.000/+1.000
- Special Features [FEAT]
- Nsn Restricted To Use By Nws Depot Team Only
- Style Designator [STYL]
- Axial Terminal Each End
- Temp Coefficient Of Resistance In Ppm Per Deg Celsius [AAPE]
- -20.0/+20.0
- Temp Range Of Temp Coefficient In Deg Celsius [AAQH]
- -55.0/+275.0
- Terminal Type [AARB]
- Wire Lead
- Test Data Document [TEST]
- 81349-Mil-R-39007 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
Management Data 5905-01-290-5760
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- May 2002
- National Weather Service (RA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- National Weather Service (RA)
- I
- R
- Refer To 47Tr Cleanup 0S2104a
- 47TR CLEANUP 0S2104A
- R
Similar Supply Items to 5905-01-290-5760
Freight Information 5905-01-290-5760
5905-01-290-5760 has freight characteristics.. 5905-01-290-5760 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
